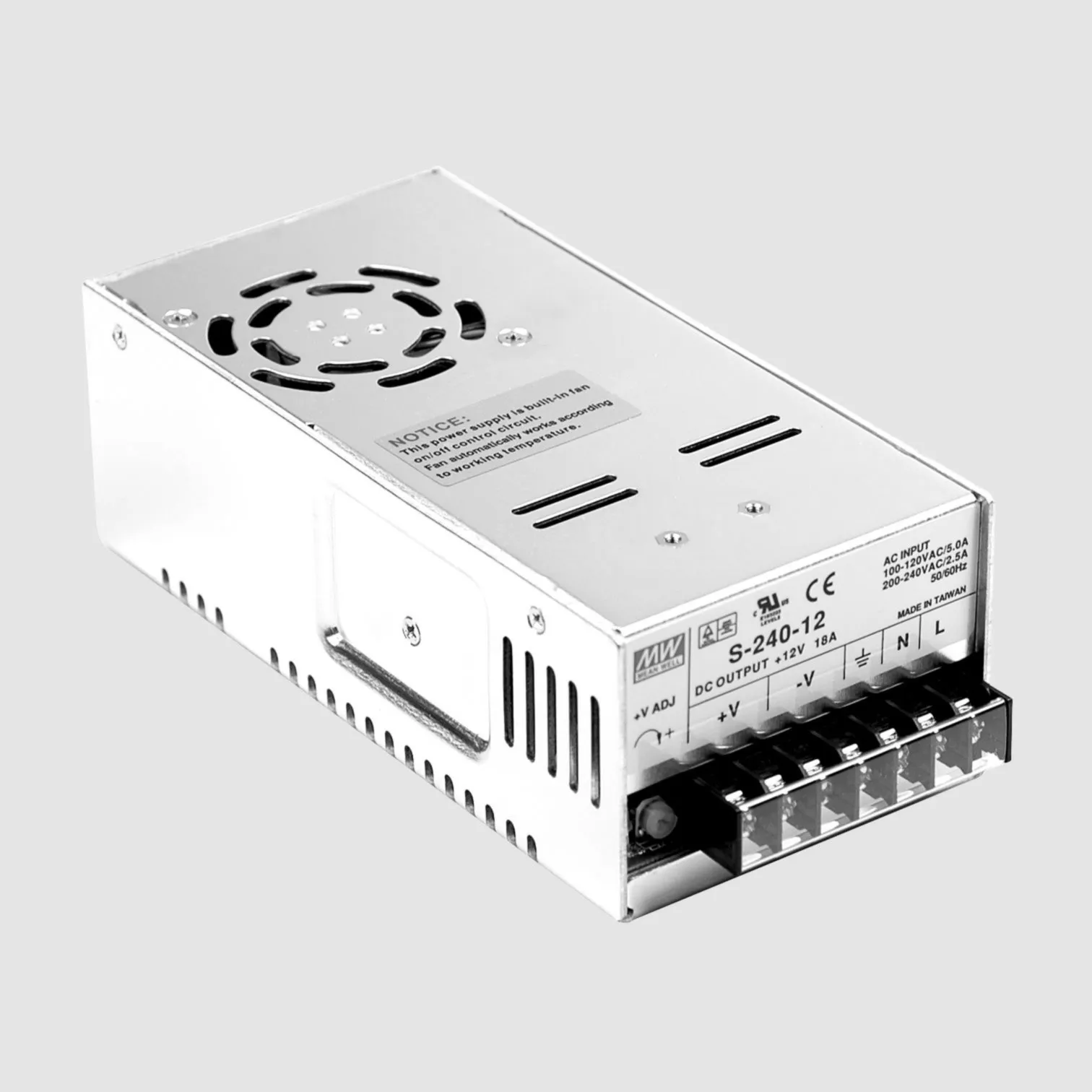

SPS Case 216W 12V/18A
Varenummer:
105-452
Varekode: SP-240-12
Vægt: 779 g
0 stk.
på lager
Gruppe:
L6345
MEANWELL Switching Power Supplies
Series: SP-240
Case, Single Output
Output: 225 to 240W
MEANWELL Switching Power Supplies
Series: SP-240
Case, Single Output
Output: 225 to 240W
| Features |
| Enclosed case, built-in fan, screw terminals Universal input Overload protection, current limiting, auto recovery Protections: short circuit/over load/over voltage Built-in active PFC function |
 |
| Technical Specifications |
| |
| Input Voltage: | 88...264V AC (47...63Hz) |
| 124...370V DC | |
| Input Inrush Current, Typ.: | 40A |
| Leakage Current, Max.: | 2mA |
| Output Voltage Adjustment: | ±10% |
| Over Load Protection: | 105...135% |
| Withstand Voltage | |
| I/P-O/P: | 3000V AC |
| I/P-FG: | 1500V AC |
| O/P-FG: | 500V AC |
| Operating Temperature: | -20...+70C |
| Weight: | 800g |
| I/P = Input, O/P = Output, FG = Frame Ground | |
| |
| Part Nr. | UA | IA | PA | DUA | URN | h |
| [V] | [A] | [W] | [%] | [mVp-p] | [%] | |
| SP-240-5 | 5 | 0...45 | 225 | 2 | 150 | 79 |
| SP-240-12 | 12 | 0...20 | 240 | 1 | 150 | 86 |
| SP-240-15 | 15 | 0...16 | 240 | 1 | 150 | 86 |
| SP-240-24 | 24 | 0...10 | 240 | 1 | 150 | 88 |
| SP-240-30 | 30 | 0...8 | 240 | 1 | 150 | 88 |
| SP-240-48 | 48 | 0...5 | 240 | 1 | 150 | 89 |
| UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency | ||||||
| ||||||
| Note |
| You will find installation material in product group L6911. |
|
| Labelling |
   |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.meanwell.com |
|
Inkl. moms
Kr. 600,00
- v/5 – Kr. 500,00
- v/10 – Kr. 450,00
