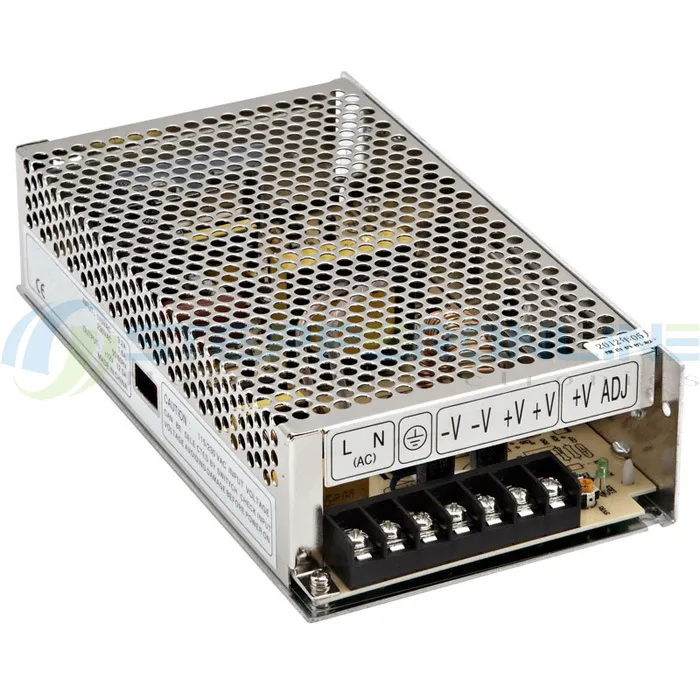

SPS Case 156W 24V/6,5A
Varenummer:
105-448
Varekode: S-150-24
Vægt: 843 g
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
Enclosed Switching AC-to-DC Power Supply
Output: 24 Volts @ 6.5 Amps
Features:
- AC input range selectable by switch
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- 100% full load burn-in test
- Fixed switching frequency at 25KHz
- 2-year warranty
| Specification | Value |
|---|---|
| Primary Output Voltage (VDC) | 24 |
| Output Current (A) | 6.5 |
| Maximum Output Power (W) | 156 |
| Family | S-150 |
| Input Voltage (VAC) | 85 to 264 |
| Input Frequency | 47 to 63 |
| Maximum Input Current (A) | 2 |
| Output Connector Type | Screw Terminal Block |
| Number of Outputs | 1 |
| Product Type | AC to DC Power Supply |
| Efficiency (%) | 73 |
| Minimum Isolation Voltage | 3000V |
| Operating Temperature-Min (Cel) | -10 |
| Operating Temperature-Max (Cel) | 60 |
| Length (inch) | 7 |
| Width (inch) | 4.3 |
| Height (inch) | 2 |
| Agency Approvals | UL/CUL/TUV/CE/CB |
| Color | Silver |
| Type | Auto Switching |
| Style | Enclosed |
Produktfiler
