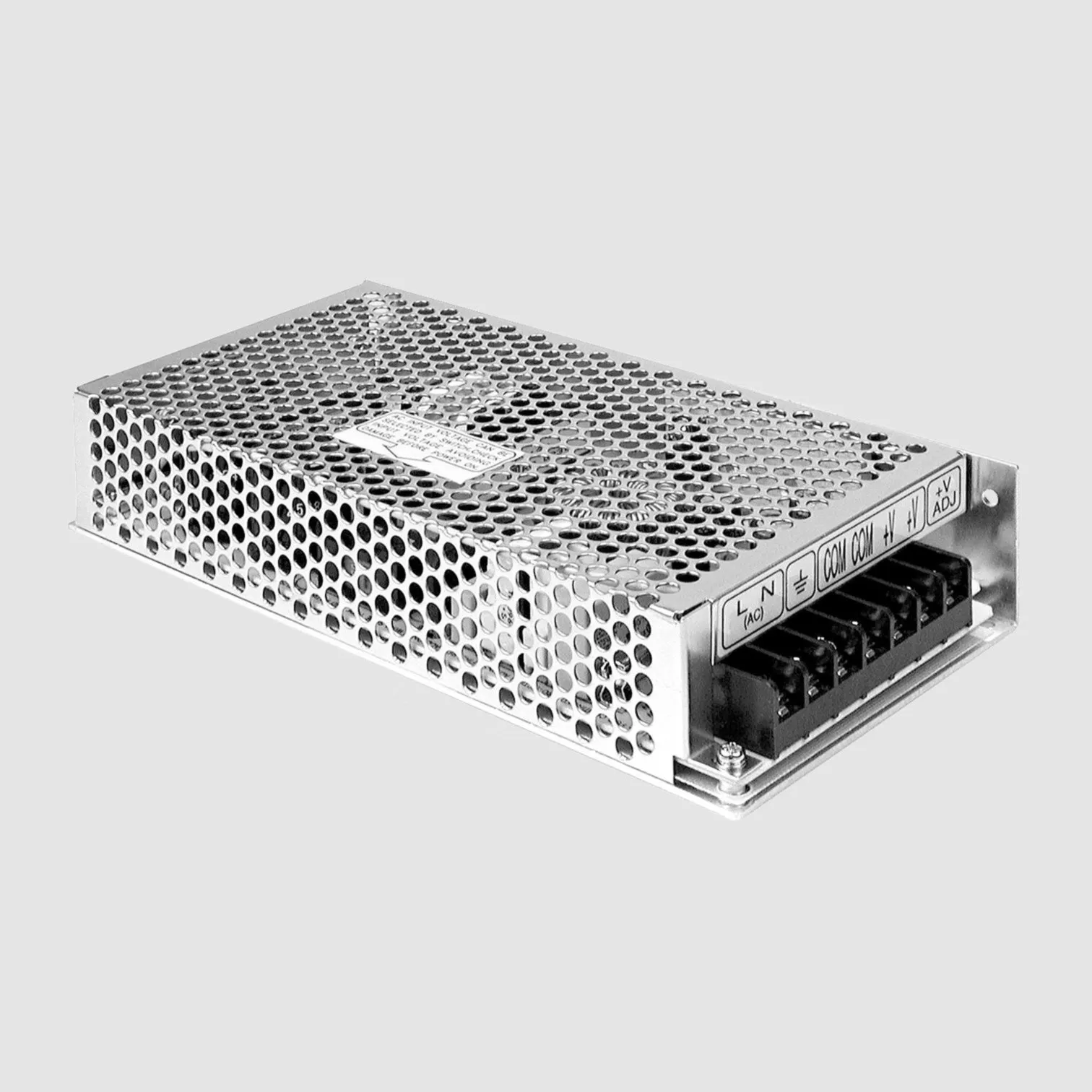

SPS Case 106W 48V/2,2A
Varenummer:
105-442
Varekode: S-100F-48
Vægt: 675 g
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
Gruppe:
L6241
MEANWELL Switching Power Supplies
Series: S-100F
Case, Single Output
Output: 100 to 108W
MEANWELL Switching Power Supplies
Series: S-100F
Case, Single Output
Output: 100 to 108W
| Features |
| Enclosed case, screw terminals AC input range 115V/230V selectable by switch Overload protection, pulsing hiccup shutdown, auto recovery Protections: short circuit/over load/over voltage |
 |
| Technical Specifications |
| |
| Input Voltage: | 88...132/176...264V AC (47...63Hz) |
| 248...370V DC | |
| Input Inrush Current, Max.: | 40A |
| Leakage Current, Max.: | 1mA |
| Output Voltage Adjustment: | ±10% |
| Over Load Protection: | 105...150% |
| Withstand Voltage | |
| I/P-O/P: | 3000V AC |
| I/P-FG: | 1500V AC |
| O/P-FG: | 500V AC |

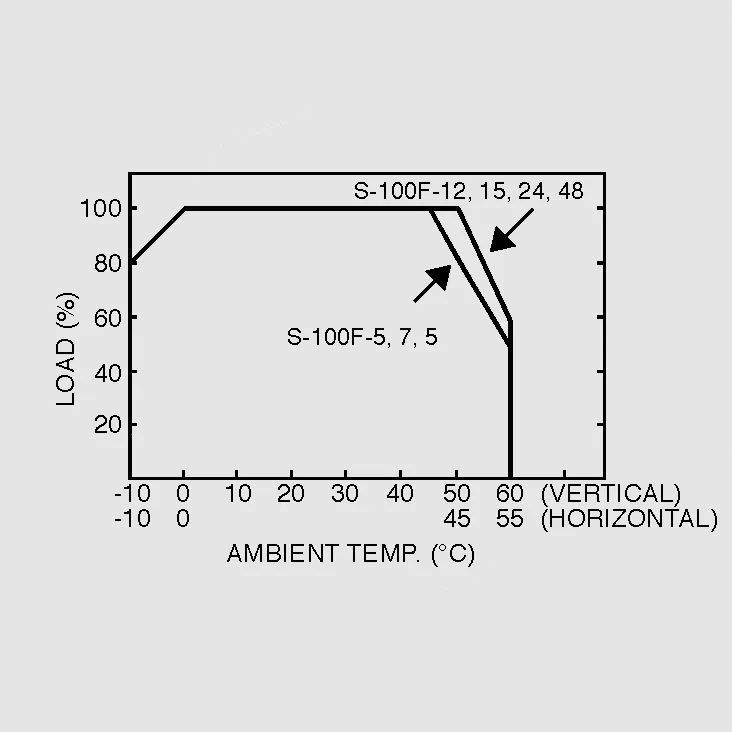

| Operating Temperature: | -10...+60C |
| Weight: | 650g |
| I/P = Input, O/P = Output, FG = Frame Ground | |
| |
| Part Nr. | UA | IA | PA | DUA | URN | h |
| [V] | [A] | [W] | [%] | [mVp-p] | [%] | |
| S-100F-5 | 5 | 0...20 | 100 | 2 | 100 | 76 |
| S-100F-7.5 | 7,5 | 0...13,5 | 101 | 1 | 125 | 78 |
| S-100F-12 | 12 | 0...8,5 | 102 | 1 | 125 | 80 |
| S-100F-15 | 15 | 0...6,7 | 100,5 | 1 | 125 | 81 |
| S-100F-24 | 24 | 0...4,5 | 108 | 1 | 150 | 83 |
| S-100F-48 | 48 | 0...2,2 | 105,6 | 1 | 150 | 84 |
| UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency | ||||||
| ||||||
| Note |
| This series corresponds to EN61000-3-2 Class A and may only be used in ranges with this standard. You will find installation material in product group L6911. |
|
| Labelling |
   |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.meanwell.com |
|
