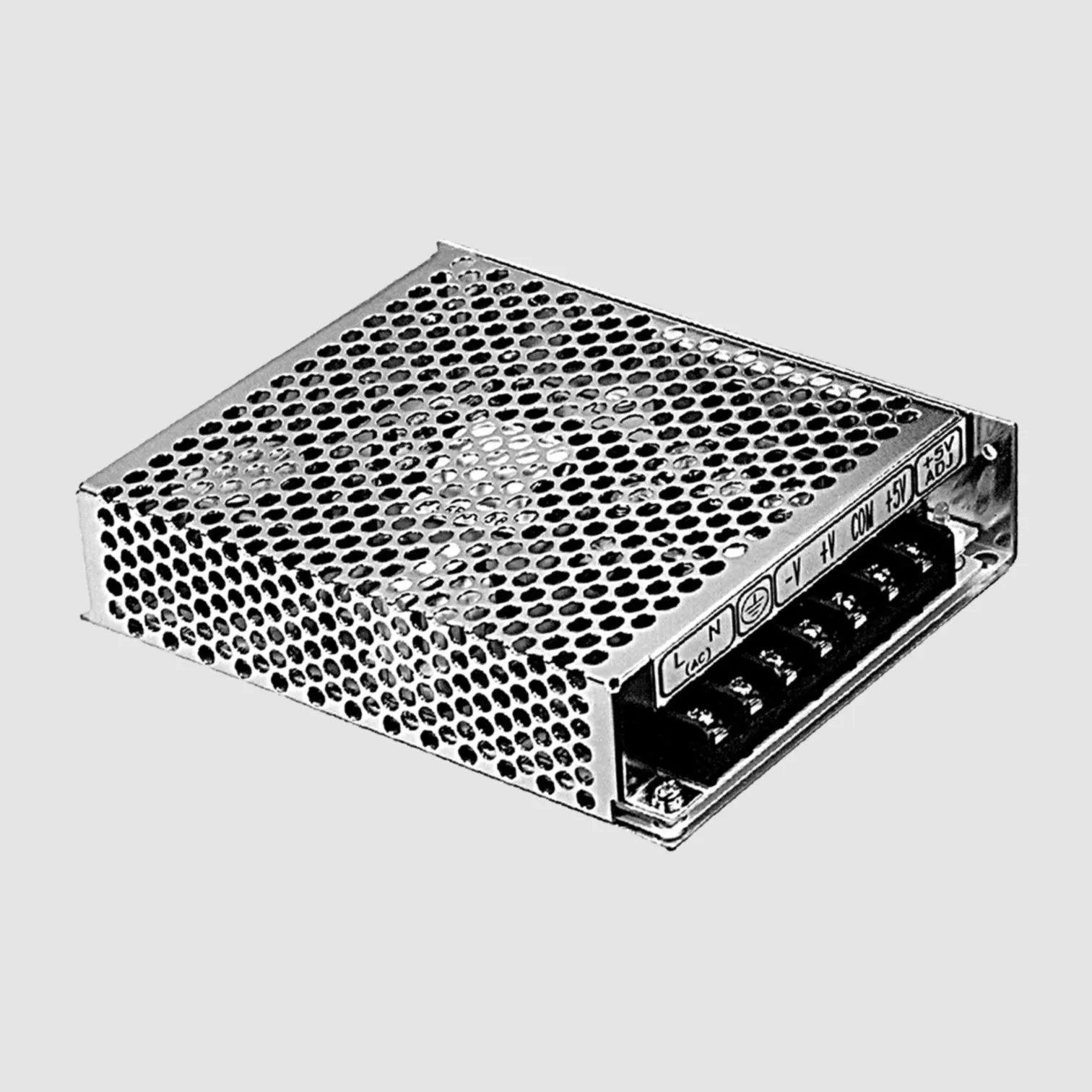

SPS Case 61W 5/12/-12V

Varenummer: 105-433
Varekode: T-60B
Vægt: 583 g
0 stk. på lager
Kontakt os for at få oplyst leveringstid
Vis lignende produkter i kategorien "Triple Output"
Gruppe: L6235
MEANWELL Switching Power Supplies
Series: T-60, IT-60
Case, Triple Output
Output: 57 to 62W
Features
Enclosed case, screw terminals
Universal input
Overload protection, pulsing hiccup shutdown, auto recovery
Protections: short circuit/over load/over voltage
IT-60: isolated outputs
Technical Specifications
Input Voltage:
85...264V AC (47...63Hz)
120...370V DC
Input Inrush Current, Max.:
40A
Leakage Current, Max.:
3,5mA
Output Voltage Adjustment:
+10/-5%
Over Load Protection
T-60:
105...150%
IT-60:
125...150%
Withstand Voltage
I/P-O/P:
3000V AC
I/P-FG:
1500V AC
O/P-FG:
500V AC
Operating Temperature:
-10...+60C
Weight:
550g
I/P = Input, O/P = Output, FG = Frame Ground

Part Nr.
UA
IA
PA1)
DUA
URN
h
 [V]
[A]
[W]
[%]
[mVp-p]
[%]
T-60A5
0,5...7
57,5
2
100
72
 12
0,2...3,5
 6
100

 -5
0...1
 6
100

T-60B5
0,5...7
61
2
100
72
 12
0,2...3,5
 6
100

 -12
0...1
 6
100

T-60C5
0,5...7
62,5
2
100
72
 15
0,2...3
 6
100

 -15
0...1
 6
100

IT-60D5
0,5...3
58,2
3
80
76
 12
0,1...1
 8
120

 24
0,2...2
 8
240

IT-60F5
0,5...3
58,2
3
80
76
 15
0,1...1
 8
150

 24
0,2...2
 8
240

UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency, 1) The Sum of the Power Used by the Individual Channels Must Not Exceed the Total Power Rating.
Note
You will find installation material in product group L6911.
Labelling

Terms of Delivery
Minimum order quantity: 1 PKU = 1 piece
Manufacturer

http://www.meanwell.com
Inkl. moms
Kr. 337,81
