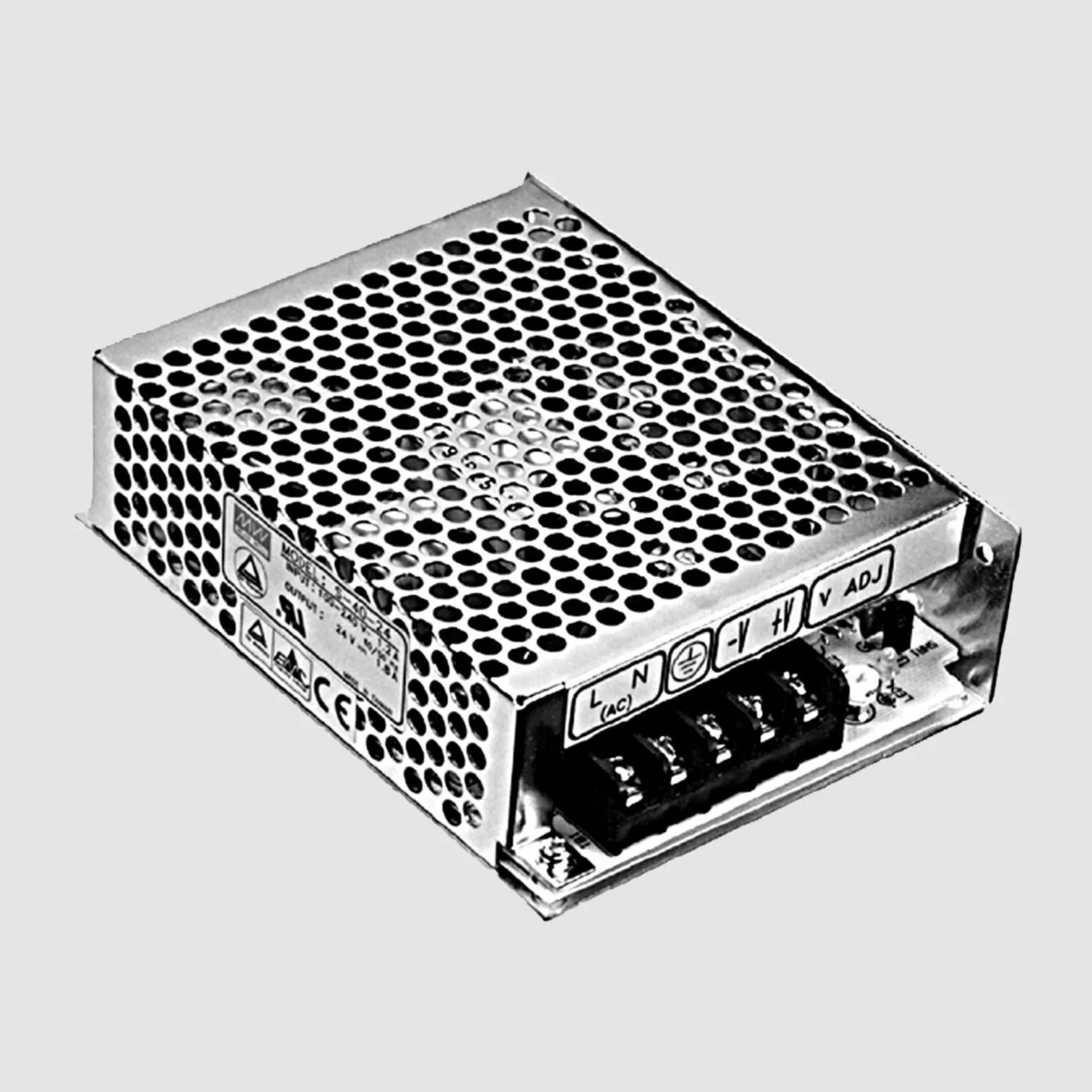

SPS Case 42W 15V/2,8A
Varenummer:
105-421
Varekode: S-40-15
Vægt: 466 g
0 stk.
på lager
Gruppe:
L6221
MEANWELL Switching Power Supplies
Series: S-40
Case, Single Output
Output: 40 to 43W
MEANWELL Switching Power Supplies
Series: S-40
Case, Single Output
Output: 40 to 43W
| Features |
| Enclosed case, screw terminals Universal input Overload protection, pulsing hiccup shutdown, auto recovery Protections: short circuit/over load/over voltage |
 |
| Technical Specifications |
| |
| Input Voltage: | 85...264V AC (47...63Hz) |
| 120...370V DC | |
| Input Inrush Current, Max.: | 50A |
| Leakage Current, Max.: | 1mA |
| Output Voltage Adjustment: | ±10% |
| Over Load Protection: | 105...150% |
| Withstand Voltage | |
| I/P-O/P: | 3000V AC |
| I/P-FG: | 1500V AC |
| O/P-FG: | 500V AC |
| Operating Temperature: | -10...+60C |
| Weight: | 440g |
| I/P = Input, O/P = Output, FG = Frame Ground | |
| |
| Part Nr. | UA | IA | PA | DUA | URN | h |
| [V] | [A] | [W] | [%] | [mVp-p] | [%] | |
| S-40-5 | 5 | 0...8 | 40 | 2 | 75 | 72 |
| S-40-12 | 12 | 0...3,5 | 42 | 1 | 100 | 76 |
| S-40-15 | 15 | 0...2,8 | 42 | 1 | 100 | 76 |
| S-40-24 | 24 | 0...1,8 | 43 | 1 | 100 | 78 |
| UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency | ||||||
| ||||||
| Note |
| You will find installation material in product group L6911. |
|
| Labelling |
   |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.meanwell.com |
|
Produktfiler
