SPS Class2 PFC 60W 20V/3A

Varenummer: 105-286
Varekode: PLN-60-20
Vægt: 542 g
0 stk. på lager
Ved bestilling nu, får vi dem hjem mandag d. 19/10
Vis lignende produkter i kategorien "For CV LED/Constant Voltage"
Gruppe: L4765
MEANWELL LED Switching Power Supplies
Series: PLN-60
Indoor and Outdoor Installations (IP64)
Output: 60 to 62W
Features
Universal input
Overload protection, current limiting, auto recovery
Protections: short circuit/over load/over voltage
IP64, for indoor and outdoor installations
Suitable for LED lighting and moving sign applications
UL1310 Class 2
Fixed output voltage
EN61000-3-2, Class C, EN55015, EN61347-1, EN61347-2-13
Technical Specifications
Input Voltage:
90...264V AC (47...63Hz)
127...370V DC
Input Inrush Current, Max.:
40A
Over Load Protection, max.:
130%
PLN-60-12:
95...110%
Withstand Voltage (I/P-O/P):
4250V DC

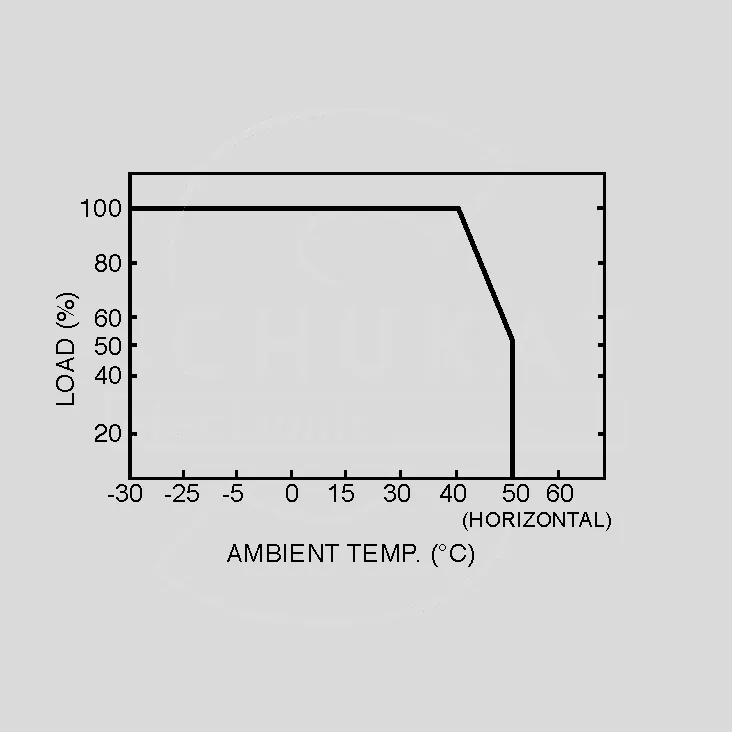

Operating Temperature:
-30...+50C
Weight:
500g
I/P = Input, O/P = Output

Part Nr.
UA
IA
PA
DUA
URN
h
 [V]
[A]
[W]
[%]
[Vp-p]
[%]
PLN-60-1212
0...5
60
10
2
83
PLN-60-1515
0...4
60
10
2,4
84,5
PLN-60-2020
0...3
60
10
1,8
86,5
PLN-60-2424
0...2,5
60
10
2,7
86,5
PLN-60-2727
0...2,3
62,1
10
2,7
87
PLN-60-3636
0...1,7
61
10
3,6
87
PLN-60-4848
0...1,3
62,5
10
4,6
88
UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Typ. Efficiency
Note
Suitable for indoor use and outdoor use without direct sunlight exposure.
You will find suitable High Power LED Modules starting at product group W1982.
Labelling
(only 48V), (except 48V),
Terms of Delivery
Minimum order quantity: 1 PKU = 1 piece
Manufacturer

http://www.meanwell.com
Inkl. moms
Kr. 500,00
  • v/10 – Kr. 375,00
  • v/25 – Kr. 350,00
  • v/100 – Kr. 250,00
