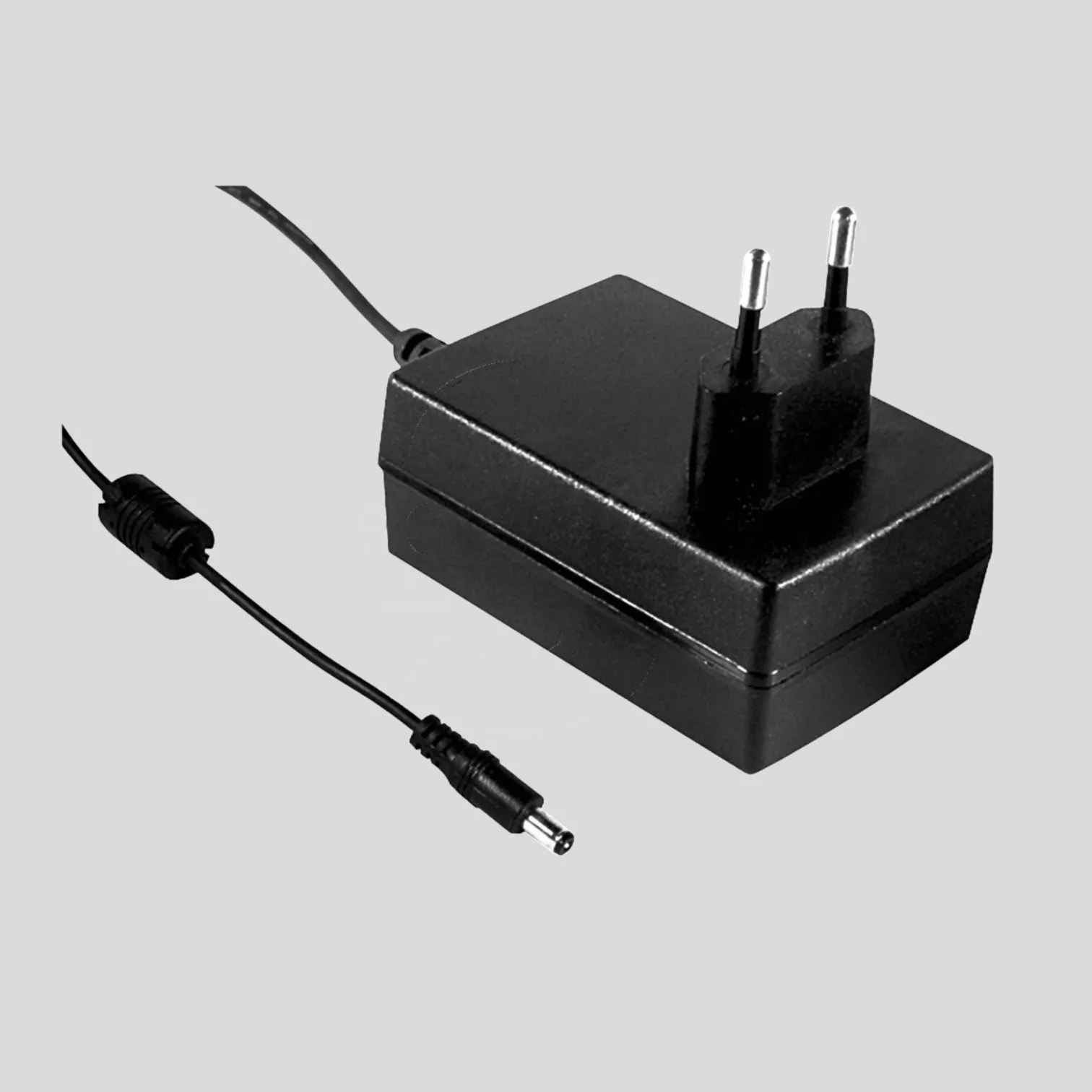

SPS Plug-in 15W 5V/3A (2,1/5,5 DC-stik)
Varenummer:
105-147
Varekode: GST18E05-P1J
Vægt: 215 g
2 stk.
på lager
| Features |
| • Plug-in switching power supply with europlug • Universal input • Overload protection, pulsing hiccup shutdown, auto recovery • Protections: short circuit/over load/over voltage • Insulation Class II • Low no load power consumption • Energy efficiency level VI (DOE) • Safety standards: EN 62368-1 • EMC standards: EN 55032 Class B and more • 3 years manufacturer warranty |
 |
| Technical Specifications |
|
|
| Input Voltage: | 85...264V AC (47...63Hz) |
| Input Inrush Current, Max.: | 65A |
| No Load Power Consumption, Max.: | 0,075W |
| Operating Temperature: | -30...+70°C |
| Cable Length | |
| 5...12V: | 1,2m |
| 15...48V: | 1,8m |
| Input Plug: | Euro |
| Output Plug, Coax: | 2,1x5,5mm |
| Aversage active efficiency | |
| for 5V: | >81,39% |
| for 5V/09/12/24/48: | >85,0% |
| Efficiency at low load, typ. (10%): | >81,6% |
| Weight: | 202g |
|
|
| Part Nr. | UA | IA | PA | DUA | URN | h |
| [V] | [A] | [W] | [%] | [mVp-p] | [%] | |
| GST18E05-P1J | 5 | 0...3 | 15 | 5 | 80 | 81 |
| GST18E07-P1J | 7,5 | 0...2 | 15 | 5 | 80 | 85 |
| GST18E09-P1J | 9 | 0...2 | 18 | 5 | 80 | 85 |
| GST18E12-P1J | 12 | 0...1,5 | 18 | 3 | 80 | 86 |
| GST18E15-P1J | 15 | 0...1,2 | 18 | 3 | 100 | 87 |
| GST18E18-P1J | 18 | 0...1 | 18 | 3 | 150 | 88 |
| GST18E24-P1J | 24 | 0...0,75 | 18 | 2 | 150 | 88 |
| GST18E28-P1J | 28 | 0...0,64 | 18 | 2 | 150 | 88,5 |
| GST18E48-P1J | 48 | 0...0,375 | 18 | 2 | 150 | 89 |
| UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency | ||||||
|
||||||
| Labelling |
  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.meanwell.com |
Inkl. moms
Kr. 158,00
- v/10 – Kr. 133,00
- v/25 – Kr. 121,00
