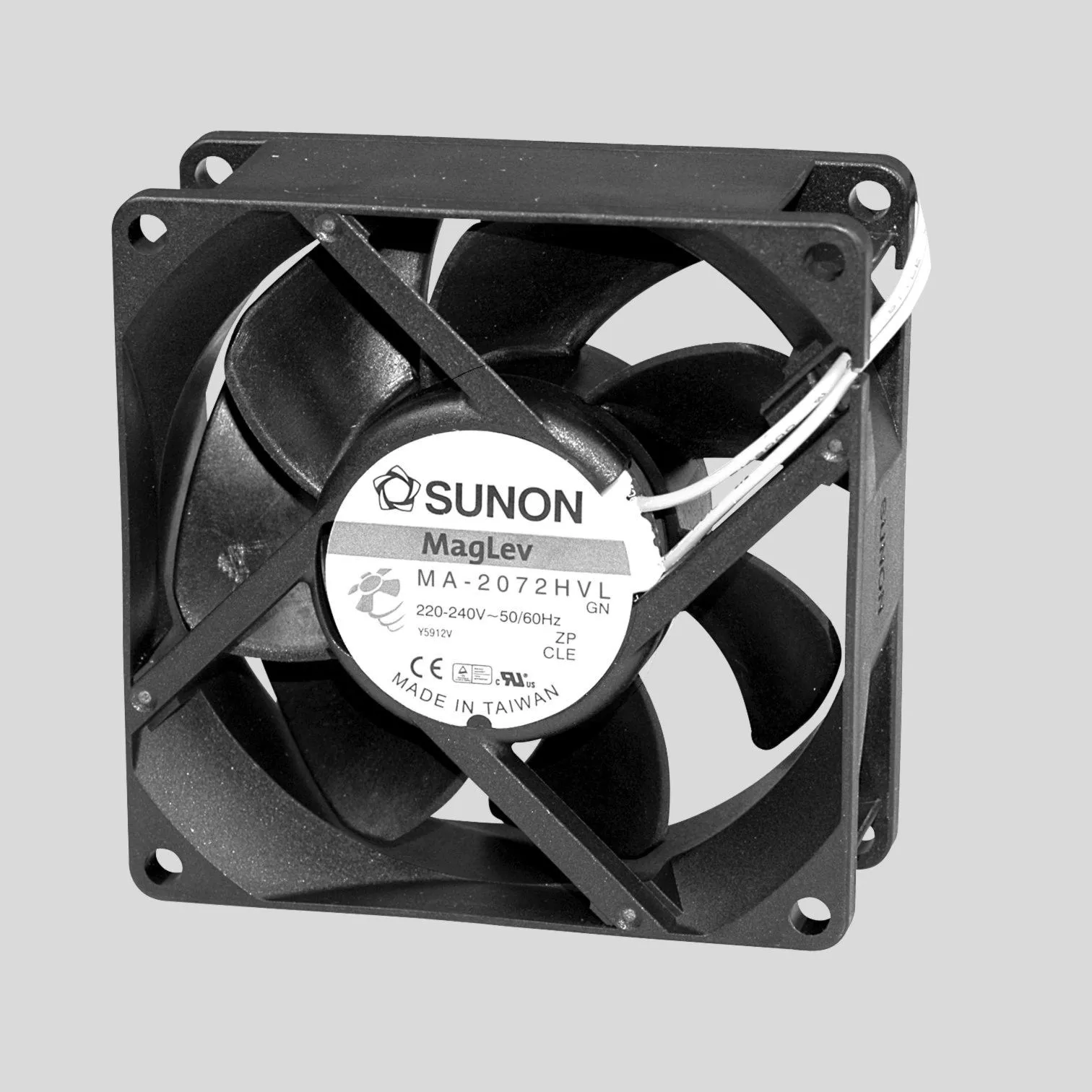

Fan 230V 70x25 V L 47,5m³/h 30dBA 4,3W
Varenummer:
105-081
Varekode: MA2072HVL
Vægt: 91 g
0 stk.
på lager
Gruppe:
K6735
SUNON AC Axial Fans
70x70x25mm
Series: MagLev-AC
SUNON AC Axial Fans
70x70x25mm
Series: MagLev-AC
| Design |
 | |
| Motor: | Brushless 4 Pole Motor |
| Impedance Protected | |
| Frame: | Thermoplastic PBT (UL94V-0) |
| Impeller: | Thermoplastic PBT (UL94V-0) |
| Lead Wire: | AWG24, 30cm, Stripped, Tinned |
| |
| Technical Specifications |
| |
| Rated Voltage | |
| 50Hz: | 220V |
| 60Hz: | 240V |
| Operating Voltage: | 150...250V |
| Dielectric Strength at 65% r. F.: | 1500V AC for 1 Min. |
| Insulation Resistance at 500V DC: | >10MW |
| Storage Temperature: | -40...+70C |
| Operating Temperature: | -10...+70C |
| |
| Part Nr. | Bearing | PAirflow | Noise | I | Pel | Speed |
| [m3/h] | [dBA] | [A] | [W] | [U/min] | ||
| MA2072HVL | Vapo | 47,56 | 30 | 0,100 | 4,3 | 3800 |
| All Specs are Valid for 220...240V AC, 50Hz; PAirflow = Airflow, ±10%, Pel = Rated Power and Current Tolerance, ±10% | ||||||
| ||||||
| Note |
| General information about the A, MA, SF, SP, DP series can be found here. |
|
| Labelling |
 |
|
| Approvals |
  |
|
| Terms of Delivery |
| Available only on request 200 pieces upwards, delivery time approx. 14 weeks |
|
| Manufacturer |
 |
| http://www.sunon.com.tw |
|
