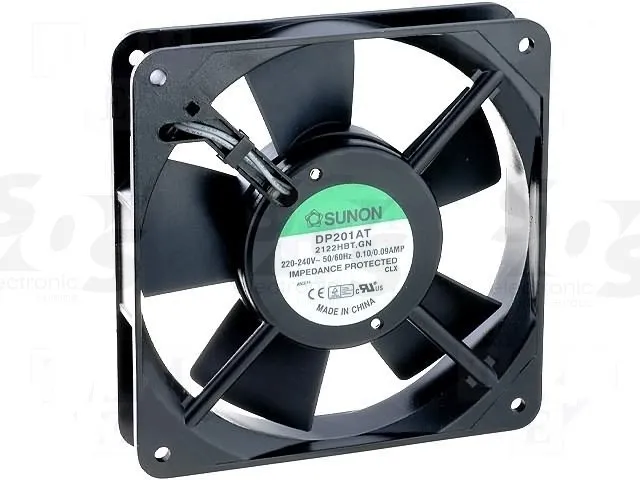

Fan 230V 120x25 B T 112m³/h 44dB 19W
Varenummer:
105-071
Varekode: DP201AT2122HBT
Vægt: 352 g
92 stk.
på lager
Gruppe:
K6452
SUNON AC Axial Fans
120x120x25mm
Series: DP
K6452
SUNON AC Axial Fans
120x120x25mm
Series: DP
| Design |
 | |
| Motor: | Shaded-Pole Motor Impedence Protected |
| Frame: | Aluminium Spray Cast |
| Impeller: | Filled Thermoplastic PBT (UL94V-0) |
| Connection Type: | Integrated Terminal Plug (2,8x0,3mm) |
| |
| Technical Specifications |
| |
| Rated Voltage | |
| 50Hz: | 220V |
| 60Hz: | 240V |
| Operating Voltage: | 185...245V |
| Dielectric Strength at 65% r. F.: | 1500V AC for 1 Min. |
| Insulation Resistance at 500V DC: | >500MW |
| Storage Temperature: | -40...+70C |
| Operating Temperature: | -10...+70C |
| |
| Part Nr. | Bearing | PAirflow | Noise | I | Pel | Speed |
| [m3/h] | [dBA] | [A] | [W] | [U/min] | ||
| DP201AT2122HST | Sleeve | 108,67 | 43 | 0,09 | 19 | 2000 |
| DP201AT2122HBT | Ball | 112,07 | 44 | 0,09 | 19 | 2150 |
| All Specs Valid for 230V, 50Hz; PAirflow= Airflow ±10%, Pel = Rated Power and Current Tolerance, ±10% | ||||||
| ||||||
| Labelling |
 |
|
| Approvals |
| Part Nr. |  |  | |
| DP201AT2122HST | x | x | |
| DP201AT2122HBT | x | ||
| |||
| Note |
| The frame is grounded by a M4 screw, drilled frames available. The fans are connected by a fan cable, see product group K9512. General information about the A, MA, SF, SP, DP series can be found here. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.sunon.com.tw |
|
