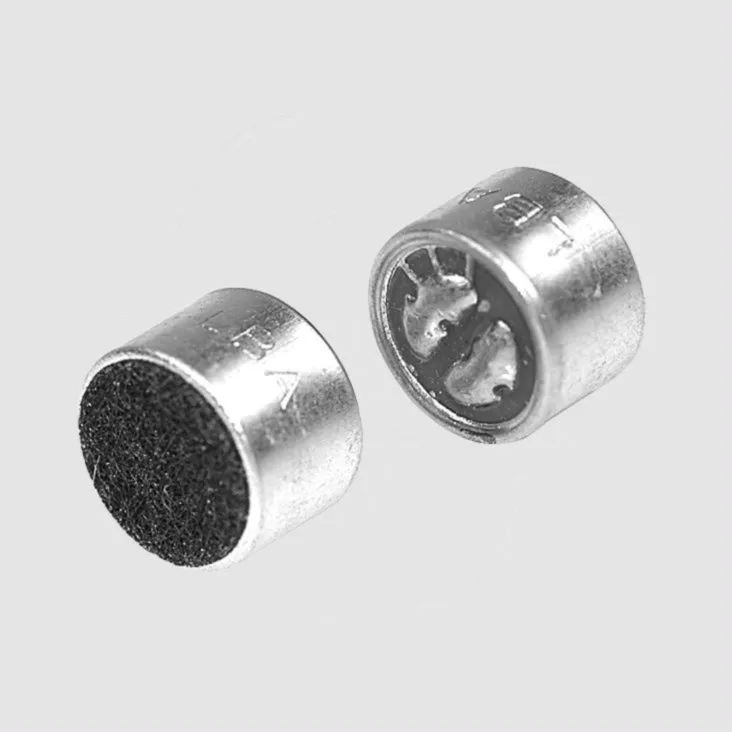

Elektretmikrofon -60dB SMD Ø9,7x6,7mm
Varenummer:
104-950
Varekode: PMOF9767NS-40U
Vægt: 1 g
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
Elektretmikrofon PMOF9767NS
Gruppe: H1817
HITPOINT Electret Condenser Microphones
Series: PMOF97
Diameter: 9,7mm
| Features |
| • Omnidirectional microphone • Tinned solder surfaces for stranded wire connection and PC pins |
 |
| Technical Specifications |
|
|||||||||||||
| Directivity: | Omnidirectional | Impedance, Max.: | 2,2kW | Current Consumption, Max.: | 0,5mA | Operating Voltage: | 1,0...10V | Operating Temperature: | -10...+45°C | Storage Temperature: | -20...+60°C | ||
|
|||||||||||||
| Part Nr. | Sensitivity1) | Sensitivity2) | Frequency | Range | [dB] | [dB] | [Hz] | PMOF97_-38U | -58 | -38 | 20...16000 | PMOF97_-40U | -60 | -40 | 20...16000 | PMOF97_-42U | -62 | -42 | 20...16000 | PMOF97_-46U | -66 | -46 | 20...16000 | ||||||||
| 1) 0dB = 1V/µBar, 1kHz, 2) 0dB = 1V/Pa, 1kHz | |||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||
| Additional Products |
| Other parts of 1000 pieces available on request, delivery time approx. 15 weeks. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 25 pieces |
|
| Manufacturer |
 |
| http://www.hitpoint.com.tw |
|
Inkl. moms
Kr. 15,70
- v/10 – Kr. 9,42
- v/25 – Kr. 7,85
- v/100 – Kr. 6,28
