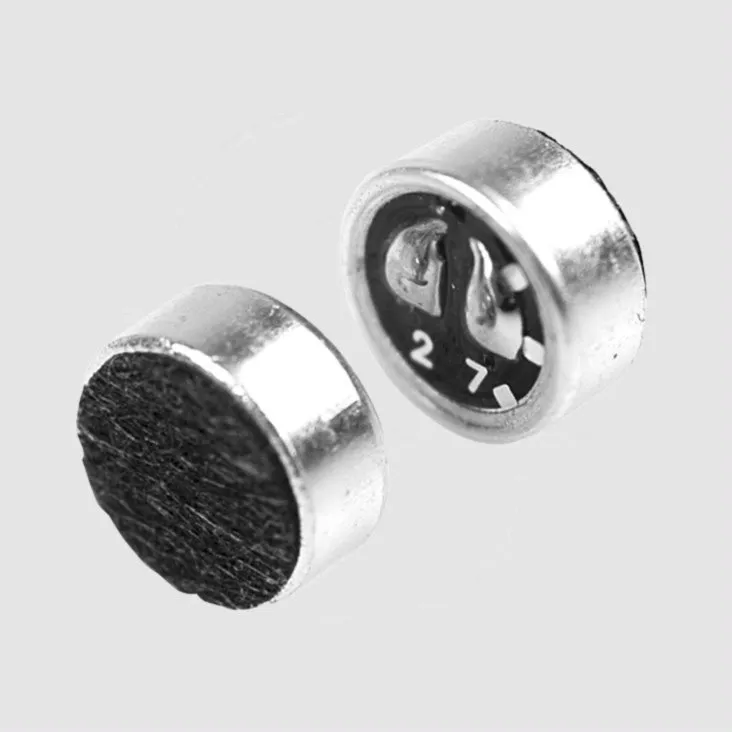

Elektretmikrofon -62dB Ø6,0x2,7mm
Varenummer:
104-941
Varekode: PMOF6027SN-42U
Vægt: 1 g
38 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Elektretmikrofon PMOF6027SN
Gruppe: H1815
HITPOINT Electret Condenser Microphones
Series: PMOF60
Diameter: 6,0mm
| Features |
| • Omnidirectional microphone • Tinned solder surfaces for stranded wire connection and PC pins |
| Technical Specifications |
| Directivity: | Omnidirectional | Impedance, Max.: | 2,2kW | Current Consumption, Max.: | 0,5mA | Operating Voltage: | 1,0...10V | Operating Temperature: | -10...+45°C | Storage Temperature: | -20...+60°C | ||
| Part Nr. | C1 | C2 | Sensitivity1) | Sensitivity2) | Frequency | PMOF60_ | [pF] | [pF] | Range | [dB] | [dB] | [Hz] | 27SN-42U | 10 | 33 | -62 | -42 | 20...16000 | 27PN-42U | 10 | 33 | -62 | -42 | 20...16000 | 50NS-45U | - | - | -65 | -45 | 20...16000 | |||||||||||
| 1) 0dB = 1V/µBar, 1kHz,2) 0dB = 1V/Pa, 1kHz | |||||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||||
| Manufacturer |
 |
| http://www.hitpoint.com.tw |
|
Inkl. moms
Kr. 30,14
- v/10 – Kr. 18,08
- v/25 – Kr. 15,07
- v/100 – Kr. 12,06
Produktfiler
Elektretmikrofon -62dB Ø6,0x2,7mm
104-941
/ PMOF6027SN-42U
38 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Kontakt os for at få oplyst leveringstid
Elektretmikrofon PMOF6027SN
Gruppe: H1815
HITPOINT Electret Condenser Microphones
Series: PMOF60
Diameter: 6,0mm
| Features |
| • Omnidirectional microphone • Tinned solder surfaces for stranded wire connection and PC pins |
| Technical Specifications |
| Directivity: | Omnidirectional | Impedance, Max.: | 2,2kW | Current Consumption, Max.: | 0,5mA | Operating Voltage: | 1,0...10V | Operating Temperature: | -10...+45°C | Storage Temperature: | -20...+60°C | ||
| Part Nr. | C1 | C2 | Sensitivity1) | Sensitivity2) | Frequency | PMOF60_ | [pF] | [pF] | Range | [dB] | [dB] | [Hz] | 27SN-42U | 10 | 33 | -62 | -42 | 20...16000 | 27PN-42U | 10 | 33 | -62 | -42 | 20...16000 | 50NS-45U | - | - | -65 | -45 | 20...16000 | |||||||||||
| 1) 0dB = 1V/µBar, 1kHz,2) 0dB = 1V/Pa, 1kHz | |||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||
| Manufacturer |
|
| http://www.hitpoint.com.tw |
|
Produktfiler
