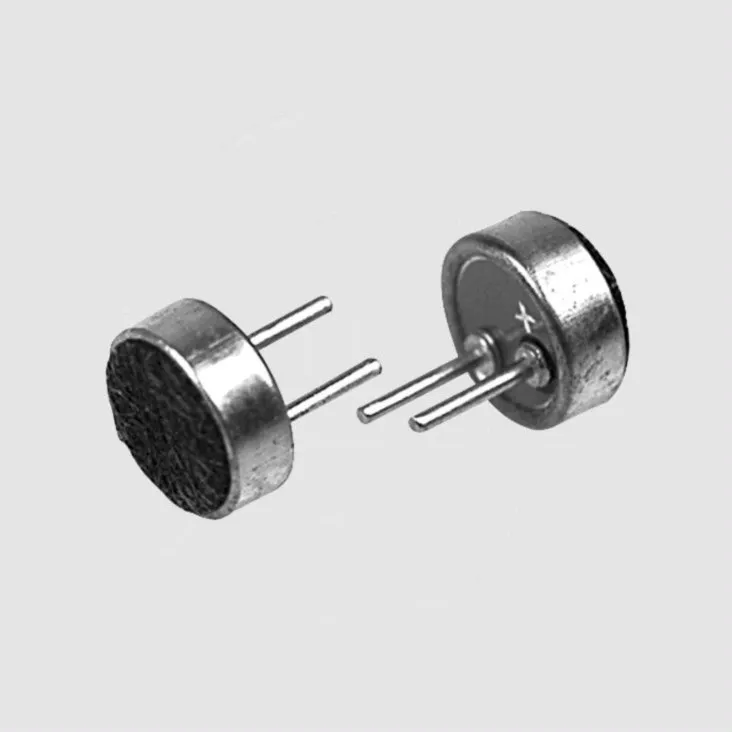

Elektretmikrofon -62dB PC Ø4,0x1,5mm
Varenummer:
104-940
Varekode: PMO4015PN-42U
Vægt: 1 g
30 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Elektretmikrofon PMO4015PN
Gruppe: H1812
HITPOINT Electret Condenser Microphones
Series: PMO40

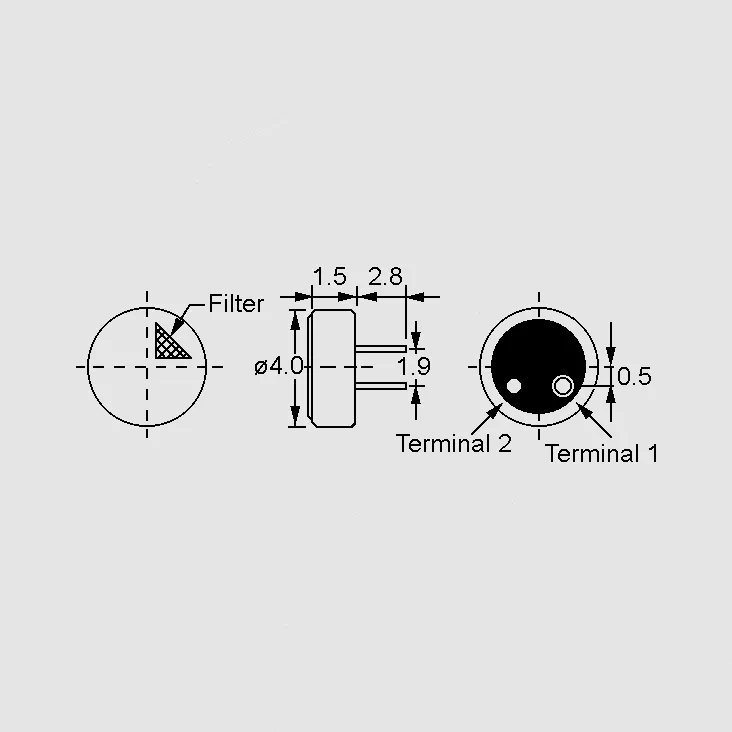

Diameter: 4,0mm
| Features |
| • Omnidirectional microphone • Tinned solder surfaces for stranded wire connection and PC pins |
 |
| Technical Specifications |
|
|||||||||||||
| Directivity: | Omnidirectional | Impedance, Max.: | 2,2kW | Current Consumption, Max.: | 0,5mA | Operating Voltage: | 1,0...10V | Operating Temperature: | -10...+45°C | Storage Temperature: | -20...+60°C | ||
|
|||||||||||||
| Part Nr. | Sensitivity1) | Sensitivity2) | Frequency | Range | [dB] | [dB] | [Hz] | PMO4015SN-42U | -62 | -42 | 50...12000 | PMO4015PN-42U | -62 | -42 | 50...16000 | ||||||||
| 1) 0dB = 1V/µBar, 1kHz, 2) 0dB = 1V/Pa, 1kHz | |||||||||||||||||||||||
|
|||||||||||||||||||||||
| Additional Products |
| Other parts of 1000 pieces available on request, delivery time approx. 8 weeks. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.hitpoint.com.tw |
|
Produktfiler
