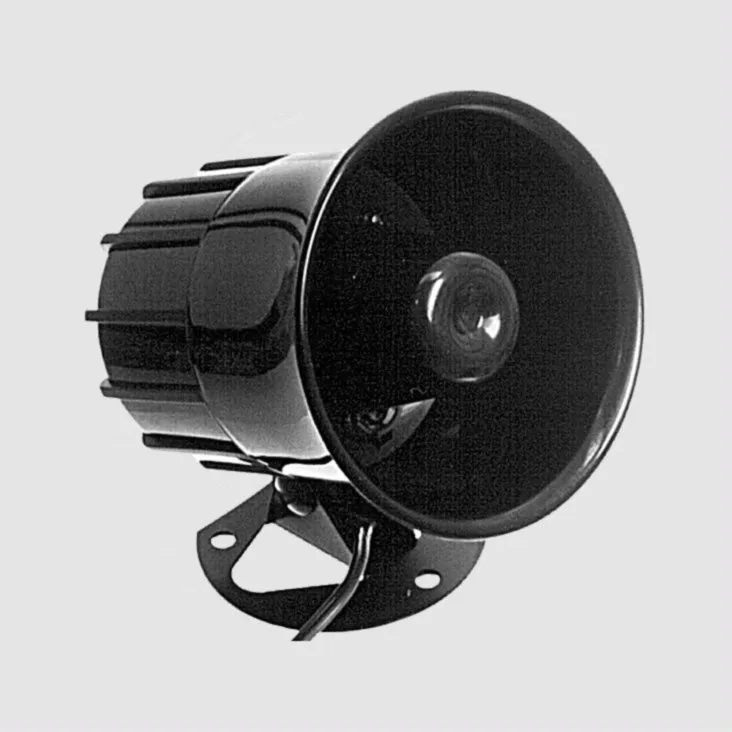

Horn Sirene ABS 12V 10W 110dB
Varenummer:
104-934
Varekode: PS380Q
Vægt: 450 g
0 stk.
på lager
Gruppe: H1513
HITPOINT Horn Sirens
Series: PS3
| Features |
| • Very high sound output • High reliability and long life |
 |
| PS310AQ, PS330Q, PS380Q, PS380AQ |
| Horn Siren with a Constant Tone |
|
| Technical Specifications |
|
|||||||||||||||||||||||||
| Material: | ABS | Operating Voltage: | 12V DC | Operating Frequency: | 1,5...3,5kHz | Current Consumption | 310AQ, 380AQ: | 1200mA/12V DC | 330Q, 380Q: | 600mA/12V DC | S.P.L.1) | 310AQ, 380AQ: | 115dB/12V DC | 330Q, 380Q: | 110dB/12V DC | Pulse Rate: | 3,3Hz±20% | Operating Temperature: | -20...+70°C | StorageTemperature: | -30...+80°C | ||||
| 1) Within 1m Range | |||||||||||||||||||||||||
|
|||||||||||||||||||||||||
| Dimensions |
| Part Nr. | Horn Diameter | Length | [mm] | [mm] | PS310AQ | 100 | 100 | PS330Q | 135 | 150 | PS380Q | 90 | 100 | PS380AQ | 90 | 100 | |||||||||||
|
|||||||||||||||||||||||||||

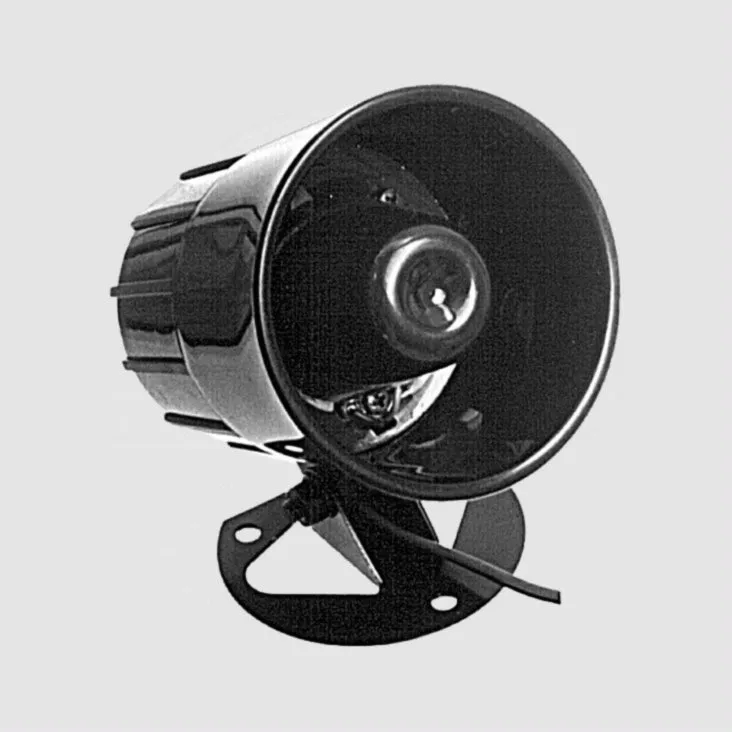

| PS386Q |
| Six Tone Horn Siren |
|
| Technical Specifications |
|
|||||||||||||||||||||
| Material: | ABS | Operating Voltage: | 12V DC | Operating Frequency: | 1,5...3,5kHz | Current Consumption: | 1200mA/12V DC | S.P.L.1): | 115dB/12V DC | Pulse Rate: | 3,3Hz±20% | Operating Temperature: | -20...+70°C | Storage Temperature: | -30...+80°C | Horn Diameter: | 90mm | Length: | 100mm | ||
| 1) Within 1m Range | |||||||||||||||||||||
|
|||||||||||||||||||||
| PS350Q |
| Horn Siren with a Constant Tone |
|
| Technical Specifications |
|
|||||||||||||||||||
| Material: | ABS | Operating Voltage: | 12V DC | Operating Frequency: | 1,5...3,5kHz | Current Consumption: | 600mA/12V DC | S.P.L.1): | 110dB/12V DC | Pulse Rate: | 3,3Hz±20% | Operating Temperature: | -20...+70°C | Storage Temperature: | -30...+80°C | Dimensions (WxHxD): | 120x200x235mm | ||
| 1) Within 1m Range | |||||||||||||||||||
|
|||||||||||||||||||
| Note |
| • Adjusting to constant or high and low tones is done through the wiring. |
|
| Labelling |
 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.hitpoint.com.tw |
|
