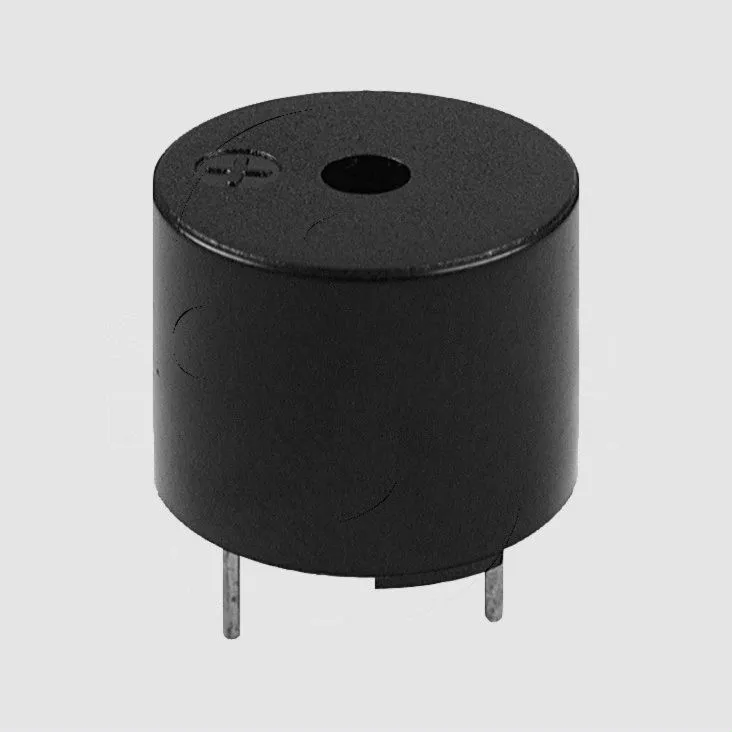

Buzzer 12mm PC 5VDC 50mA 85dB højde: 7,5mm.
Varenummer:
104-925
Varekode: PB12N23MP05Q
Vægt: 1 g
4 stk.
på lager
Gruppe:
H1415
HITPOINT DC Sounders
Series: PB12N23
For PCB Assembly
HITPOINT DC Sounders
Series: PB12N23
For PCB Assembly
| Features |
| Extremely high-power miniature transmitter for PCB assembly Pin connection terminals A drive circuit is not necessary Easy to remove adhesive label with polarity data to protect against contamination during soldering |
 |
| Technical Specifications |
| |
| Operating Temperature: | -20...+70C |
| Storage Temperature: | -30...+80C |
| |
| Part Nr. | FR | U | SPLmin | IA |
| [kHz] | [V DC] | [dB] | [mA] | |
| PB12N23MP05Q | 2,3±0,4 | 4,5...5,5 | 85 | 50 |
| PB12N23P03Q | 2,3±0,4 | 2,0...5,0 | 85 | 30 |
| PB12N23P05Q | 2,3±0,4 | 4,5...5,5 | 85 | 50 |
| PB12N23P09Q | 2,3±0,4 | 7,0...11 | 85 | 50 |
| PB12N23P12Q | 2,3±0,4 | 9,0...15 | 85 | 50 |
| FR = Resonant Frequency,U= Operating Voltage,SPLmin = Min. S.P.L., at 5V DC and 10cm Spacing, IA = Current Consumption | ||||
| ||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.hitpoint.com.tw |
|
Inkl. moms
Kr. 19,00
Kr. 29,06
- v/10 – Kr. 23,25
- v/25 – Kr. 17,44
- v/100 – Kr. 11,62
