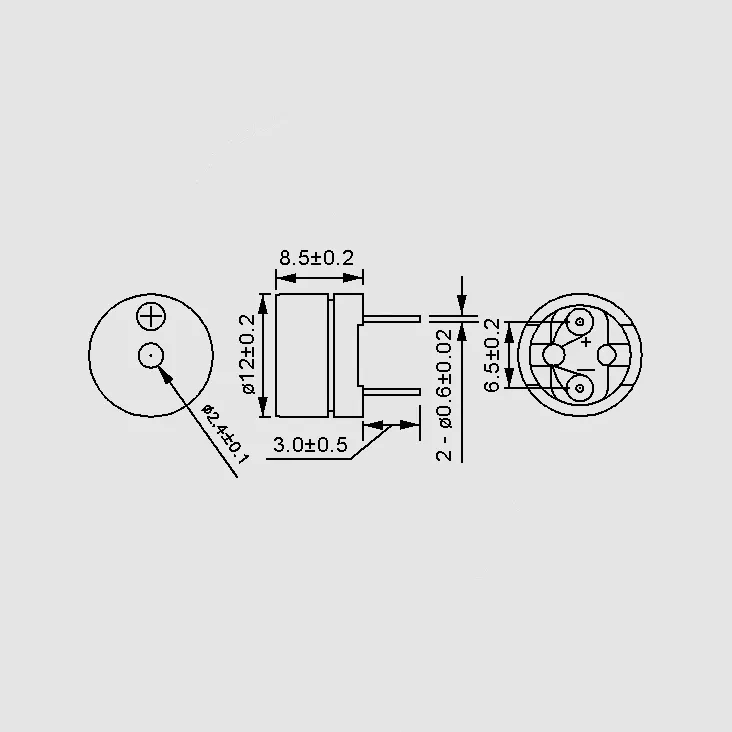

Buzzer 12mm PC 1,5VAC 2048Hz 88dB
Varenummer:
104-911
Varekode: PB1220PF1Q
Vægt: 1 g
13 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere kan skaffes mandag d. 9/11
Gruppe:
H1315
HITPOINT AC Sounders
Series: PB
For PCB Assembly
HITPOINT AC Sounders
Series: PB
For PCB Assembly
| Features |
| Extremely high-power miniature transmitter for PCB assembly Without drive circuit Pin connection terminals Easy to remove adhesive label with polarity data to protect against contamination during soldering |
 |
| Technical Specifications |
| Part Nr. | FR | U | SPLmin | IA | TB |
| PB_ | [kHz] | [Vpp] | [dB] | [mA] | [C] |
| 0927P05Q | 2,731 | 4,5...5,5 | 85 | 65 | -20...+70 |
| 1220PF1Q | 2,048 | 1,25...2,5 | 88 | 40 | -20...+60 |
| 1220PE05Q | 2,048 | 4,5...5,5 | 85 | 60 | -20...+70 |
| 1220PE12Q | 2,048 | 9,0...15 | 90 | 65 | -20...+70 |
| 1224PE05Q | 2,4 | 4,5...5,5 | 85 | 60 | -20...+70 |
| 1224PE12Q | 2,4 | 9,0...15 | 85 | 40 | -20...+70 |
| 09M27PE05Q | 2,731 | 4,5...5,5 | 85 | 70 | -20...+70 |
| FR = Resonant Frequency, U = Operating Voltage, SPLmin = Min. S.P.L. at Vpp and 10cm Spacing, IA = Current Consumption, TB = Operating Temperature Range | |||||
| |||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.hitpoint.com.tw |
|
Inkl. moms
Kr. 9,99
- v/10 – Kr. 6,24
- v/25 – Kr. 4,37
- v/100 – Kr. 2,49
Produktfiler
Buzzer 12mm PC 1,5VAC 2048Hz 88dB
104-911
/ PB1220PF1Q
13 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Ved bestilling nu, får vi dem hjem mandag d. 9/11
Gruppe:
H1315
HITPOINT AC Sounders
Series: PB
For PCB Assembly
HITPOINT AC Sounders
Series: PB
For PCB Assembly
| Features |
| Extremely high-power miniature transmitter for PCB assembly Without drive circuit Pin connection terminals Easy to remove adhesive label with polarity data to protect against contamination during soldering |
|
| Technical Specifications |
| Part Nr. | FR | U | SPLmin | IA | TB |
| PB_ | [kHz] | [Vpp] | [dB] | [mA] | [C] |
| 0927P05Q | 2,731 | 4,5...5,5 | 85 | 65 | -20...+70 |
| 1220PF1Q | 2,048 | 1,25...2,5 | 88 | 40 | -20...+60 |
| 1220PE05Q | 2,048 | 4,5...5,5 | 85 | 60 | -20...+70 |
| 1220PE12Q | 2,048 | 9,0...15 | 90 | 65 | -20...+70 |
| 1224PE05Q | 2,4 | 4,5...5,5 | 85 | 60 | -20...+70 |
| 1224PE12Q | 2,4 | 9,0...15 | 85 | 40 | -20...+70 |
| 09M27PE05Q | 2,731 | 4,5...5,5 | 85 | 70 | -20...+70 |
| FR = Resonant Frequency, U = Operating Voltage, SPLmin = Min. S.P.L. at Vpp and 10cm Spacing, IA = Current Consumption, TB = Operating Temperature Range | |||||
| |||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
| |
| http://www.hitpoint.com.tw |
|
