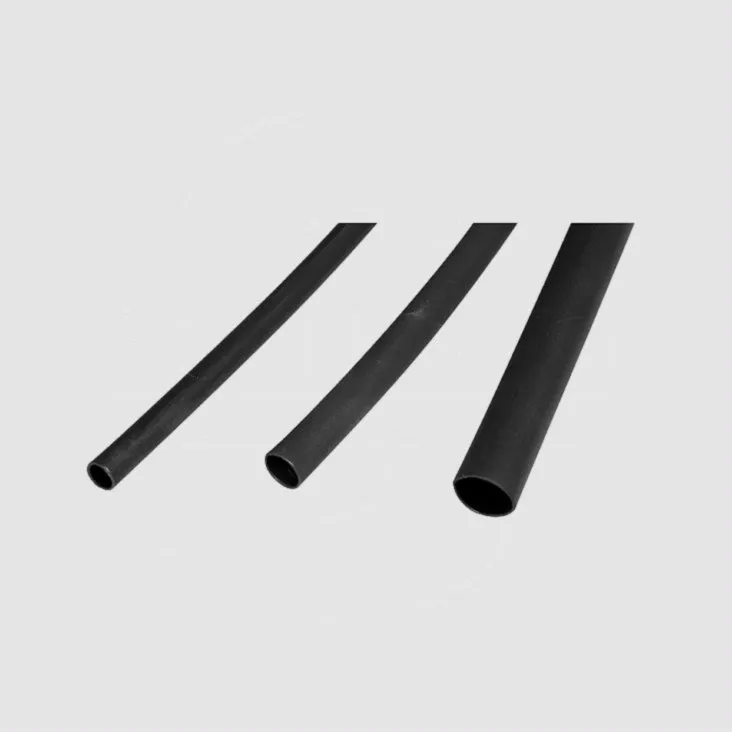

Shrink Tubing 4:1 12,0mm 0,6m Black
Varenummer:
104-856
Varekode: WSRR120A
Vægt: 22 g
5 stk.
på lager
Gruppe:
G8615
Polyolefin Heat-Shrinkable Tubing with Inner Adhesive Sealing
Series: WSRR
Thin Walled, Strips
Tubing: 4:1
Colour: Black
Polyolefin Heat-Shrinkable Tubing with Inner Adhesive Sealing
Series: WSRR
Thin Walled, Strips
Tubing: 4:1
Colour: Black
| Features |
| Thin walled radiation-interlaced polyolefin with adhesive interior Flame retardant |
 |
| Technical Specifications |
| |
| Continuous Operating Temperature: | -55...+110C |
| Minimum Shrink Temperature: | 120C |
| Dielectric Strength, Min.: | 20kV/mm |
| Flammability: | Flame Retardant |
| |
| Dimensions |
| Part Nr. | D | d | W |
| [mm] | [mm] | [mm] | |
| WSRR40A | 4...5 | 1 | 1,0 |
| WSRR80A | 8...9,5 | 2 | 1,1 |
| WSRR120A | 12...14 | 3 | 1,6 |
| WSRR160A | 16...18 | 4 | 2,0 |
| WSRR520A | 52...57 | 13 | 3,0 |
| D = Inner Dimensions Before Shrinkage, d = Inner Dimensions After Shrinkage, W = Wall Strength | |||
| |||
| Approvals |
 UL224, VW-1 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces with 0,6m |
|
| Manufacturer |
| Various |
|
Inkl. moms
Kr. 61,88
- v/10 – Kr. 46,41
- v/25 – Kr. 30,94
- v/100 – Kr. 26,30
