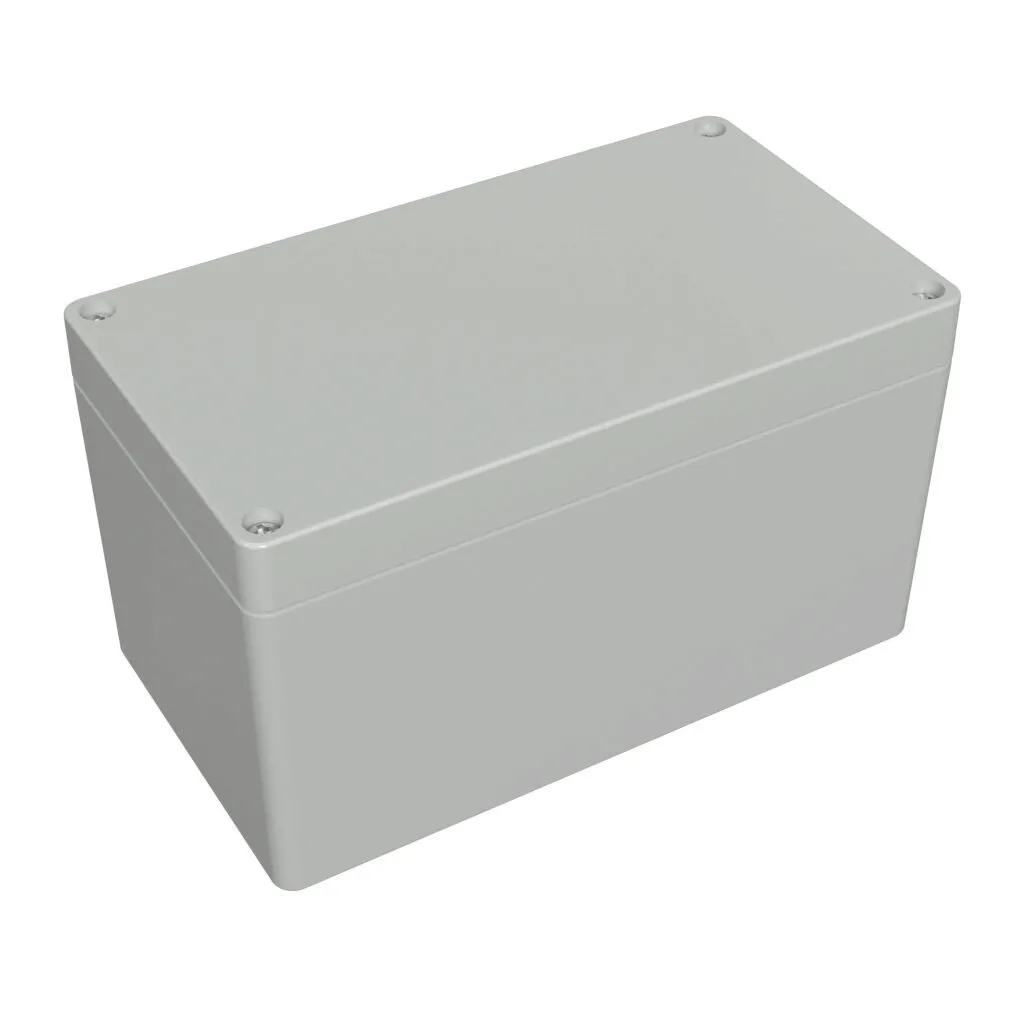

ABS Enclosure 160x90x90
Varenummer:
104-735
Varekode: 1554KGY
Vægt: 265 g
3 stk.
på lager
Specifikationer
| Farve | grå |
|---|---|
| Produkt | boks |
| Materiale | ABS |
| Tæthedsgrad (IP) | 66 |
| Længde | 16 cm |
| Bredde | 9 cm |
| Højde | 9 cm |
Gruppe: G4535
HAMMOND ABS Wall and Desktop Enclosures
Series: 1554
With IP66 Protection
Colour: Light Grey
| Features |
| • Light grey ABS enclosure (similar to RAL 7035), UL94V HB • Dust proof, watertight enclosure (IP66 and NEMA 4, 4X, 12, 13) • Gasket is factory poured using high temperature (UL listed) silicone rubber gasket material • Lid is secured to base with M3x10 Phillips screws (supplied in delivery) • Machined screws in brass bushings at the four enclosure corners to provide a secure "lap-joint" construction of base and lid • Mounting cams for molded screws • Also suitable for wall mounting |
 |
| Dimensions |
| Part Nr. | L | W | D | E | F | [mm] | [mm] | [mm] | [mm] | [mm] | HA1554BGY | 65 | 65 | 40 | 25 | 15 | HA1554EGY | 90 | 90 | 60 | 45 | 15 | HA1554CGY | 120 | 65 | 40 | 25 | 15 | HA1554FGY | 120 | 90 | 60 | 45 | 15 | HA1554KGY | 160 | 90 | 90 | 75 | 15 | HA1554VGY | 240 | 160 | 90 | 75 | 20 | |||||||
| D = Overall Depth, Assembled | |||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
| Hammond http://www.hammondmfg.com |
|
