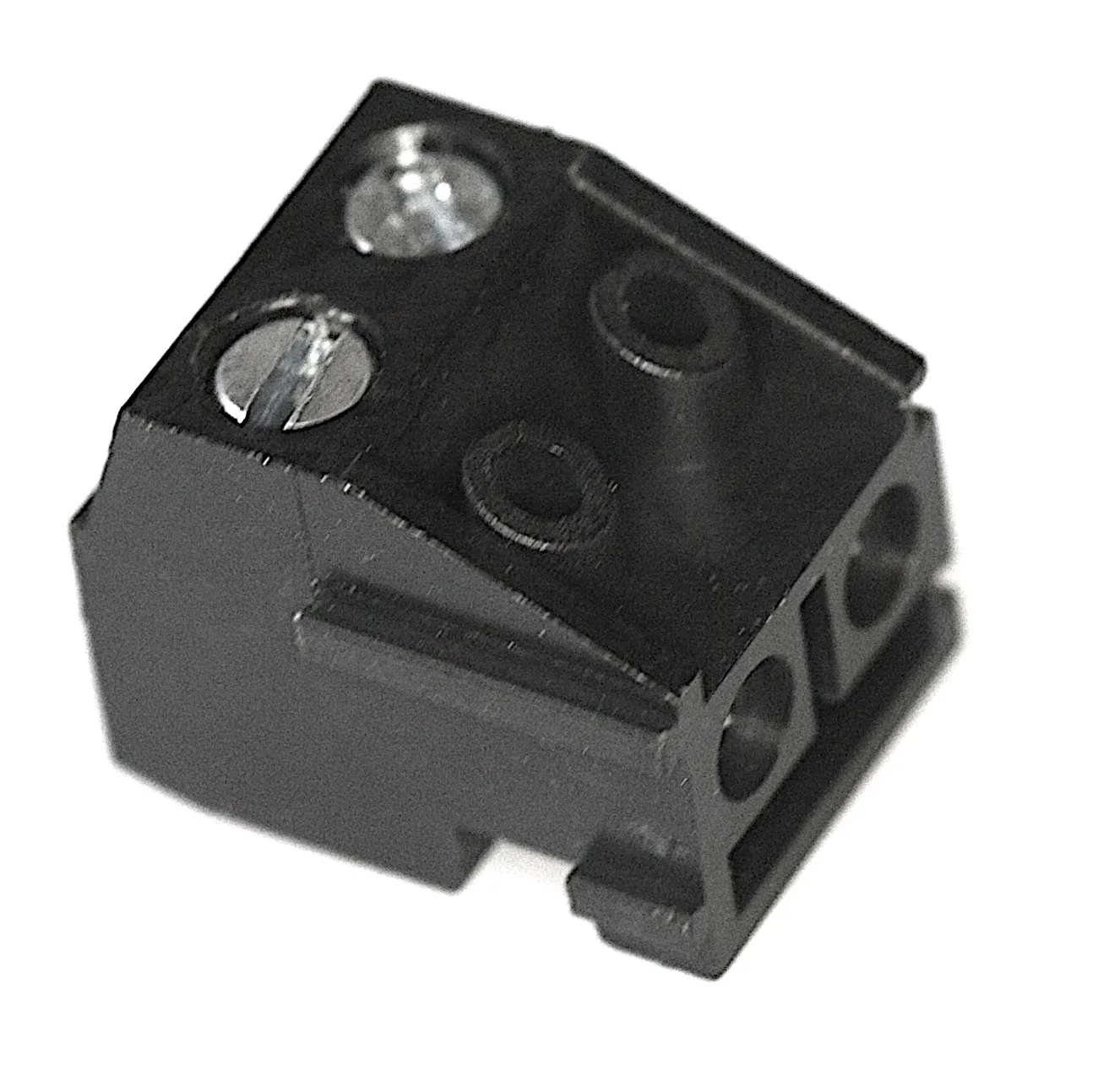

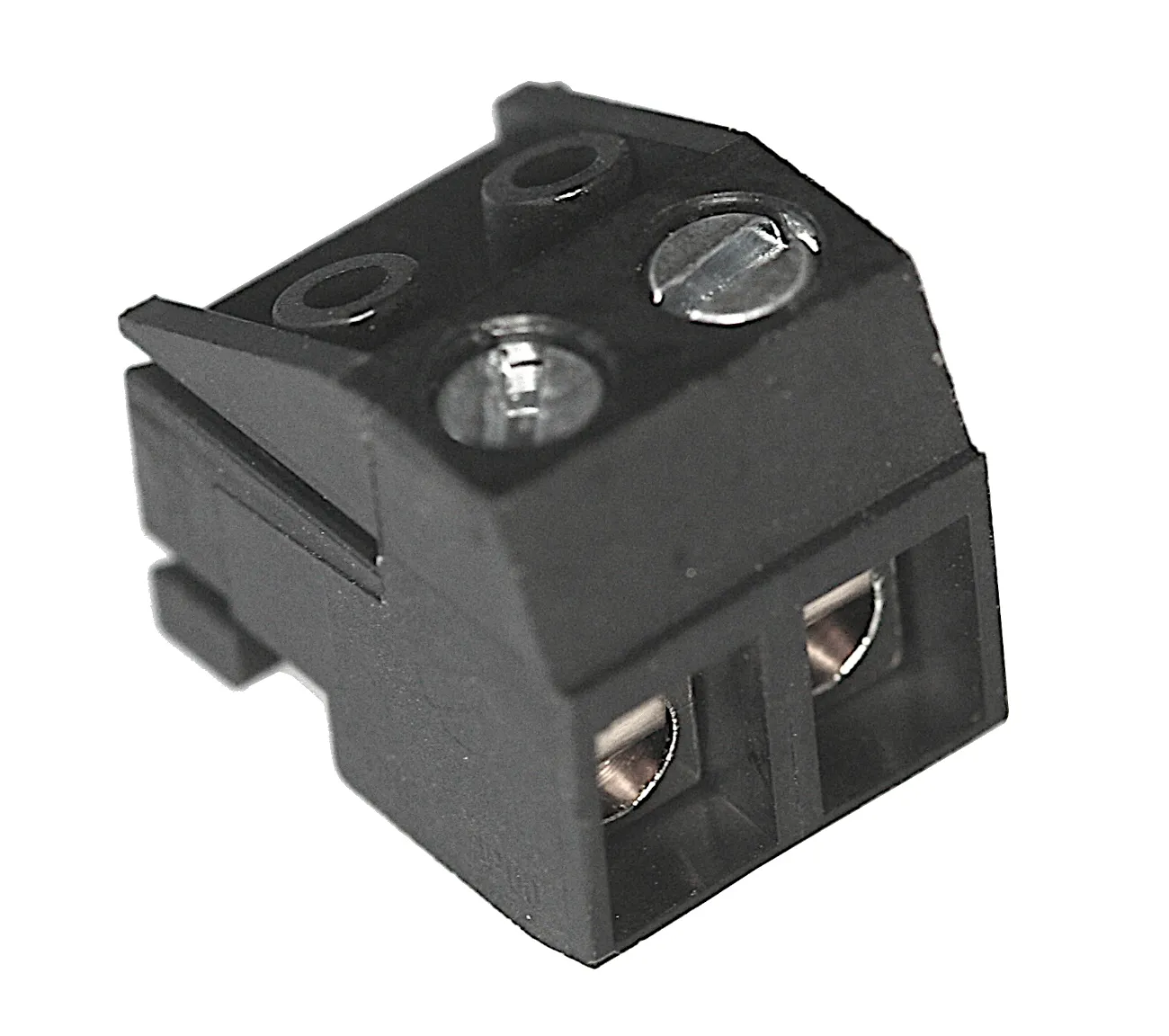

Terminalblok 2-Pole Sort
Varenummer:
104-477
Varekode: CHF5-2
Vægt: 2 g
31 stk.
på lager
Gruppe: F9542
STELVIO KONTEK Terminal Blocks and Box Headers
Series: CHF5, CHM5
Screw Principle with Wire Guard
Conductor: Horizontal
Pitch: 5mm
| CHF5_ |
 |
| Features |
| • Attach vertically or horizontally to the PCB |
|
| Technical Specifications |
|
|||||||||||||||||||
| Rated Voltage: | 250V | Rated Current: | 10A | Rated Cross Section Single Stranded Wire: | 0,5...1,5mm2 | Rated Cross Section Fine Stranded Wire: | 0,5...1,0mm2 | Stripped Length: | 6,0mm | Insulating Material: | PA | Temperature Range: | -30...+120°C | Flammability Class: | UL94V-0 | Colour: | Black | ||
|
|||||||||||||||||||
| Dimensions |
| Part Nr. | L | P | [mm] | [mm] | CHF5-2 | 10 | 5 | CHF5-3 | 15 | 5 | |||||||||
|
|||||||||||||||||||
| CHM5-24 |
| 24 Pole Pin Block |
|
| Features |
| • 24 pole pin block, refractive in 5mm pitch |
|
| Technical Specifications |
|
|||||||||||
| Rated Voltage: | 250V | Rated Current: | 10A | Insulating Material: | PA | Temperature Range: | -30...+120°C | Flammability Class: | UL94V-0 | ||
|
|||||||||||
| Approvals |
 UL1059 + C22.2 no. 269 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 50 pieces CHM5-24: 1 PKU = 25 pieces |
|
| Manufacturer |
 |
| http://www.stelvio-kontek.com |
|
