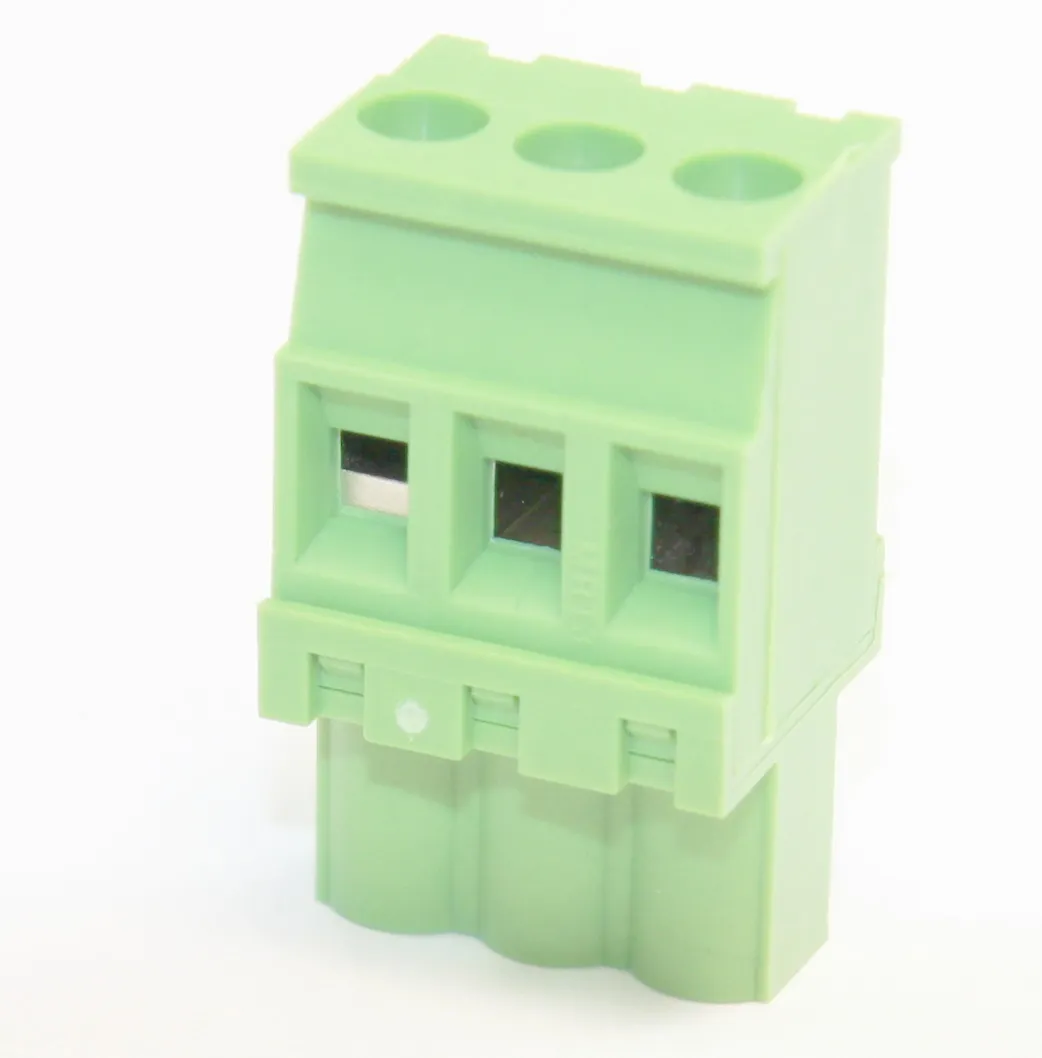

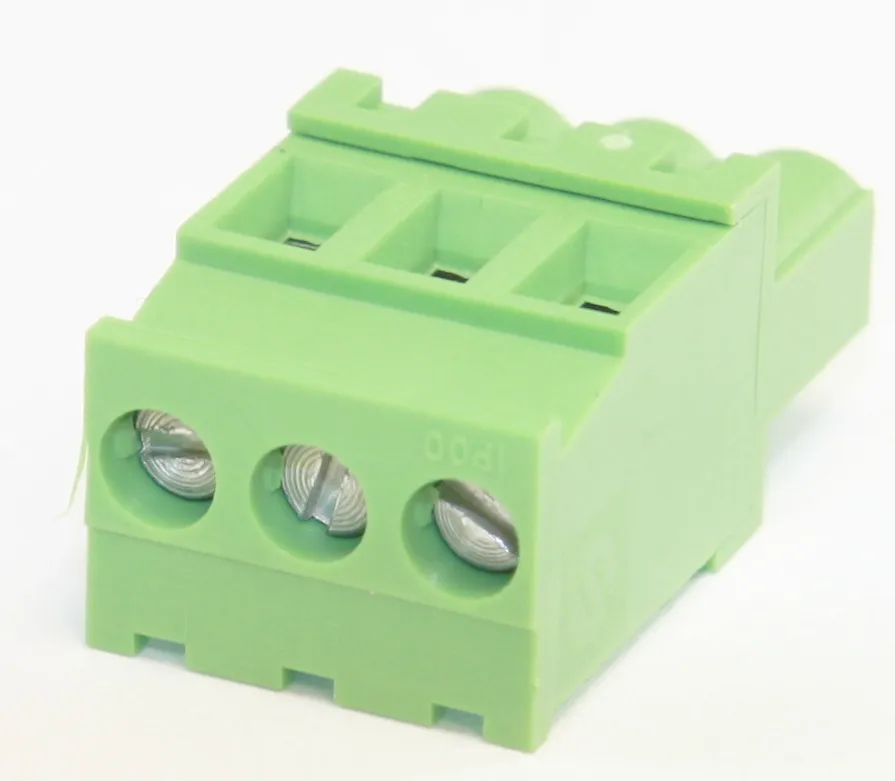

Terminal Block 320V 3-Pole Green
Varenummer:
104-457
Varekode: MRT3P5-3VE
Vægt: 6 g
0 stk.
på lager
Gruppe:
F9535
STELVIO KONTEK Multiconnectors
Series: MRT3P5
Screw-cage Clamp Principle
Conductor: Horizontal
Pitch: 5mm
STELVIO KONTEK Multiconnectors
Series: MRT3P5
Screw-cage Clamp Principle
Conductor: Horizontal
Pitch: 5mm
| Technical Specifications |
 | |
| Rated Voltage: | 320V |
| Rated Current: | 12A |
| Rated Cross Section, Single and Fine Stranded Wire: | 0,5...2,5mm2 |
| Stripped Length: | 7mm |
| Insulating Material: | PA |
| Temperature Range: | -30...+120C |
| Flammability Class: | UL94V-0 |
| Colour: | Green |
| |
| Dimensions |
| Part Nr. | L | P | |
| [mm] | [mm] | ||
| MRT3P5-2VE | 10 | 5 | |
| MRT3P5-3VE | 15 | 5 | |
| MRT3P5-4VE | 20 | 5 | |
| MRT3P5-5VE | 25 | 5 | |
| |||
| Note |
| You will find suitable box headers in product groups F9538 and F9539. |
|
| Approvals |
 UL1059, C22.2 no. 158 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.stelvio-kontek.com |
|
