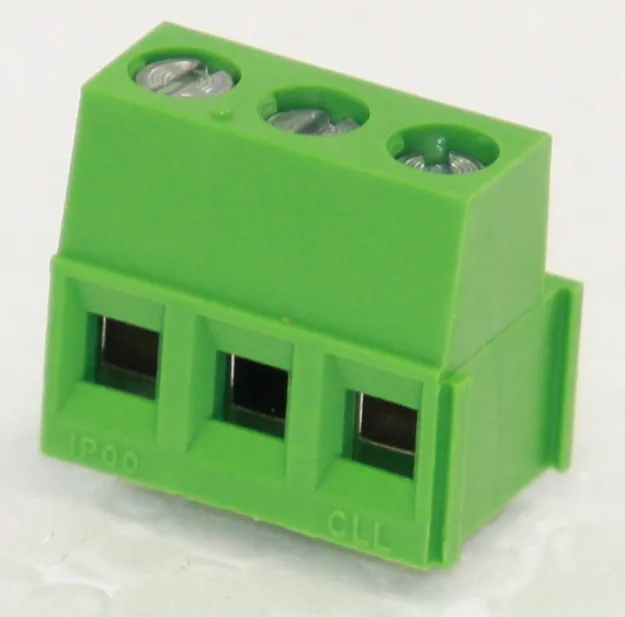

Terminal Block 250V 3-Pole Grøn

Name: Terminal Block 250V 3-Pole Grøn
SKU: 104410
Price: 4.23 DKK
Availability: InStock

Varenummer: 104-410

Varekode: CLL5,08-3

Vægt: 4 g

100 stk. på lager

Vis lignende produkter i kategorien "Lodret RM 5mm. (5,08)"

Technical Specifications

Rated Voltage (EN 60998):

250V AC

Rated Current:

24A

Rated Cross Section Single Stranded Wire:

0,2...4mm²

Rated Cross Section Fine Stranded Wire:

0,2...2,5mm²

Stripped Length:

6mm

Insulating Material:

Temperature Range:

-30...+120°C

Flammability Class:

UL94V-0

Colour:

Green

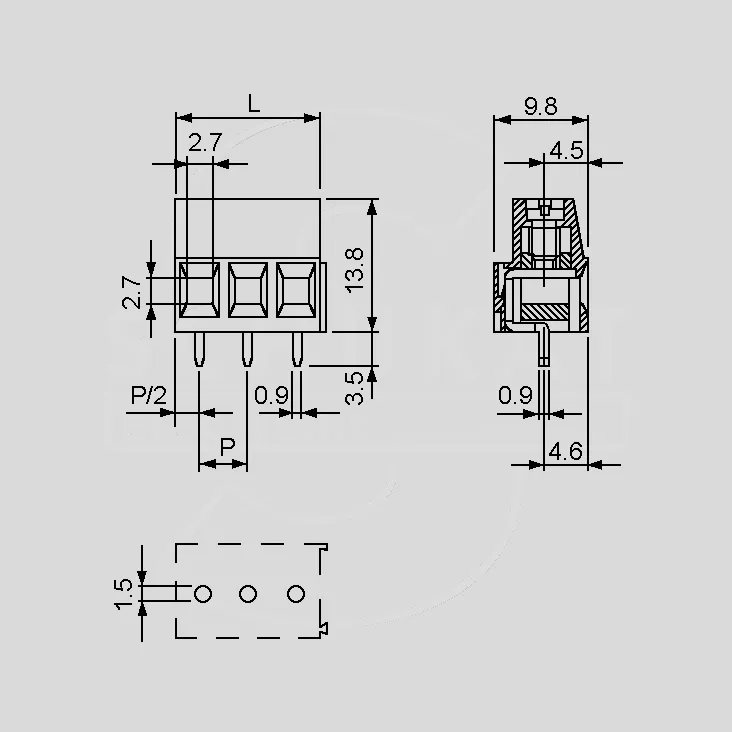

Dimensions

Part Nr.

[mm]

CLL5,08-2

10,16

5,08

CLL5,08-3

15,24

5,08

Approvals

EN 60998,

UL1059,

UL1059, C22.2 no. 158

Manufacturer

http://www.stelvio.it

Inkl. moms

v/50 Kr. 4,23

v/250 – Kr. 3,38
v/1000 – Kr. 2,53

Produktfiler

Terminal Block 250V 3-Pole Grøn

104-410

/ CLL5,08-3
