Terminal Block 500V 2-Pole Green

Varenummer: 104-403
Varekode: CLL7,5-2
Vægt: 3 g
0 stk. på lager
Vis lignende produkter i kategorien "Lodret RM 7,5mm. (7,62)"
Technical Specifications
Rated Voltage (EN 60998):
 500V AC
Rated Current:
24A
Rated Cross Section Single Stranded Wire:
 0,2...4mm2
Rated Cross Section Fine Stranded Wire:
 0,2...2,5mm2
Stripped Length:
 6mm
Insulating Material:
 PA
Temperature Range:
 -30...+120°C
Flammability Class:
 UL94V-0
Colour:
 Green

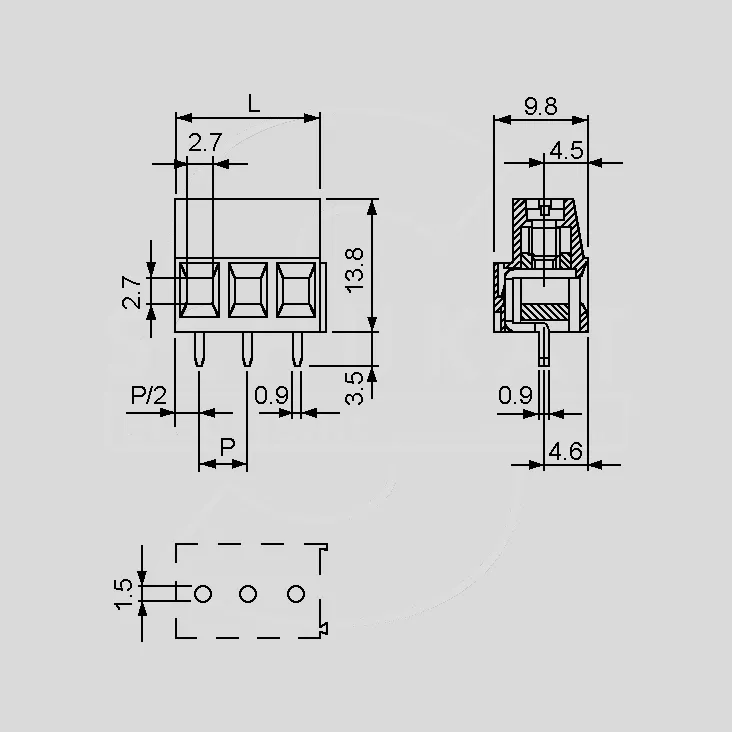

Dimensions
Part Nr.
 L
 P

  [mm]
 [mm]

CBL10-2 15
 7,5

CBL10-3 22,5
 7,5

Approvals
EN 60998, UL1059, UL1059, C22.2 no. 158
Manufacturer

http://www.stelvio.it
Inkl. moms
v/50 Kr. 3,23
  • v/250 – Kr. 2,58
  • v/1000 – Kr. 1,93
