• for FPC connection from displays
|
 |
FPC1,00-_
|
|
|
|
|
Insulation Shell:
|
Nylon 6T, UL94V-0
|
Contact Material:
|
Phosphor-Bronze
|
Contact Surface:
|
Tin-plated
|
Rated Current:
|
1,0A
|
Insulation Resistance, Max.:
|
100MW
|
Dielectric Strength (1min.):
|
500V AC
|
Temperature Range:
|
-25...+105°C
|
Solderability (10s):
|
260°C
|
|

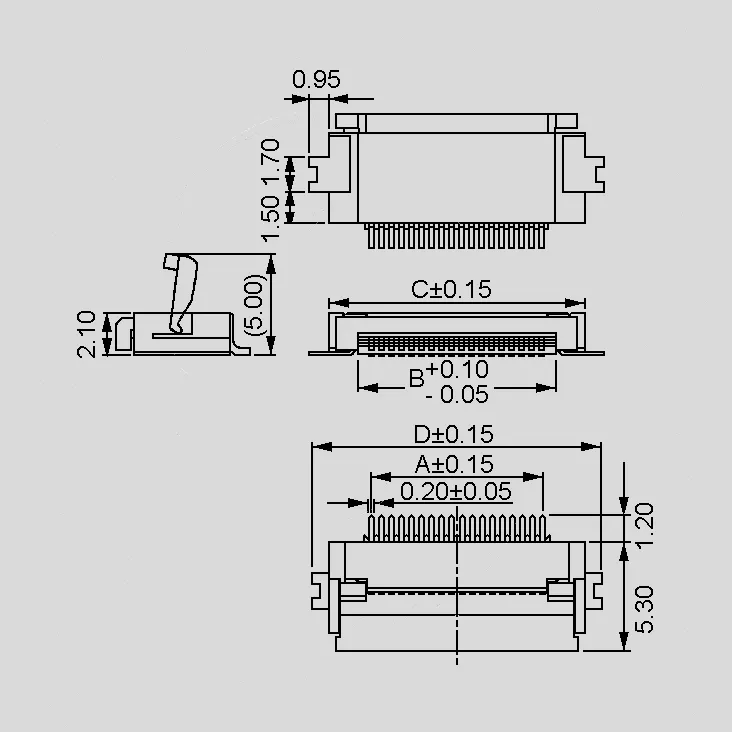

FPC0,50-_
|
|
|
|
|
Insulation Shell:
|
LCP, UL94V-0
|
Contact Material:
|
Phosphor-Bronze
|
Contact Surface:
|
Tin-plated
|
Rated Current:
|
0,5A
|
Insulation Resistance, Max.:
|
500MW
|
Dielectric Strength (1min.):
|
200V AC
|
Temperature Range:
|
-55...+85°C
|
Solderability (10s):
|
260°C
|
|
STL135CSPTT-2
|
|
|
|
|
Insulation Shell:
|
Thermoplastic,UL94V-0
|
Contact Material:
|
Copper alloy
|
Contact Surface:
|
Tin-plated
|
Rated Current:
|
7A
|
Insulation Resistance, Max.:
|
1000MW
|
Dielectric Strength (1min.):
|
1500V AC
|
Temperature Range:
|
-40...+105°C
|
Solderability (10s):
|
260°C
|
|
KABFPC-_
|
|
|
|
|
Insulation Shell:
|
PET
|
Contact Material:
|
-
|
Rated Current:
|
1A
|
Rated Voltage:
|
50V
|
Dielectric Strength (1min.):
|
500V AC
|
Temperature Range:
|
-30...+105°C
|
|
|
|
|
|
|
|
|
Part Nr.
|
Nr. of Poles
|
Pitch
|
A
|
B
|
C
|
D
|
| |
|
[mm]
|
[mm]
|
[mm]
|
[mm]
|
[mm]
|
| FPC1,00-B-004U |
4
|
1,00
|
3,0
|
5,2
|
11,4
|
-
|
| FPC0,50-B-033U |
33
|
0,50
|
16,0
|
17,1
|
19,9
|
21,8
|
| FPC0,50-B-040U |
40
|
0,50
|
19,5
|
20,6
|
23,9
|
25,3
|
| FPC0,50-B-054U |
54
|
0,50
|
26,5
|
27,6
|
33,9
|
32,3
|
| FPC0,50-B-060U |
60
|
0,50
|
29,5
|
30,6
|
45,9
|
35,3
|
| STL135CSPTT-2 |
2
|
3,50
|
see
|
drawing
|
|
|
| KABFPC-0,50-033D |
33
|
0,50
|
see
|
drawing
|
|
|
| KABFPC-0,50-040D |
44
|
0,50
|
see
|
drawing
|
|
|
|
|
