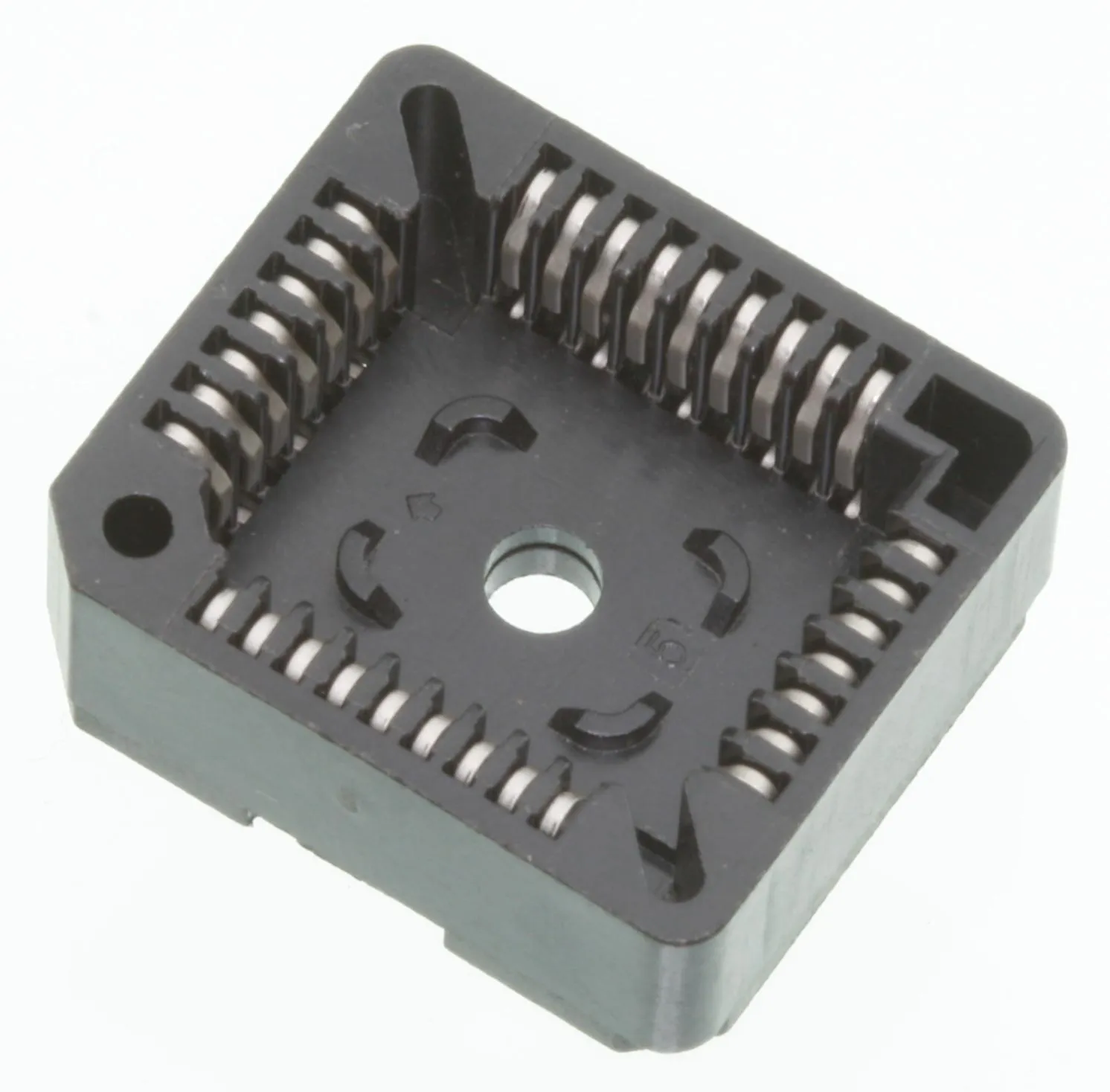

PLCC Socket 32Pole Sn PKU=23
Varenummer:
104-290
Varekode: PLCC32-TH
Vægt: 4 g
7 stk.
på lager
Gruppe: F3612
MPE GARRY PLCC Sockets PLCC-sokkel PLCC-32-SMT-TT
Series: 081
Pitch: 1,27mm
| Features |
| • PLCC sockets, solder tail, with precision stamped contacts (acc. JEDEC MO-047 / MO-052) • high-temperature-resistant |
 |
| Technical Specifications |
|
|||||||||||||||
| Insulation Shell: | Thermoplast, Black (UL94V-0) | Contact Material: | CuSn (Phosphor Bronze) | Rated Current: | 1A | Rated Voltage: | 100VRMS | Withstand Voltage (1min.): | 600VRMS | Temperature Range: | -40...+85°C | Processing Temperature, Max.: | +260°C for 10 Seconds | ||
|
|||||||||||||||

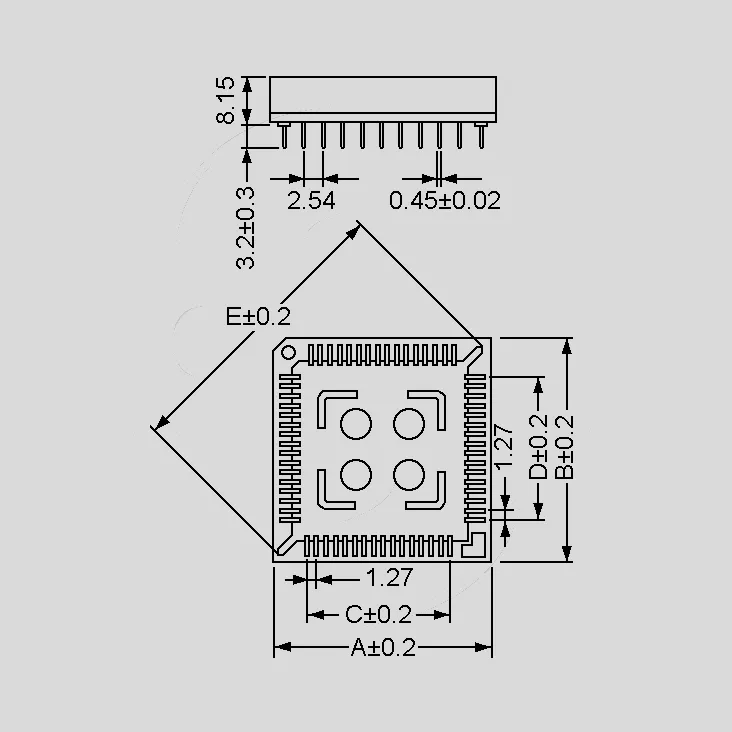

| Dimensions |
| PLCC_ | A | B | C | D | E | [mm] | [mm] | [mm] | [mm] | [mm] | 20-TH | 15,56 | 15,56 | 5,08 | 5,08 | 18,20 | 28-TH | 18,10 | 18,10 | 7,62 | 7,62 | 21,70 | 32-TH | 18,10 | 20,64 | 7,62 | 10,16 | 23,65 | 44-TH | 23,18 | 23,18 | 12,70 | 12,70 | 28,80 | 52-TH | 25,72 | 25,72 | 15,24 | 15,24 | 32,50 | 68-TH | 30,80 | 30,80 | 20,32 | 20,32 | 40,00 | 84-TH | 35,88 | 35,88 | 25,40 | 25,40 | 47,15 | |||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = see part description |
|
| Manufacturer |
 |
| http://www.mpegarry.de |
|
