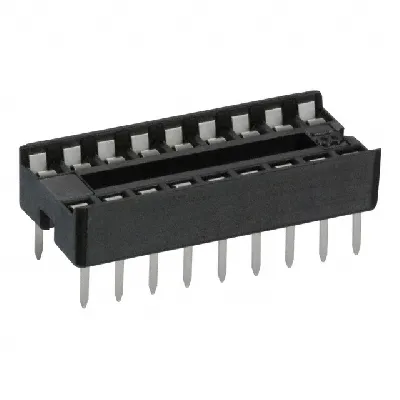

LC-IC Socket 18pole 7,62mm
Varenummer:
104-257
Varekode: DIL18EMF
Vægt: 2 g
137 stk.
på lager
Gruppe:
F3532
Low Cost DIP/DIL-IC Sockets
Series: DIL_EMF
Pitch: 2,54mm
Low Cost DIP/DIL-IC Sockets
Series: DIL_EMF
Pitch: 2,54mm
| Technical Specifications |
 | |
| Insulator: | Thermoplastic Polyester |
| Glass-filled, UL94V-0 | |
| Contact: | Phosphor Bronze, Tin-plated |
| |
| Dimensions |
| DIL_ | A | B | C | PKU |
| [mm] | [mm] | [mm] | [Pieces] | |
| 06EMF | 7,62 | 10,0 | 7,62 | 80 |
| 08EMF | 10,06 | 9,96 | 7,62 | 60 |
| 14EMF | 17,68 | 9,96 | 7,62 | 34 |
| 16EMF | 20,22 | 9,96 | 7,62 | 30 |
| 18EMF | 22,76 | 9,96 | 7,62 | 26 |
| 20EMF | 22,86 | 9,96 | 7,62 | 24 |
| 24EMFS | 30,38 | 17,68 | 7,62 | 20 |
| 24EMF | 30,38 | 17,68 | 15,24 | 20 |
| 28EMF | 35,46 | 17,68 | 15,24 | 17 |
| 32EMF | 40,50 | 17,68 | 15,24 | 15 |
| 40EMF | 50,70 | 17,68 | 15,24 | 12 |
| ||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = see Table |
|
| Manufacturer |
| Various |
|
Inkl. moms
Kr. 3,89
- v/10 – Kr. 2,59
- v/25 – Kr. 1,62
- v/100 – Kr. 0,97
- v/1000 – Kr. 0,49
LC-IC Socket 18pole 7,62mm
104-257
/ DIL18EMF
137 stk.
på lager
Gruppe:
F3532
Low Cost DIP/DIL-IC Sockets
Series: DIL_EMF
Pitch: 2,54mm
Low Cost DIP/DIL-IC Sockets
Series: DIL_EMF
Pitch: 2,54mm
| Technical Specifications |
| |
| Insulator: | Thermoplastic Polyester |
| Glass-filled, UL94V-0 | |
| Contact: | Phosphor Bronze, Tin-plated |
| |
| Dimensions |
| DIL_ | A | B | C | PKU |
| [mm] | [mm] | [mm] | [Pieces] | |
| 06EMF | 7,62 | 10,0 | 7,62 | 80 |
| 08EMF | 10,06 | 9,96 | 7,62 | 60 |
| 14EMF | 17,68 | 9,96 | 7,62 | 34 |
| 16EMF | 20,22 | 9,96 | 7,62 | 30 |
| 18EMF | 22,76 | 9,96 | 7,62 | 26 |
| 20EMF | 22,86 | 9,96 | 7,62 | 24 |
| 24EMFS | 30,38 | 17,68 | 7,62 | 20 |
| 24EMF | 30,38 | 17,68 | 15,24 | 20 |
| 28EMF | 35,46 | 17,68 | 15,24 | 17 |
| 32EMF | 40,50 | 17,68 | 15,24 | 15 |
| 40EMF | 50,70 | 17,68 | 15,24 | 12 |
| ||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = see Table |
|
| Manufacturer |
| Various |
|
