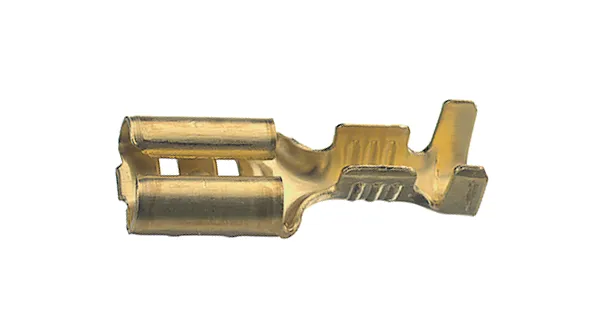

Kabelsko Spade Hun uisoleret 6,3x0,8 1,5mm2 Til Crimptang
Varenummer:
104-021
Varekode: FH63X08M1-L
Vægt: 0 g
55 stk.
på lager
Bestil nu for afsendelse mandag d. 12/10
Yderligere 400 stk. kan skaffes fredag d. 23/10
Gruppe: F1315
FCI, VOGT Flat Receptacles
Series: FH63X, FHI63X
For Crimping
Width: 6,3mm
| Features |
| • Flat receptacles for crimping • In accordance with DIN46247 T3, DIN46254 T3, DIN46345 T1 • Made of brass, some parts with coloured sleeve |
 |
| Technical Specifications |
| Part Nr. | qRated | Fitting to | Material/ | [mm2] | Plug | Surface | FH63X08RT | 0,5...1,0 | 6,3x0,8 | CuZn/Sn | FH63X08BL | 1,5...2,5 | 6,3x0,8 | CuZn/Sn | FH63X08GE | 4,0...6,0 | 6,3x0,8 | CuZn/Sn | FH63X08M1-L | 0,5...1,5 | 6,3x0,8 | CuZn | FH63X08M2-L | 1,5...2,5 | 6,3x0,8 | CuZn | FHI63X08RT | 0,5...1,0 | 6,3x0,8 | CuZn/Sn | FHI63X08BL | 1,0...2,5 | 6,3x0,8 | CuZn/Sn | |||||
| _RT = Red Insulation Sleeve, _BL = Blue Insulation Sleeve, _GE = Yellow Insulation Sleeve, qRated = Crimping Conductor Cross Section, CuZn = Brass, CuZn/Sn = Brass, Tin-plated | |||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||
| Dimensions |
| Part Nr. | A1 | A2 | L1 | L2 | L3 | s | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | FH63X08RT | - | - | 22,0 | 7,4 | - | 0,45 | FH63X08BL | - | - | 22,0 | 7,4 | - | 0,45 | FH63X08GE | - | - | 22,0 | 7,4 | - | 0,45 | FH63X08M1-L | 9,0 | 4,5 | 19,0 | 7,5 | 4,0 | 0,45 | FH63X08M2-L | 9,0 | 4,5 | 19,0 | 7,5 | 4,0 | 0,45 | FHI63X08RT | - | - | 21,0 | 7,4 | - | 0,45 | FHI63X08BL | - | - | 21,0 | 7,4 | - | 0,45 | ||||||||
| s = Material Strength | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Note |
| You will find suitable crimping tools in our red "Components and Devices" catalogue at product group T4611, part EWZ230C (for non-insulated flat tabs and flat receptacles) or EWZ301 (for insulated flat tabs and flat receptacles). |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 100 pieces |
|
| Manufacturer |
FCI,  |
| http://www.vogt.ch |
|
Inkl. moms
v/10
Kr. 2,39
- v/100 – Kr. 1,07
- v/1000 – Kr. 0,81
