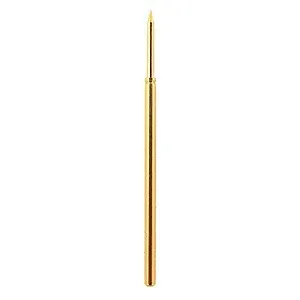

Test Probe D 1,5N Ni 0,9mm
Varenummer:
103-975
Varekode: PFK1025E-D
Vægt: 0 g
10 stk.
på lager
Gruppe: F1114
PTR Test Probes
Series: 1025E
For Electrical Testing
Pitch: 2,54mm
Features
| Test probes are used in the electrical testing of dismantled and assembled PCBs, components and wired sections of compatible test units. |
 |
| Material |
|
|
| Barrel: | Bronze, Gold-plated |
| Spring: | Spring Steel, Gold-plated |
| Plunger: | Steel |
| Receptacle: | Bronze, Gold-plated |
|
|
| Technical Specifications |
| Part Nr. | Hmax | Ha | Fa | Imax | Rtyp |
| [mm] | [mm] | [N] | [A] | [mOhm] | |
| PFK1025E-B | 6,40 | 4,30 | 1,50 | 5,0 | £20 |
| PFK1025E-C | 6,40 | 4,30 | 1,50 | 5,0 | £20 |
| PFK1025E-D | 6,40 | 4,30 | 1,50 | 5,0 | £20 |
| PFK1025E-H | 6,40 | 4,30 | 1,50 | 5,0 | £20 |
| Hmax = Max. Travel, Ha = Working Travel, Fa = Spring Force at Working Travel, Imax = Rated Current, Max., Rtyp = Contact Resistance, Typ. | |||||
|
|||||
| Probe |
| Part Nr. | Form | Diameter | Surface |
| [mm] | |||
| PFK1025E-B | B | 0.9 | Ni |
| PFK1025E-C | C | 1,5 | Rh |
| PFK1025E-D | D | 0.9 | Ni |
| PFK1025E-H | H | 1,5 | Ni |
|
|||
| PFK1025HL |
| Holder for Test Probe PFK1025E_ |
|
| Features |
| Holder with solder terminals |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
