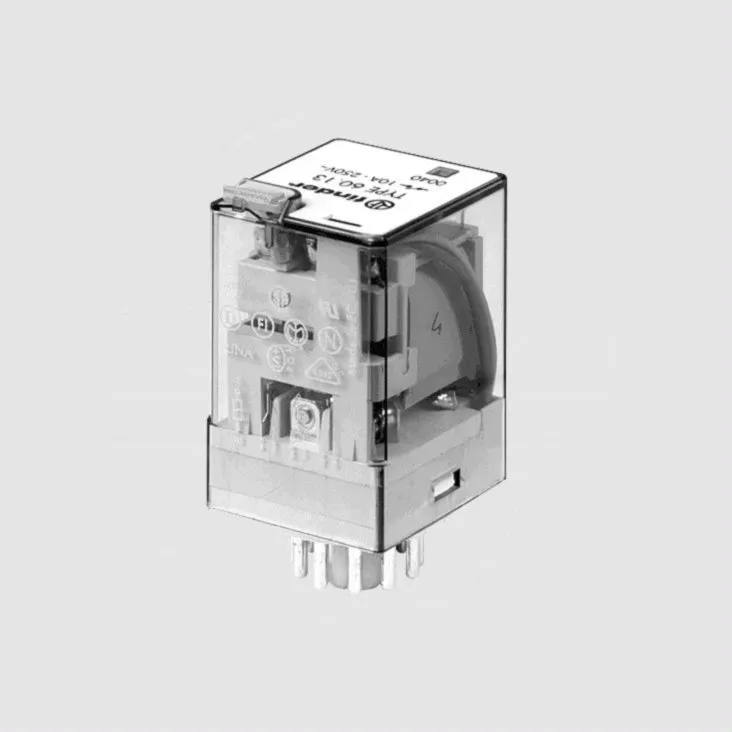

Ind. Relay 3PDT 10A 110V 9420R
Varenummer:
103-959
Varekode: 60.13.9.110.0040
0 stk.
på lager
Ved bestilling nu, får vi dem hjem onsdag d. 14/10
Specifikationer
| Spolemodstand | 9.42 kΩ |
|---|---|
| Relæ kontakt | 3PDT |
| Spolespænding | 110 V |
| Mærkestrøm | 10 A |
- RELAY, 3PCO, 10A, 110VDC
- Relay Type: General Purpose
- Coil Voltage VDC Nom: 110V
- Contact Current Max: 20A
- Contact Voltage AC Nom: 250V
- Coil Resistance: 9.42kohm
- Contact Configuration: 3PCO
- Coil Type: DC
- Coil Current: 11.7mA
- Nom Operating Power: 1.3W
- Relay Mounting: Plug In
- External Height: 51mm
- External Width: 32.5mm
- External Depth: 36.2mm
- SVHC: No SVHC (15-Dec-2010)
- Contact Configuration: 3PCO
- Contact Current AC Max: 10A
- Contact Current DC Max: 10A
- Contact Voltage AC Max: 250V
- External Length / Height: 51mm
- Mounting Type: Plug-In
- No. of Poles: 3
- Operating Temperature Max: 70°C
- Operating Temperature Min: -40°C
- Series: 60
- Approval Bodies: BSI, VDE, CSA, RINA, UL, BEAB, IMQ, SETI, SEMKO, DEMKO
- Coil Operating Lower Percent Limit: 80%
- Coil Operating Upper Percent Limit: 110%
- Contact Material: Silver Nickel
- DC Coil Power: 1.3W
- Dielectric Strength VDC: 2000V
- Operating Time: 9ms
- Release Time: 9ms
- Switch Current Max: 20A
- Switched Current Max: 20A
- Switched Voltage Max: 400V
