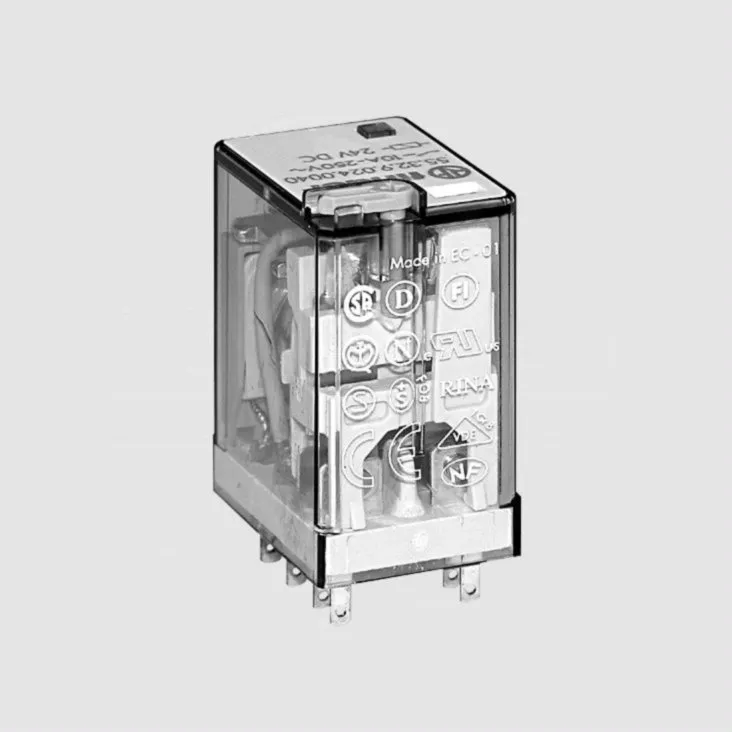

Ind. Relay DPDT 10A 230VAC 17k LED

Name: Ind. Relay DPDT 10A 230VAC 17k LED
SKU: 103945
Price: 215.63 DKK
Availability: OutOfStock

Varenummer: 103-945

Varekode: F5532-AC230L

Vægt: 36 g

0 stk. på lager

Kontakt os for at få oplyst leveringstid

Vis lignende produkter i kategorien "Industrirelæer"

Specifikationer

Relæ kontakt	DPDT
Spolespænding	230 V
Spolemodstand	17 kΩ
Mærkestrøm	10 A

Gruppe: E6623
FINDER Industrial Relays
Series: 55
Contact: DPDT or 4PDT
Rated Current: 7A and 10A
Housing: 27,7x20,7x37,2mm

Features

Lockable test button and mechanical flag indicator
F5534-24LD: Lockable test button and LED
Solder/plug-in terminals 2,0x0,5mm
Relays protection class RTI

Technical Specifications



Contact
F5532-_:	DPDT
F5534-_:	4PDT
Contact Material
F5532-_/34-_:	AgNi
F5534-_G:	AgNi+Au (5µm)
Rated Current
F5532-_:	10A
F5534-_:	7A
Max. Switching Current
F5532-_:	20A
F5534-_:	15A
Max. Switching Voltage
F5532-_:	400V AC
F5534-_:	250V AC
Max. Switching Power
F5532-_:	2500VA
F5534-_:	1750VA
Operate/Release Time:	9/3ms
Testing Voltage
Coil/Contact:	4000V
Opening Contact:	1000V
Lifetime
Mechanical (AC/DC):	20x10⁶ / 50x10⁶ Operations
Electrical
F5532-_:	200x10³ Operations
F5534-_:	150x10³ Operations
Operating Temperature:	-40...+85C

Coil Data


Part Nr.	U_N	U_min.	U_max.	I_N	P_N	R_N
	[V AC/DC]	[V]	[V]	[mA]	[mW/VA]	[W]
F5532-24	24	19,2	26,4	40	1000	600
F5532-AC230	230	184	253	6	1,5	17000
F5534-12_	12	9,6	13,2	86	1000	140
F5534-24_	24	19,2	26,4	40	1000	600
F5534-AC230_	230	184	253	6,3	1,5	17000
U_N = Rated Voltage, U_min. = Minimum Operating Voltage, U_max. = Maximum Operating Voltage, I_N = Rated Current, P_N = Rated Power, R_N = Coil Resistance; All Specifications Measured at 20C

Note

Assembly by direct soldering in the PCB or
Terminal socket F9414 with retaining clip F09451, see product group E6625, or
Screw socket DIN-rail assembly F9474 (with retaining clip F09471) or F94843 (with retaining clip F09491), see product group E6625

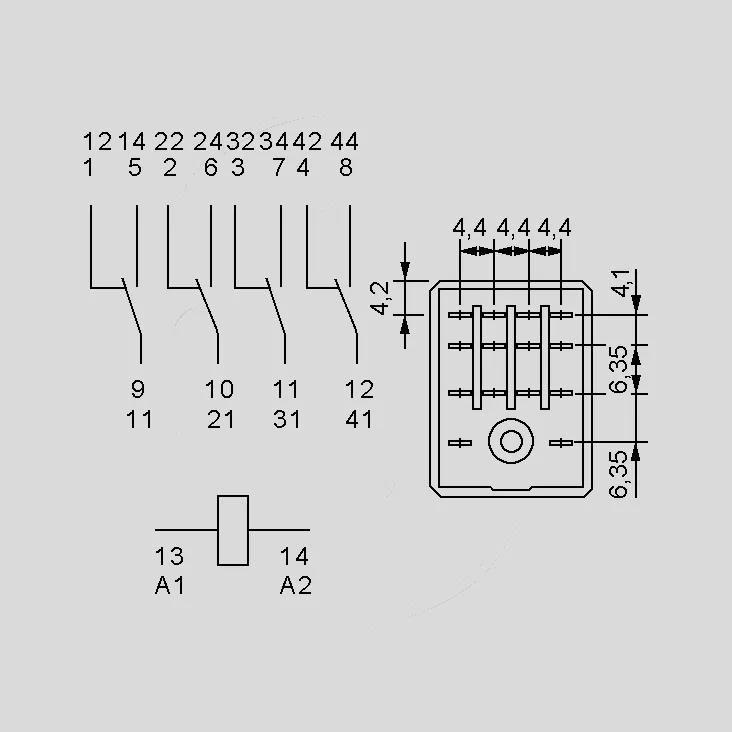

Labelling

Approvals

Terms of Delivery

Minimum order quantity: 1 PKU = 5 pieces

Manufacturer

http://www.findernet.com

Inkl. moms

Kr. 215,63

v/10 – Kr. 161,72
v/25 – Kr. 134,77
v/100 – Kr. 107,81
v/1000 – Kr. 80,86
