Relay 24V DPDT 8A 1440R LED

Varenummer: 103-943
Varekode: XT484-LC4
Vægt: 17 g
0 stk. på lager
Kontakt os for at få oplyst leveringstid
Vis lignende produkter i kategorien "2 skifte-kontakt"
Gruppe:
E6616
TE Industrial Relays
Series: XT
Contact: SPDT or DPDT
Rated Current: 16A and 8A

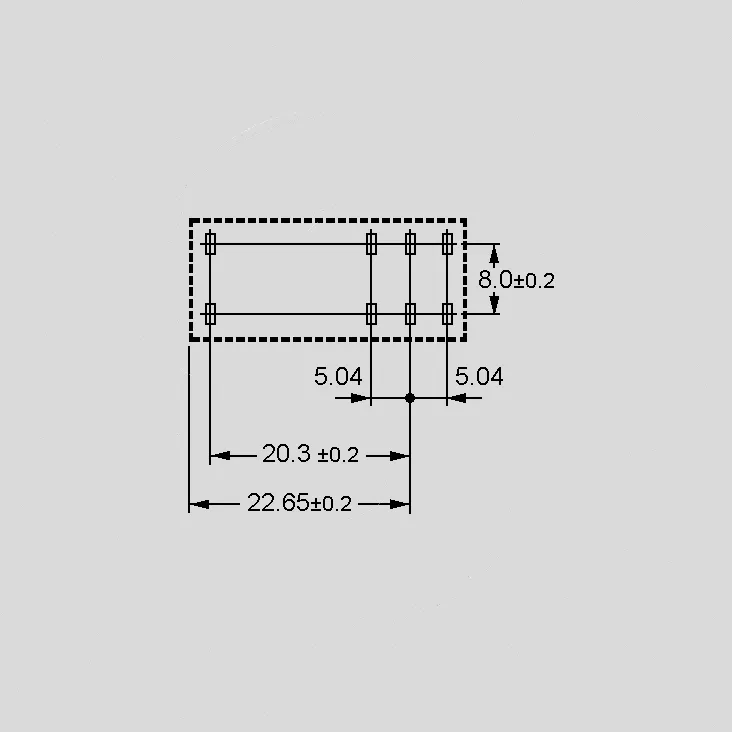

Housing: 29,0x13,7x25,6mm
Features
Industrial Relays with Solder/plug-in terminals
Versions with AC coil or 400mW sensitive DC coil
4kV/8mm coil-contact
Relays protection class RTII
Technical Specifications
Contact
XT374_:
SPDT
XT484_:
DPDT
Contact Material:
AgNi 90/10
Rated Current
XT374_:
16A
XT484_:
8A
Max. Switching Current
XT374_:
30A
XT484_:
15A
Max. Switching Voltage:
400V AC
Max. Switching Power
XT374_:
4000VA
XT484_:
2000VA
Creepage/Clearance:
³8/8mm
Operate/Release Time:
9/6ms
Testing Voltage
Coil/Contact:
4000Vrms
Contact/Contact:
2500Vrms
Opening Contact:
1000Vrms
Lifetime
Mechanical (DC):
>10x106 Cycles
Mechanical (AC):
>5x106 Cycles
Operating Temperature:
-40...+70C
Weight Approx.:
16g
Coil Data
Part Nr.
UN
UAn
UAb
PN
RN
[V DC/AC]
[V]
[V]
[mW/VA]
[W]
XT374-LC424
16,8
2,4
400
1440
XT374-T30230
172,5
34,5
0,74
32500
XT484-LC424
16,8
2,4
400
1440
XT484-T30230
172,5
34,5
0,74
32500
UN = Rated Voltage, UAn = Operate Voltage, UAb = Release Voltage, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20C
Approvals

Terms of Delivery
Minimum order quantity: 1 PKU = 5 pieces
Manufacturer
TE Connectivity
http://www.te.com
Inkl. moms
Kr. 82,50
  • v/10 – Kr. 61,88
  • v/25 – Kr. 51,56
  • v/100 – Kr. 41,25
  • v/1000 – Kr. 30,94
