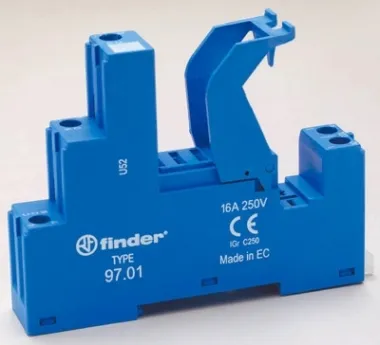

DIN Rail Socket for Series 46, 97.01/1 skifte
Varenummer:
103-934
Varekode: F9701
Vægt: 46 g
5 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 1032 stk. kan skaffes torsdag d. 29/10
Gruppe:
E6615
FINDER Sockets and Accessories
for Relays 46 Series
E6615
FINDER Sockets and Accessories
for Relays 46 Series
| F9702, F9701 |
| Screw terminal snap-on mounting |
 |
| Features |
| • Screw sockets with integrated terminal for indicator and suppression moduls series FM9902_ • According to VDE0106, EN50178, EN60204 • Contact rating: 8A/250V aor 16A/250V • Dielectric strenght: 6kV • Ambient temperature: -40...+70°C • Colour: blue • For relays series 46 (see note) • Suitable retain and release clip F09701 (optional) |
|
| Approvals |
   |
|
| F9752, F9751 |
| Screw terminal with spring terminals and with integrated snap-on mounting |
|
| Features |
| • For time-saving wiring • Screw terminal for 35mm snap-on mounting rail for display and suppression FM9902_ • "Safe separation" according to VDE0106, EN50178, EN60204 between coil and contacts • Contact rating: 8A/250V or 16A/250V • Dielectric strength: 6kV • Temperature range: -25...+70°C • Colour: blue • Suitable for relays series 46 (see note) • Suitable retaining clip supplied F09701 |
|
| Approvals |
| |
|
| F09701 |
|
| Features |
| • Plastic retain and release clip • for F97_ sockets supplied with relays from the F46 series (see note) |
|
| Approvals |
| |
|
| FM9902_ |
| Coil indication and EMC suppression modules |
|
| Features |
| • for F9751 and F9752 sockets • FM99023D: Diode, 6...220V DC • FM99029DL-24: Diode and LED,, 6...24V DC • FM99020DV-230: LED and Varistor, 110...240V DC/AC |
|
| Note |
| • You will find suitable relays series 46 in product group E6611. |
|
| Approvals |
| |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.findernet.com |
|
