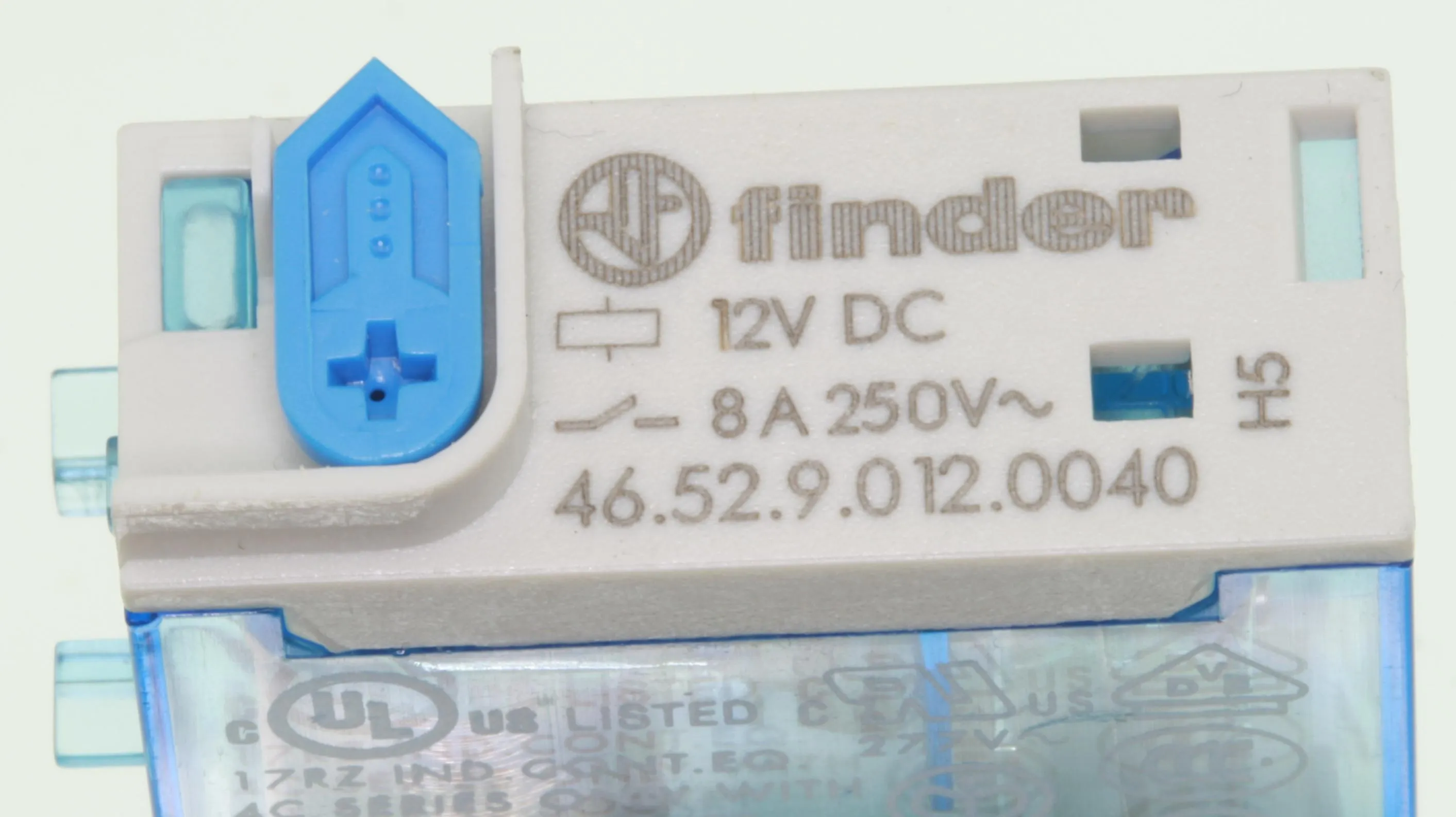

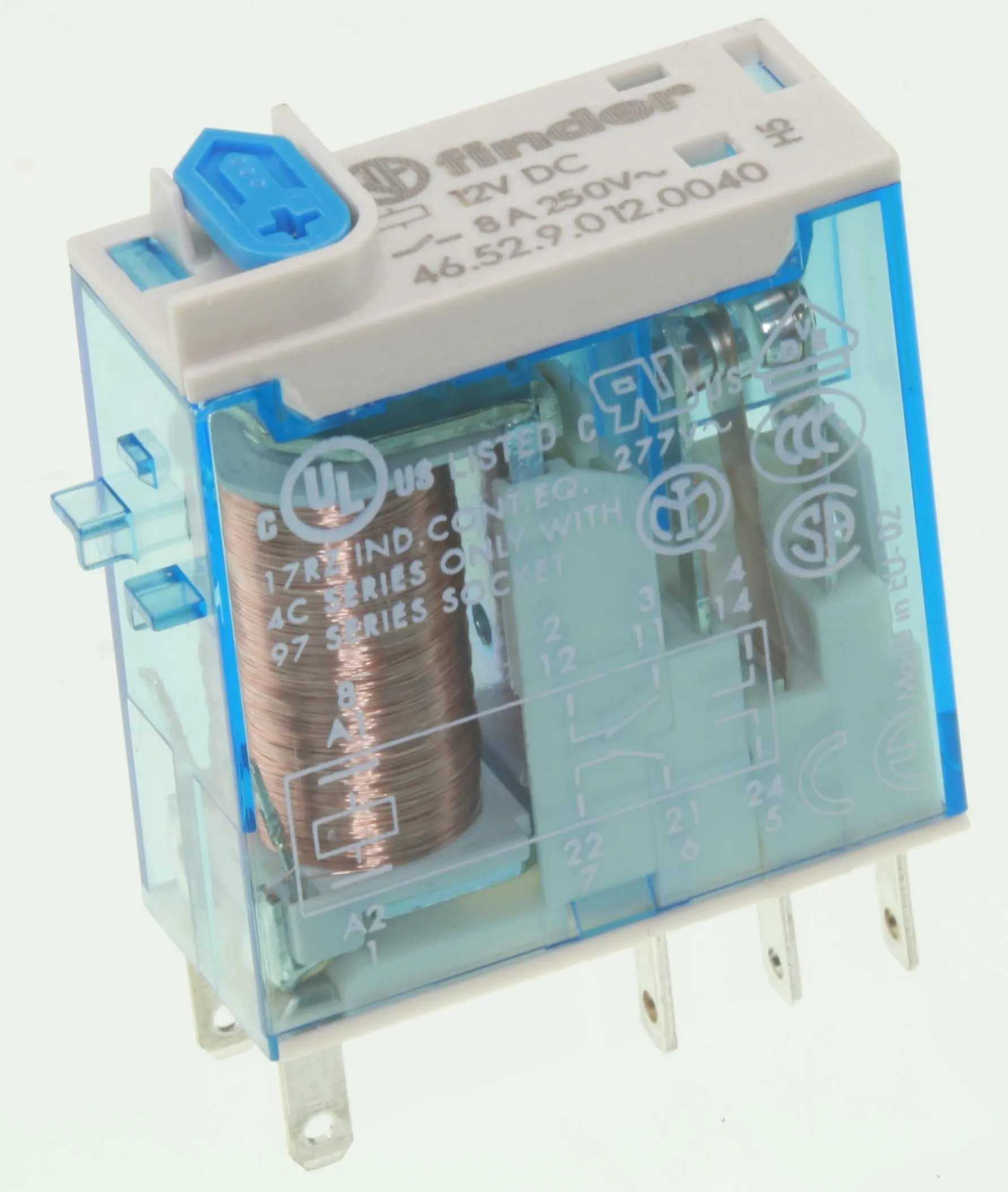

Finder Relæ 12VDC/500mW/300R
Varenummer:
103-924
Varekode: F4652-12
Vægt: 20 g
5 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 15 stk. kan skaffes tirsdag d. 20/10
Gruppe:
E6611
FINDER Industrial Relays
Series: 46
Contact: DPDT, SPDT
Rated Current: 8A and 16A

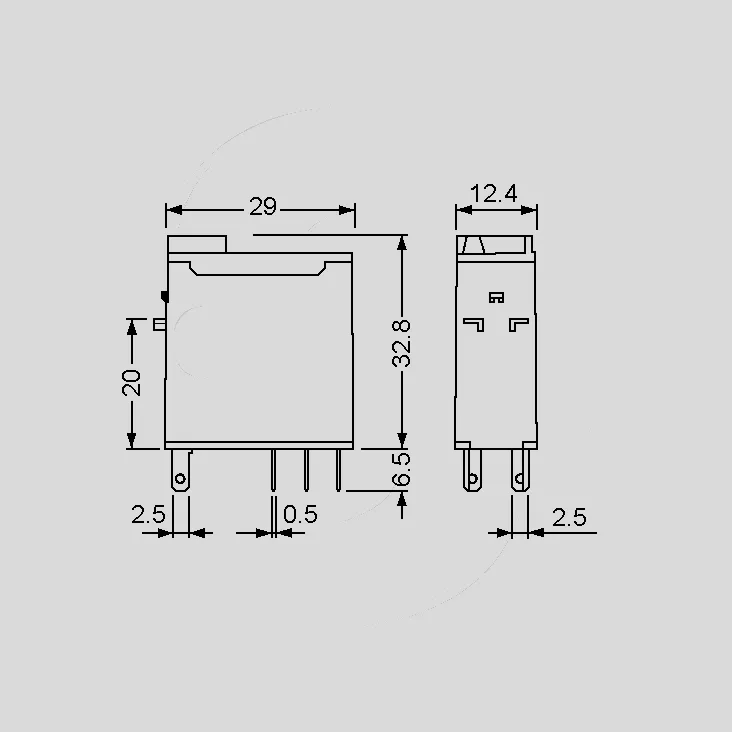

Housing: 29x12,4x32,8mm
| Features |
| • Socket mount or direct connection via Faston connectors • AC coils & DC coils sensitive (500mW) • Available with: lockable test button, mechanical indicator • Relays protection class RTII |
 |
| Technical Specifications |
|
|||||||||||||||||||||||||||||||||||||||||||||||||
| Contact | F4652-_: | DPDT | F4661-_: | SPDT | Contact Material: | AgNi | Rated Current | F4652-_: | 8A | F4661-_: | 16A | Max. Switching Current | F4652-_: | 15A | F4661-_: | 25A | Max. Switching Voltage: | 440V AC | Max. Switching Power | F4652-_: | 2000VA | F4661-_: | 4000VA | Operate/Release Time | F4652-_: | 10/3ms | F4661-_: | 15/5ms | Testing Voltage | Coil/Contact: | 6000V | Opening Contact: | 1000V | Lifetime | Mechanical: | 10x106 Cycles | Electrical: | 10x104 Cycles | Operating Temperature: | -40...+70°C | |||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||
| Coil Data |
| Part Nr. | UN | Umin. | Umax. | IN | PN | RN | [V AC/DC] | [V] | [V] | [mA] | [mW] | [W] | F46_-12 | 12 | 8,8 | 13,2 | 40 | 500 | 300 | F46_-24 | 24 | 17,5 | 26,4 | 20 | 500 | 1200 | F46_-AC24 | 24 | 19,2 | 26,4 | 45 | - | 320 | F46_-AC230 | 230 | 184 | 253 | 5 | - | 28000 | ||||||||
| UN = Rated Voltage, Umin. = Minimum Operating Voltage, Umax. = Maximum Operating Voltage, IN = Rated Current, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°C | ||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||
| Note |
| • Assembly by direct soldering in the PCB or • Screw socket DIN-rail assembly F9702, F9752 with retaining clip F0901, see product group E6615 |
|
| Norms |
| Secure separation between coil and contacts with VDE0106, EN50178, EN60204 and EN60335. |
|
| Labelling |
 |
|
| Approvals |
     |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.findernet.com |
|
