Relay DPDT 10/20A 24V 900R AgSnO2 44.62.7.024.4000
Varenummer:
103-910
Varekode: F4462-24C
Vægt: 23 g
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
- RELAY, DPCO, 24VDC, 10A, PCB
- Relay Type: Miniature
- Coil Voltage VDC Nom: 24V
- Contact Current Max: 20A
- Contact Voltage AC Nom: 250V
- Coil Resistance: 1.2kohm
- Contact Configuration: DPDT-CO
- Coil Type: DC Sensitive
- Coil Current: 20mA
- Nom Operating Power: 500W
- Relay Mounting: Through Hole

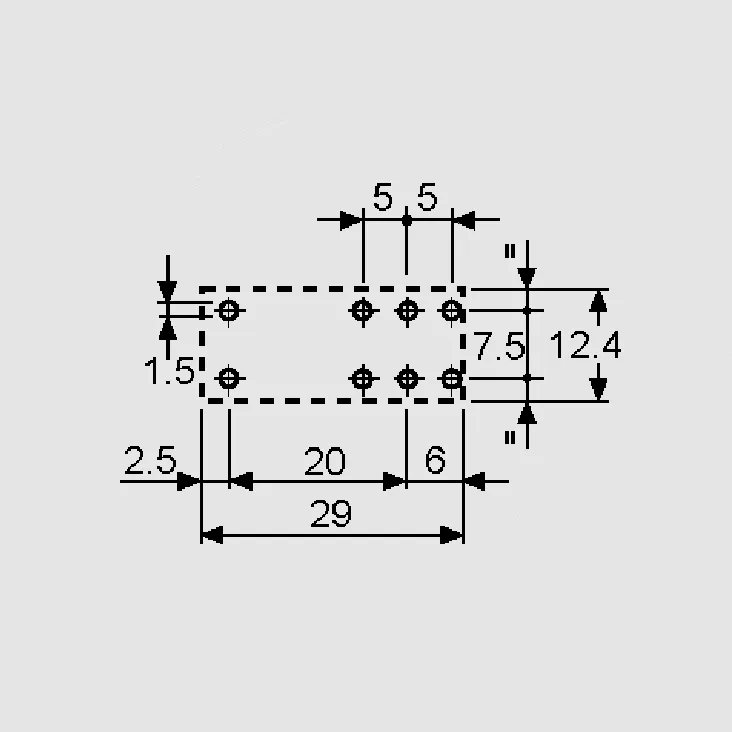

- External Height: 25mm
- External Width: 29mm
- External Depth: 12.4mm
- SVHC: No SVHC (19-Dec-2012)
- Coil Operating Upper Percent Limit: 150%
- Current Rating: 10A
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Time: 12ms
- PCB Hole Diameter: 1.5mm
- Release Time: 5ms
Relay DPDT 10/20A 24V 900R AgSnO2 44.62.7.024.4000
103-910
/ F4462-24C
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
- RELAY, DPCO, 24VDC, 10A, PCB
- Relay Type: Miniature
- Coil Voltage VDC Nom: 24V
- Contact Current Max: 20A
- Contact Voltage AC Nom: 250V
- Coil Resistance: 1.2kohm
- Contact Configuration: DPDT-CO
- Coil Type: DC Sensitive
- Coil Current: 20mA
- Nom Operating Power: 500W
- Relay Mounting: Through Hole
- External Height: 25mm
- External Width: 29mm
- External Depth: 12.4mm
- SVHC: No SVHC (19-Dec-2012)
- Coil Operating Upper Percent Limit: 150%
- Current Rating: 10A
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Time: 12ms
- PCB Hole Diameter: 1.5mm
- Release Time: 5ms
