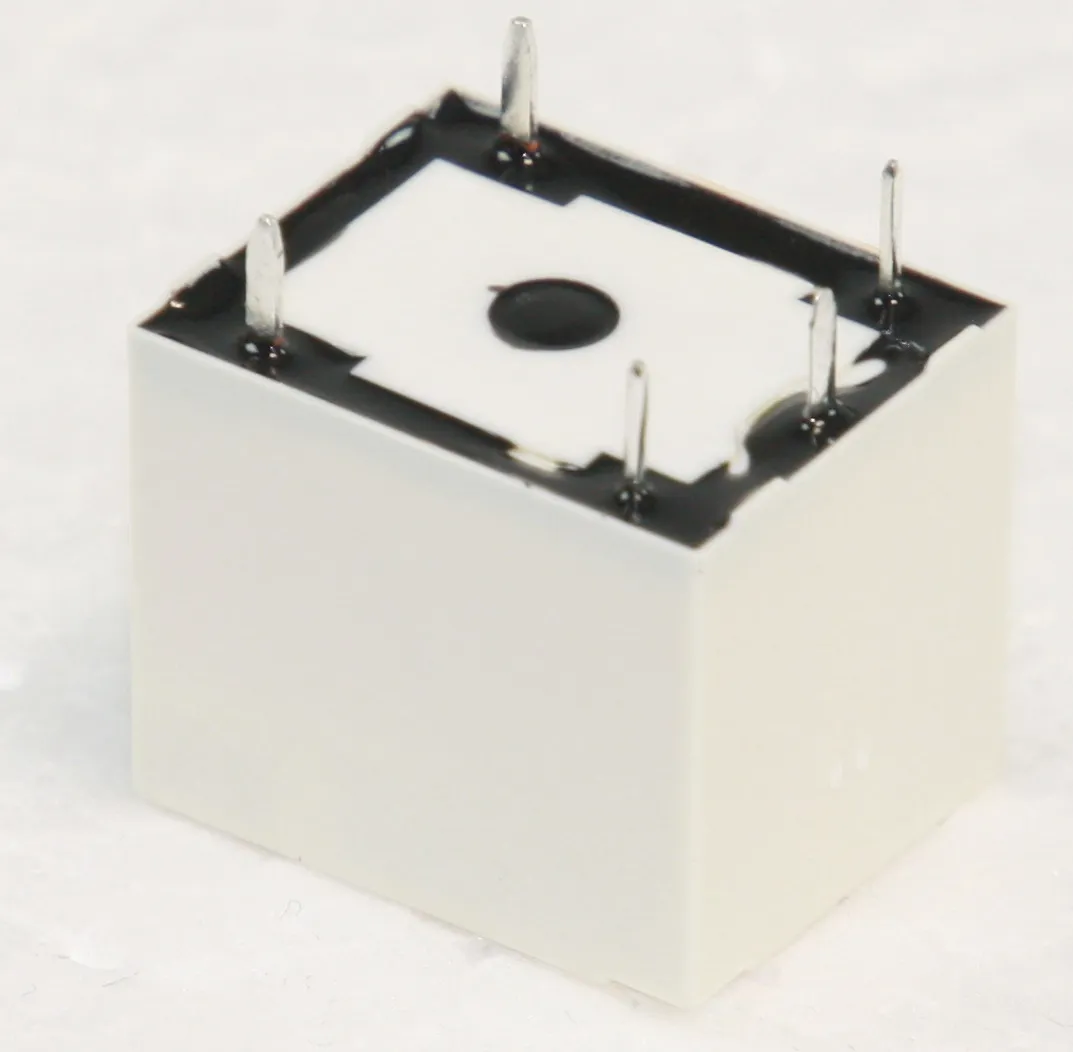

Relay SPDT 10A 24V 1600R 36.11.9.024.4011
Varenummer:
103-902
Varekode: F36119-024A
Vægt: 15 g
77 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 375 stk. kan skaffes mandag d. 9/11
Specifikationer
| Relæ kontakt | SPDT |
|---|---|
| Spolespænding | 24 V |
| Spolemodstand | 1.6 kΩ |
| Mærkestrøm | 10 A |
| Features |
| • Smaller size • Wash tight enclosure • Coil 360mV • Relays protection class RTIII |
 |
| Technical Specifications |
|
|
| Contact: | SPDT |
| Contact Material: | AgSnO2 |
| Rated Current: | 10A |
| Max. Switching Current: | 15A |
| Max. Switching Voltage: | 250V AC |
| Max. Switching Power: | 2500VA |
| Operate/Release Time: | 9/3ms |
| Testing Voltage | |
| Coil/Contact: | 4000V AC |
| Opening Contact: | 1000V AC |
| Lifetime | |
| Mechanical: | 10x106 Operations |
| Electrical: | 10x104 Operations |
| Operating Temperature: | -40...+85°C |
|
|
| Coil Data |
| Part Nr. | UN | Umin. | Umax. | IN | RN |
| [V DC] | [V] | [V] | [mA] | [Ohm] | |
| F36119-003A | 3 | 2,2 | 3,9 | 120 | 25 |
| F36119-005A | 5 | 3,7 | 6,5 | 72 | 70 |
| F36119-006A | 6 | 4,5 | 7,8 | 60 | 100 |
| F36119-009A | 9 | 6,7 | 11,7 | 40 | 225 |
| F36119-012A | 12 | 9 | 15,6 | 30 | 400 |
| F36119-024A | 24 | 18 | 31,2 | 15 | 1600 |
| F36119-048A | 48 | 36 | 62,4 | 7,5 | 6400 |
| UN = Rated Voltage, Umin. = Minimum Operating Voltage, Umax. = Maximum Operating Voltage, IN = Rated Current, RN = Coil Resistance; All Specifications Measured at 20°C | |||||
|
|||||
| Approvals |
  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 25 pieces |
|
| Manufacturer |
 |
