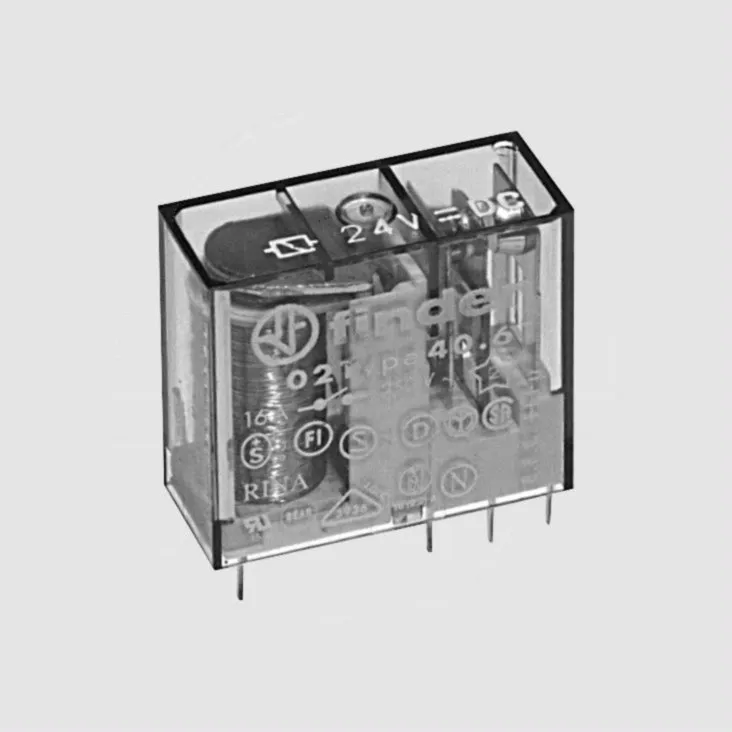

Relay SPDT 16A 230VAC 28K 40.61.8.230.4000
Varenummer:
103-896
Varekode: F4061-AC230A
Vægt: 17 g
2 stk.
på lager
Specifikationer
| Relæ kontakt | SPDT |
|---|---|
| Spolemodstand | 28 kΩ |
| Spolespænding | 230 V |
| Mærkestrøm | 16 A |
Gruppe:
E6416
FINDER Power PCB Relays
Series: 40.61
Contact: SPDT
Rated Current: 16A
Housing: 29,0x12,4x25,0mm
E6416
FINDER Power PCB Relays
Series: 40.61
Contact: SPDT
Rated Current: 16A
Housing: 29,0x12,4x25,0mm
| Features |
| • Versions with DC or AC coil • Flux protection (260°C, 5s) • Relay protection class RTII |
 |
| Technical Specifications |
| |
| Contact: | SPDT (Double Contact) |
| Contact Material: | |
| F4061-12, -24: | AgCdO |
| F4061-_A: | AgSnO2 |
| Rated Current: | 16A |
| Max. Switching Current: | 30A |
| Max. Switching Voltage: | 400V AC |
| Max. Switching Power (AC/DC): | 750/4000VA |
| Creepage/Clearance: | 8mm |
| Operate/Release Time: | 7/3ms |
| Testing Voltage | |
| Coil/Contact: | 6000V |
| Opening Contact: | 1000V |
| Lifetime | |
| Mechanical (AC/DC): | 10x106/20x106 Opetations |
| Electrical: | 10x104 Operations |
| Operating Temperature: | -40...+85°C |
| |
| Coil Data |
| Part Nr. | UN | Umin. | Umax. | IN | PN | RN |
| [V DC/AC] | [V] | [V] | [mA] | [mW] | [W] | |
| F4061-12 | 12 | 8,8 | 18 | 55 | 650 | 220 |
| F4061-12A | 12 | 8,8 | 18 | 55 | 650 | 220 |
| F4061-24 | 24 | 17,5 | 36 | 27 | 650 | 900 |
| F4061-24A | 24 | 17,5 | 36 | 27 | 650 | 900 |
| F4061-AC230A | 230 | 184 | 253 | 5 | - | 28000 |
| UN = Rated Voltage, Umin. = Minimum Operating Voltage, Umax. = Maximum Operating Voltage, IN = Rated Current, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°C | ||||||
| ||||||
| Note |
| • Assembly by direct soldering in the PCB or • PCB socket F95132 with retaining clip F9551SW rather F95523, see product group E6481, or • DIN rail socket F95833 with retaining clip F95913, see product group E6485 |
|
| Norms |
| The series complies with VDE0106, EN50178, EN60204 and EN60335 secure Separation between coil and contacts. |
|
| Labelling |
 |
|
| Approvals |
          |
|
| Additional Products |
| For contact loads of up to 15V DC/AC or in 5 to 20mA range, relays with silver contacts and hard overlays are recommended; 500 pieces available on request, delivery time approx. 8 weeks. Wash tight version of 500 pieces available on request, delivery time approx. 8 weeks. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces F4061-AC230: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.findernet.com |
|
