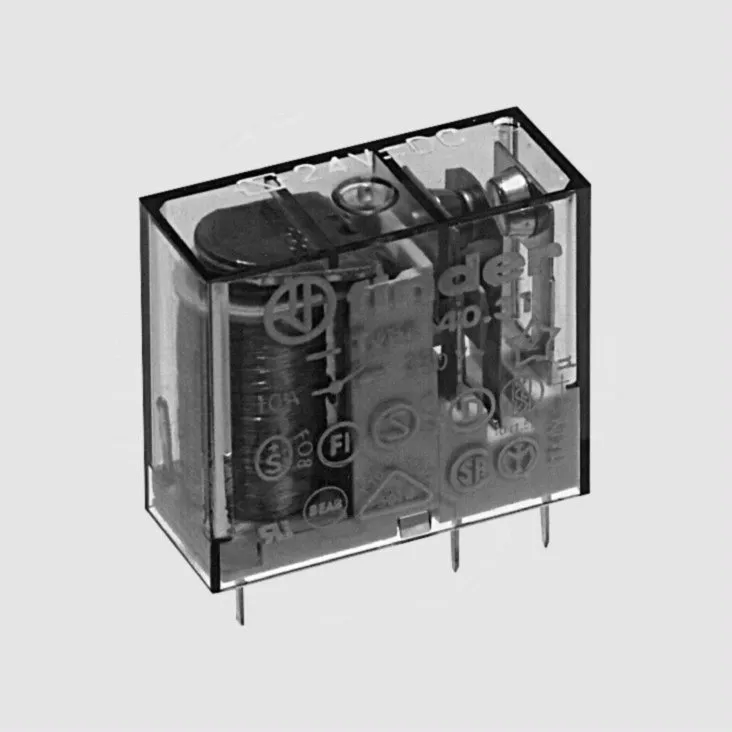

PCB Relay SPDT 10A 12V 300R sensitive 40.31.7.012.0000
Varenummer:
103-890
Varekode: F4031-12S
Vægt: 5 g
11 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 946 stk. kan skaffes onsdag d. 4/11
Specifikationer
| Relæ kontakt | SPDT |
|---|---|
| Spolemodstand | 300 Ω |
| Spolespænding | 12 V |
| Mærkestrøm | 10 A |
Gruppe: E6411
FINDER Power PCB Relays 40.31.9.012.0000
Series: 40.31
Contact: SPDT
Rated Current: 10A

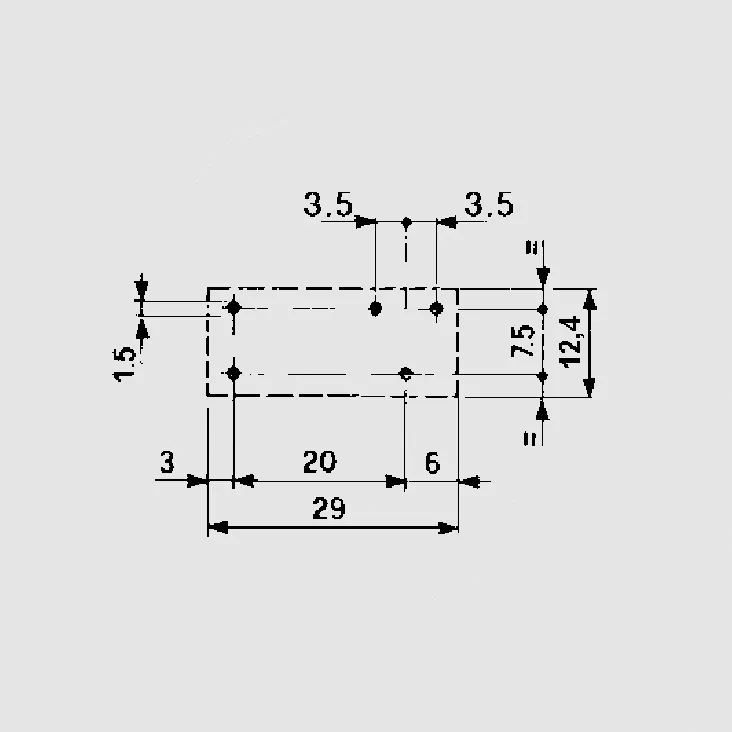

Housing: 29,0x12,4x25,0mm
| Features |
| • F4031-_: vertical, standard • F4031-_S: vertical, sensitive DC coil 500mV • Versions with DC or AC coil • Flux protection (260°C, 5s) • Protection class RTII |
 |
| Technical Specifications |
|
|||||||||||||||||||||||||||||||||||
| Contact: | SPDT | Contact Material: | AgNi | Rated Current: | 10A | Max. Switching Current: | 20A | Max. Switching Voltage: | 400V AC | Max. Switching Power: | 500VA | Creepage/Clearance: | 8mm | Operate/Release Time | Standard: | 7/3ms | Sensitive: | 12/4ms | Testing Voltage | Coil/Contact: | 6000V | Opening Contact: | 1000V | Lifetime | Mechanical (AC/DC): | 10x106/ 20x106 Operations | Electrical: | 20x104 Operations | Operating Temperature: | -40...+85°C | |||||
|
|||||||||||||||||||||||||||||||||||
| Coil Data |
| Part Nr. | UN | Umin. | Umax. | IN | PN | RN | [V DC/AC] | [V] | [V] | [mA] | [mW] | [W] | F4031-12 | 12 | 8,8 | 18 | 55 | 650 | 220 | F4031-12S | 12 | 8,8 | 21 | 40 | 500 | 300 | F4031-24 | 24 | 17,5 | 36 | 27 | 650 | 900 | F4031-24S | 24 | 17,5 | 42 | 20 | 500 | 1200 | F4031-AC230 | 230 | 184 | 253 | 5 | - | 28000 | ||||||||
| UN = Rated Voltage, Umin. = Minimum Operating Voltage, Umax. = Maximum Operating Voltage, IN = Rated Current, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°C | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Note |
| • Assembly by direct soldering intro the PCB or • PCB socket F95132 with retaining clip F9551SW rather F95523, see product group E6481, or • DIN rail socket F95833 with retaining clip F95913, see product group E6485 |
|
| Norms |
| The series complies withVDE0106, EN50178, EN60204 and EN60335 secure separation between coil and contacts. |
|
| Labelling |
 |
|
| Approvals |
          |
|
| Additional Products |
| For contact loads of up to 15V DC/AC or in 5 to 20mA range, relays with silver contacts and hard overlays are recommended; 500 pieces available on request, delivery time 8 weeks. Wash tight version of 500 pieces on request, delivery time 8 weeks. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces F4031-AC230: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.findernet.com |
|
