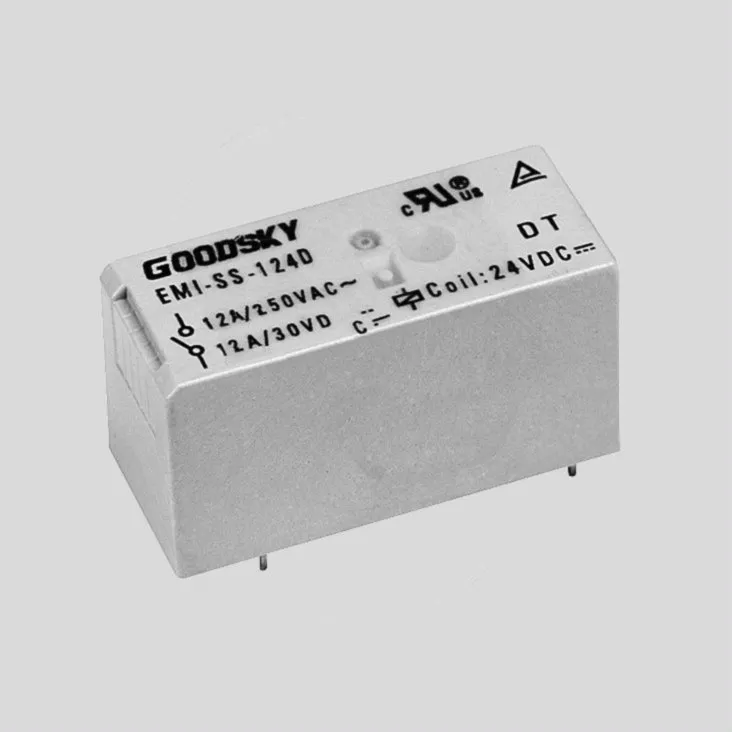

Relay SPDT 16A 24V 1440R
Varenummer:
103-885
Varekode: EZ-SS-124D
Vægt: 14 g
0 stk.
på lager
Ved bestilling nu, får vi dem hjem mandag d. 9/11
Specifikationer
| Relæ kontakt | SPDT |
|---|---|
| Spolespænding | 24 V |
| Mærkestrøm | 16 A |
| Spolemodstand | 1.44 kΩ |
Gruppe:
E6376
GOODSKY Power PCB Relays
Series: EMI, EZ
Contact: SPDT or DPDT
Rated Current: 8A, 12A, 16A
Housing: 29x12,6x15,6mm
GOODSKY Power PCB Relays
Series: EMI, EZ
Contact: SPDT or DPDT
Rated Current: 8A, 12A, 16A
Housing: 29x12,6x15,6mm
| Features |
| Protection class II Insulation to IEC60664 |
 |
| Technical Specifications |
| |
| Contact | |
| EMI-SS-1_: | SPDT |
| EZ-SS-1_: | SPDT |
| EMI-SS-2_: | DPDT |
| Contact Material: | AgNi |
| Rated Current | |
| EMI-SS-1_: | 12A |
| EZ-SS-1_: | 16A |
| EMI-SS-2_: | 8A |
| Max. Switching Voltage: | 250V AC |
| Max. Switching Power | |
| EMI-SS-1_: | 3000VA |
| EZ-SS-1_: | 4000VA |
| EMI-SS-2_: | 2000VA |
| Creepage/Clearance: | >10/10mm |
| Operate/Release Time: | 12/8ms |
| Testing Voltage | |
| Coil/Contact: | ³5000V AC |
| Opening Contact: | ³1000V AC |
| Lifetime | |
| Mechanical: | 10x106 Opetations |
| Electrical: | 1x105 Operations |
| Operating Temperature: | -40...+85C |
| Weight Approx.: | 15g |
| |
| Coil Data |
| Part Nr. | UN | UAn | UAb | IN | PN | RN |
| [V DC/AC] | [V] | [V] | [mA] | [mW] | [W] | |
| E_12D | 12 | 9,6 | 0,6 | 33,3 | 400 | 360 |
| E_24D | 24 | 19,2 | 1,2 | 16,7 | 400 | 1440 |
| E_230A | 230 | 184,0 | 69,0 | 3,42 | 400 | 32500 |
| UN = Rated Voltage, UAn = Operate Voltage, UAb = Release Voltage, IN = Rated Current, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20C | ||||||
| ||||||
| Approvals |
   |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces E_230A: 1 PKU = 5 pieces |
|
| Manufacturer |
| GOODSKY http://www.goodsky.com.tw |
|
Inkl. moms
Kr. 38,38
- v/10 – Kr. 31,91
- v/25 – Kr. 28,67
- v/100 – Kr. 22,94
