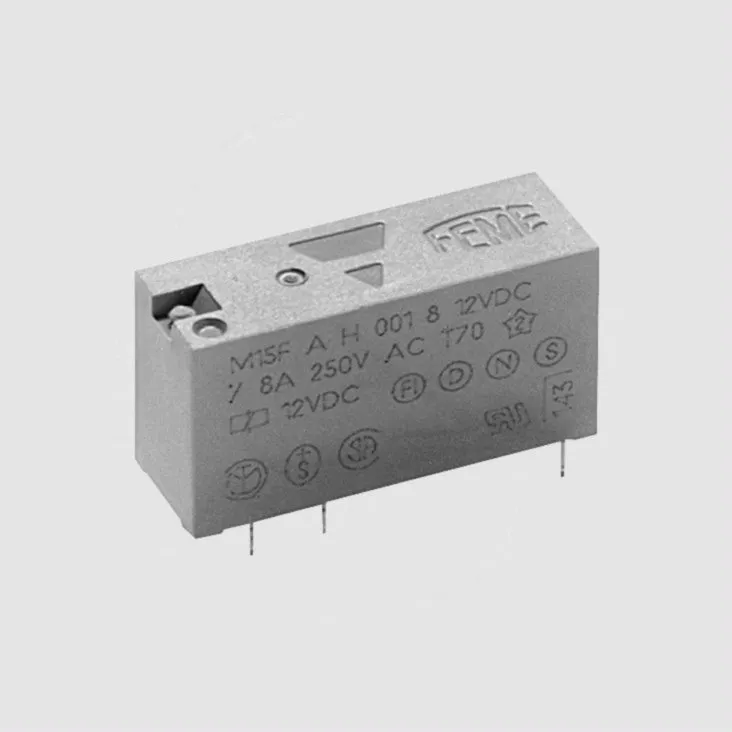

• SPDT
• Sealed according to IP 67 standard
• Very sensitive: operating response only 100mW
• Insulated 4kV/8mm
• High contact force
• Very low contact noise
• Switching capability 8A/250V AC
• Height 15mm, PCB mounting
|
 |
|
|
|
Insulation Resistance (500V DC):
|
2x107MW
|
Test Voltage
|
Open Contact, (1 Min.):
|
1000V AC
|
Coil/Contact/Ground:
|
4000V AC
|
Operating Temperature:
|
-40...+70°C
|
Operate Time, Max. (1,35xVmin., Without Bounce Time):
|
9ms
|
Release Time, Max. (Without Bounce Time):
|
3ms
|
Vibration Resistance (10...100Hz):
|
10G
|
Weight:
|
10g
|
Working Class:
|
C/Continuous
|
|
|
|
|
Configuration:
|
SPDT
|
Contact Material:
|
AgSnO2
|
Rated Current:
|
8A
|
Rated Voltage:
|
250V AC
|
Switching Power, (Ohmic Load) Max.:
|
2000VA
|
Switching Voltage, Max. (VDE0435):
|
380V AC
|
Switching Current, Max.:
|
10A
|
Operating Life
|
Mechanical (20000 Operations/h):
|
30x106 Operations
|
Electrical (8A/250V AC):
|
100 000 Operations
|
|
|
|
|
Coil Type:
|
Monostable
|
Nominal Voltage:
|
See Table
|
Nominal Coil Power:
|
225mW
|
|
|
|
|
|
|
Part Nr.
|
UN
|
Umin.
|
Umax.
|
RN
|
| |
[V DC]
|
[V DC]
|
[V DC]
|
[W]
|
| M15F05A |
5
|
3,4
|
9,0
|
115
|
| M15F12A |
12
|
8
|
21,2
|
640
|
| M15F24A |
24
|
16
|
42,2
|
2550
|
| M15M24A |
24
|
16
|
42,2
|
2550
|
UN = Rated Voltage, Umin. = Minimum Operating Voltage at 20°C, Umax. = Maximum Operating Voltage at 40°C, RN = Winding Resistance, Rated Value at 20°C, ±10% Tolerance
|
|
| Additional Products |
We can also supply on request (minimum order quantity: 500 pieces, delivery time 4 to 8 weeks):
• relays with rated voltages of 1,5 to 8V, 18V, 48V and 110V
• relays with gold-plated silver contacts AgNi
• relays with 5,0mm pitch (M15B_)
|
|
| Manufacturer |
 Feme
|
|
|
