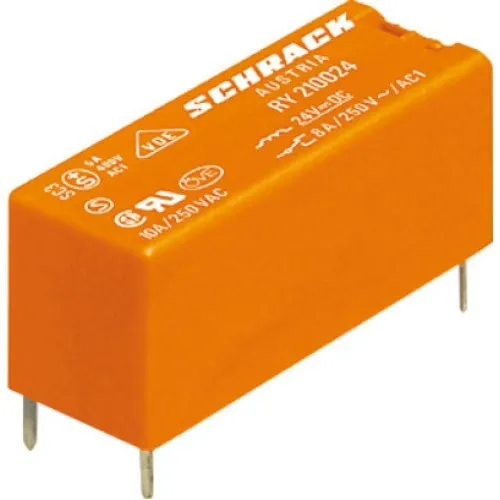

• SPDT
• Flux proof
• Sensitive coil: 220...250mW
• Operating power: approx. 100mW
• Only 12mm in height
• Protective class II (according to VDE0700)
• Insulation category C/250 (according to VDE0110)
• Test voltage: 5kV/8mm |
 |
|
| |
|
Insulation (to VDE0110): |
C/250 |
Insulation Resistance, Max. (500V DC): |
>1 x 104MW |
Dielectric Strength |
Coil/Contact: |
>5000V AC |
Open Contact: |
>1000V AC |
Clearance and Creepage: |
8mm |
Ambient Temperature: |
-40...+70°C (85°C at 6A) |
Operate Time, Typ.: |
7ms |
Release Time, Typ.: |
3ms |
Vibration Resistance (30...150Hz): |
20G |
Weight: |
Approx. 8g |
|
|
| |
|
Contact Configuration: |
SPDT |
Type of Contact: |
Single |
Contact Material |
RYII_: |
AgNi 0,15 |
RY21_: |
AgCdO |
Maximum Breaking Capacity AC: |
2000VA |
Rated Voltage: |
250V AC |
Breaking Voltage AC, Max.: |
440V AC |
Rated Current: |
8A |
Inrush Current (According to UL508 B300): |
30A |
Operating Life |
Mechanical: |
30x106 Operations |
Switching Rate |
Without Load: |
72.000 Operations/h |
At Rated Load: |
360 Operations/h |
|
|
| |
|
Coil Type: |
Monostable |
Nominal Voltage: |
See Table |
Nominal Coil Power: |
220mW |
|
| |
|
|
|
|
|
|
Part Nr. |
UN |
UAn |
UAb |
IN |
RN |
Tol. |
|
[V DC] |
[V DC] |
[V DC] |
[mA] |
[W] |
[%] |
RYII012 |
12 |
8,4 |
1,2 |
19,3 |
620 |
±10 |
RYII024 |
24 |
16,8 |
2,4 |
10,2 |
2350 |
±10 |
RY210024 |
24 |
16,8 |
2,4 |
10,2 |
2350 |
±10 |
| UN = Rated Voltage, UAn = Operate Voltage, UAb = Release Voltage, IN = Rated Current, RN = Coil Resistance, Tol. = Tolerance of Coil Resistance; All Figures are Given for Coil without Preenergization at Ambient Temperature +20°C |
|
| Additional Products |
We can also supply on request (minimum order quantity 500 pieces, delivery time 12 weeks):
• relays with 5V, 6V and 48V rated voltage
• watertight relays |
|
|
