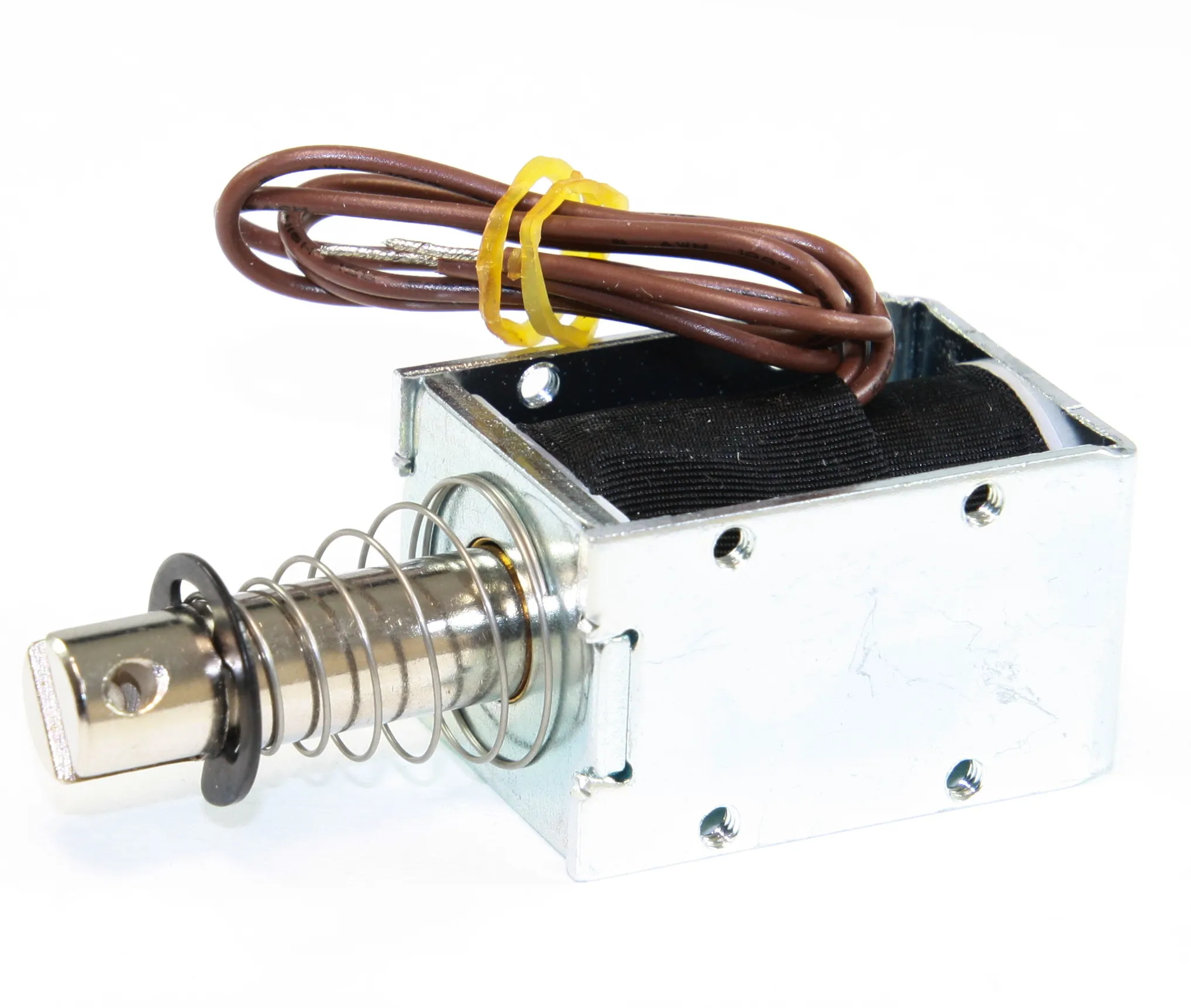

Solenoid Framed 2924b D -12V
Varenummer:
103-821
Varekode: ITS-LS2924BD-12
Vægt: 131 g
2 stk.
på lager
Gruppe: E4357
Solenoids
Series: ITS-LS
Framed Magnet
for 12V/24V
| Features |
| Framed Magnet with mounting holes Available as pull version or push version include recuperating spring Low weight because of open framed housing Open framed with closed brace Min. 200mm connecting lead |
 |
| Technical Specifications |
| Part Nr. | UN | IN | PN | FH | FA | FE |
| ITS-LS_ | [V DC] | [A] | [A] | [kg] | [kg] | [kg] |
| 1110B_-12 | 12 | 0,019 | 1,1 | 0,120 | 0,018 | 0,2 |
| 1110B_-24 | 24 | 0,046 | 1,1 | 0,120 | 0,018 | 0,2 |
| 2924B_-12 | 12 | 0,375 | 4,5 | 1,1 | 0,2 | 1,022 |
| 2924B_-24 | 24 | 0,187 | 4,5 | 1,1 | 0,2 | 1,022 |
| 3830B_-12 | 12 | 0,666 | 8 | 5,6 | 0,2 | 5,6 |
| 3830B_-24 | 24 | 0,333 | 8 | 5,6 | 0,2 | 5,6 |
| UN= Voltage, IN= Current, PN= Power at 100%ED, FH = Holding Force, FA = Start Force, FE = End Force | ||||||
| ||||||
| Dimensions and Weights |
| Part Nr. | xL | Weight Solenoid | Weight Ancher | Screw Thread |
| ITS-LS_ | [mm] | [g] | [g] | |
| 1110B_ | 21,3x11x10 | 10 | 2 | 2-2*M2 |
| 2924B_ | 40x29x24 | 122 | 22 | 2-4*M3*0,5 |
| 3830B_ | 64x38x30 | 363 | 71 | 2-4*M3*0,5 |
| ||||
| Coil Data |
| Part Nr. | EDRel | EDMax. | PMax. |
| ITS-LS_ | [%] | [sec] | [W] |
| 1110BZ-12 | 100 | ¥ | 1,1 |
| 1110BD-12 | 50 | 50 | 2,2 |
| 1110BZ-24 | 25 | 18 | 4,4 |
| 1110BD-24 | 10 | 2 | 11 |
| 2924BZ-12 | 100 | ¥ | 4,5 |
| 2924BD-12 | 50 | 140 | 9 |
| 2924BZ-24 | 25 | 50 | 18 |
| 2924BD-24 | 10 | 9 | 45 |
| 3830BZ-12 | 100 | ¥ | 8 |
| 3830BD-12 | 50 | 150 | 16 |
| 3830BZ-24 | 25 | 50 | 32 |
| 3830BD-24 | 10 | 9 | 80 |
| EDRel = Duty Cycle, EDMax. = Duty Cycle, Max., PMax. = Capaticy, Max. at 20C | |||
| |||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
| Various |
|
