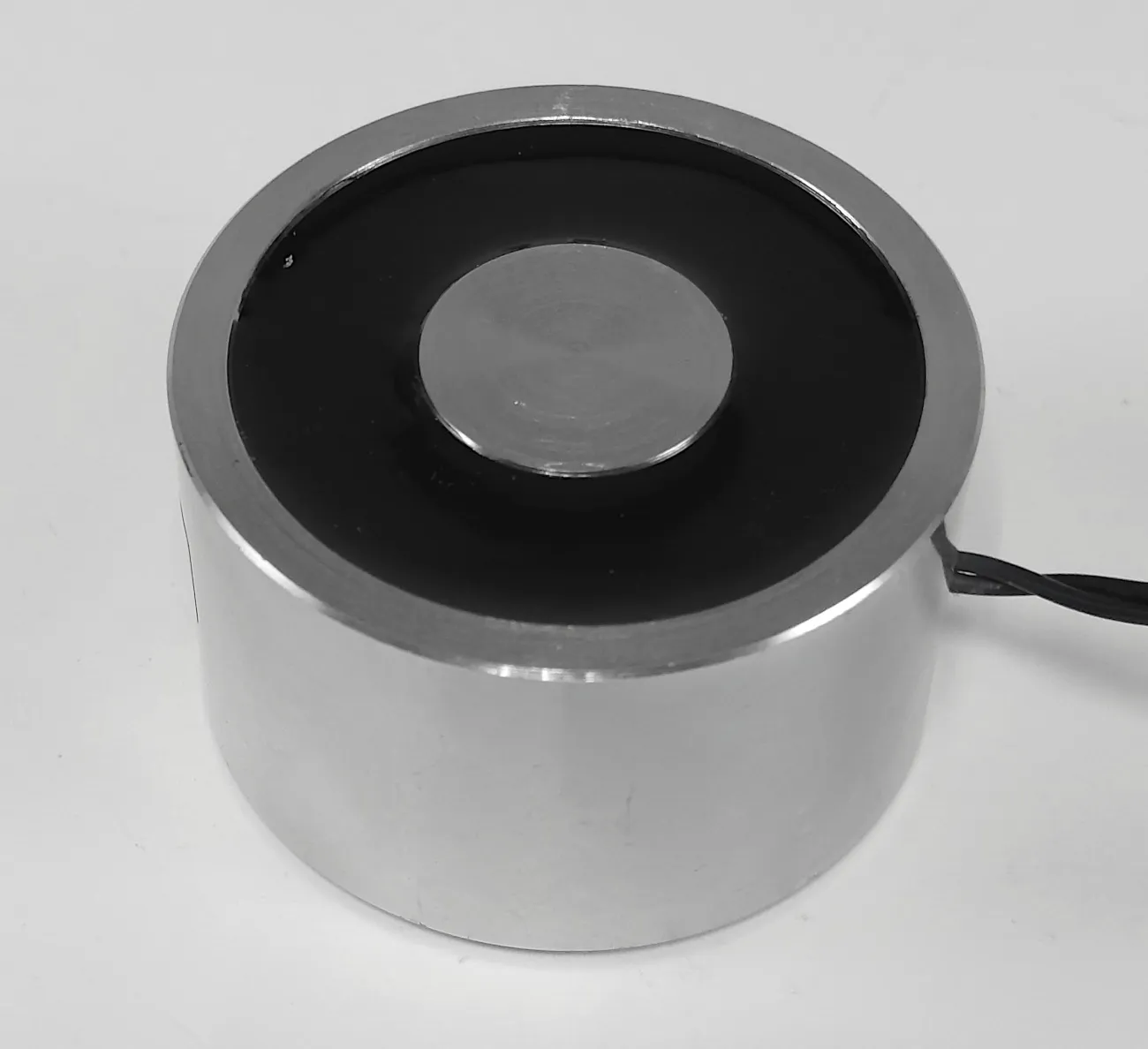

Holding Magnet 12V/11W
Varenummer:
103-802
Varekode: ITS-MS5030-12
Vægt: 345 g
2 stk.
på lager
Gruppe: E4351
Solenoids

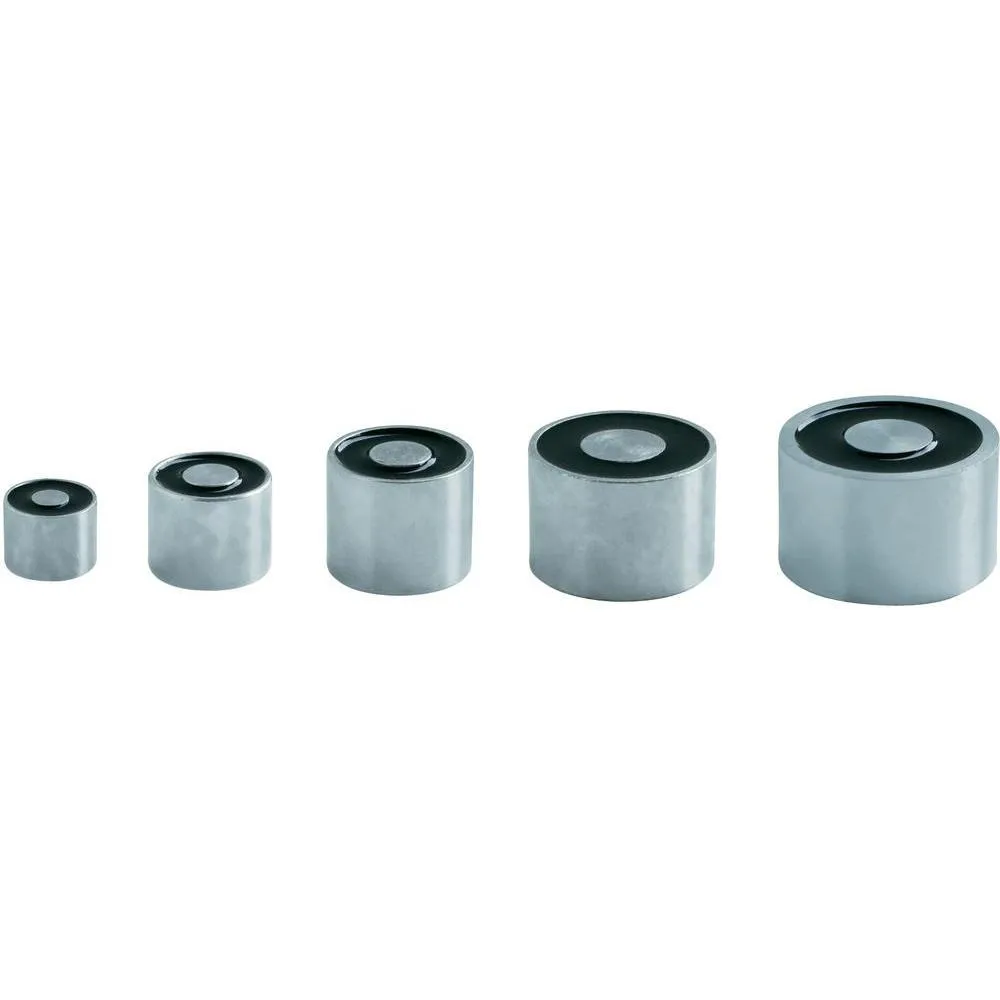

Series: ITS-MS
Encapsulated, Holding Magnets
for 12V/24V
| Features |
| • Housing with rear mounting holes • Fully encapsulated housing • Min. 200mm connecting lead • Mounting threat ITS-MD2015_/1335_: M3x0,5mm ITS-MD5030_: M4x0,7mm |
 |
| Technical Specifications |
| Part Nr. | UN | IN | PN | FH | ØxL | Weight | ITS-MS_ | [V DC] | [A] | [W] | [kg] | [mm] | [g] | 2015-12 | 12 | 0,200 | 2,5 | 2 | 20x15 | 25 | 2015-24 | 24 | 0,104 | 2,5 | 2 | 20x15 | 25 | 3025-12 | 12 | 0,317 | 3,8 | 10 | 30x25 | 130 | 3025-24 | 24 | 0,158 | 3,8 | 10 | 30x25 | 130 | 5030-12 | 12 | 0,667 | 8 | 40 | 50x30 | 350 | 5030-24 | 24 | 0,333 | 8 | 40 | 50x30 | 350 | |||||||
| UN = Voltage, IN = Current, PN = Power at 100%ED, FH = Typical Force | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Coil Data |
| Part Nr. | EDRel | EDMax. | PMax. | ITS-MS_ | [%] | [sec] | [W] | 2015_ | 100 | ¥ | 2,5 | 3025_ | 100 | ¥ | 3,8 | 5030_ | 100 | ¥ | 8 | ||||
| EDRel = Duty Cycle, EDMax. = Duty Cycle, Max., PMax. = Capaticy, Max. (20°C) | |||||||||||||||||||||||
|
|||||||||||||||||||||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
| Various |
|
