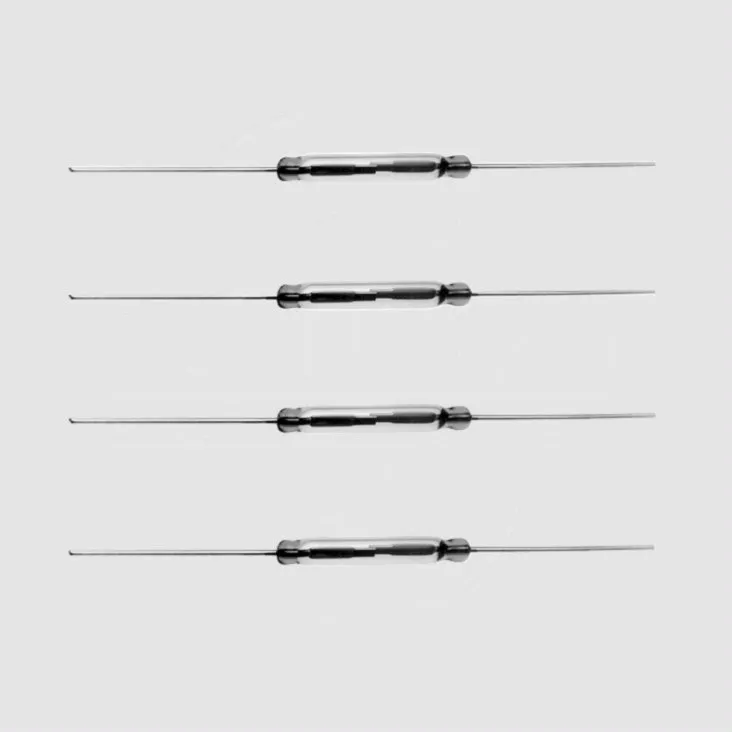

Reed Contact SPST 0,5A 40W AW20-30
Varenummer:
103-795
Varekode: KSK1A52-2030
Vægt: 0 g
27 stk.
på lager
Gruppe:
E4111
MEDER Reed Contacts
Series: KSK1
Contact: SPST-NO or SPDT
MEDER Reed Contacts
Series: KSK1
Contact: SPST-NO or SPDT
| Technical Specifications |
| Part Nr. | Type of Contact | US | IS | RK | tS | tAb |
| [V] | [A] | [mW] | [ms] | [ms] | ||
| KSK1A87-1520 | SPST | 200 | 0,5 | 150 | 0,6 | 0,1 |
| KSK1A87-2025 | SPST | 200 | 0,5 | 150 | 0,6 | 0,1 |
| KSK1A66-1020 | SPST | 200 | 0,5 | 150 | 0,5 | 0,1 |
| KSK1A66-2030 | SPST | 200 | 0,5 | 150 | 0,5 | 0,1 |
| KSK1A52-2030 | SPST | 250 | 0,5 | 200 | 1,0 | 0,1 |
| KSK1A52-3040 | SPST | 250 | 0,5 | 200 | 1,0 | 0,1 |
| KSK1A52-4050 | SPST | 250 | 0,5 | 200 | 1,0 | 0,1 |
| KSK1C90-1520 | SPDT | 175 | 0,5 | 150 | 0,7 | 1,5 |
| KSK1C90-2025 | SPDT | 175 | 0,5 | 150 | 0,7 | 1,5 |
| US = Switching Voltage, Max., IS = Switching Current, Max. (0,5V/10mA), RK = Contact Resistance, Max., tS = Switching Time incl. Bounce, tAb = Reset Time | ||||||
 | ||||||
| Part Nr. | PS | IT | RISO | UD | AE |
| [W] | [A] | [W] | [V DC] | [AW] | |
| KSK1A87-1520 | 10 | 0,5 | 109 | 230 | 15...20 |
| KSK1A87-2025 | 10 | 0,5 | 109 | 230 | 20...25 |
| KSK1A66-1020 | 10 | 1,25 | 1010 | 225 | 10...20 |
| KSK1A66-2030 | 10 | 1,25 | 1010 | 225 | 20...30 |
| KSK1A52-2030 | 50 | 2,5 | 1010 | 600 | 20...30 |
| KSK1A52-3040 | 50 | 2,5 | 1010 | 600 | 30...40 |
| KSK1A52-4050 | 50 | 2,5 | 1010 | 600 | 40...50 |
| KSK1C90-1520 | 10 | 1,0 | 109 | 200 | 15...20 |
| KSK1C90-2025 | 10 | 1,0 | 109 | 200 | 20...25 |
| PS = Switching Capacity, Max., IT = Carry Current, Max., RISO = Insulation Resistance, UD = Breakdown Voltage, Min., AE = Initial Excitation | |||||
| |||||
| Note |
| You will find suitable operating magnets in product groups E4311 and E4321. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.meder.com |
|
Inkl. moms
Kr. 20,68
- v/10 – Kr. 16,08
- v/25 – Kr. 13,98
- v/100 – Kr. 12,81
- v/1000 – Kr. 11,89
