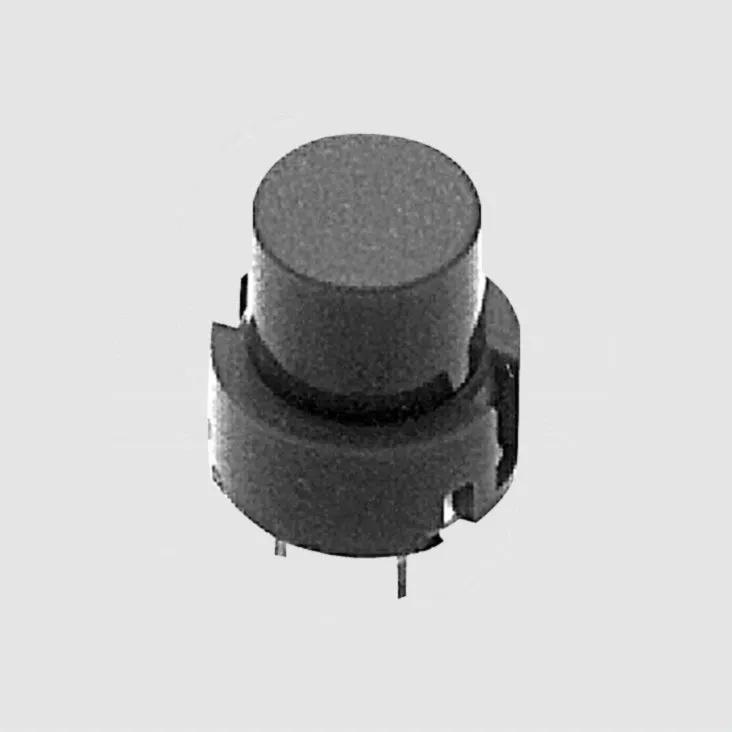

Keyswitch Round Blue
Varenummer:
103-787
Varekode: D6R60F1LFS-BL
Vægt: 1 g
220 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
- SWITCH, SPNO, ROUND, BLUE
- Operating Force: 1.3N
- Contact Voltage DC Nom: 32V
- Contact Current Max: 100mA
- Actuation Type: Round
- Switch Terminals: Solder
- SVHC: No SVHC (20-Jun-2013)
- Actuator / Cap Colour: Blue
- Actuator Style: Round
- Colour: Blue
- Contact Configuration: SPST-NO
- Contact Current Rating: 100mA
- Contact Resistance: 100mohm

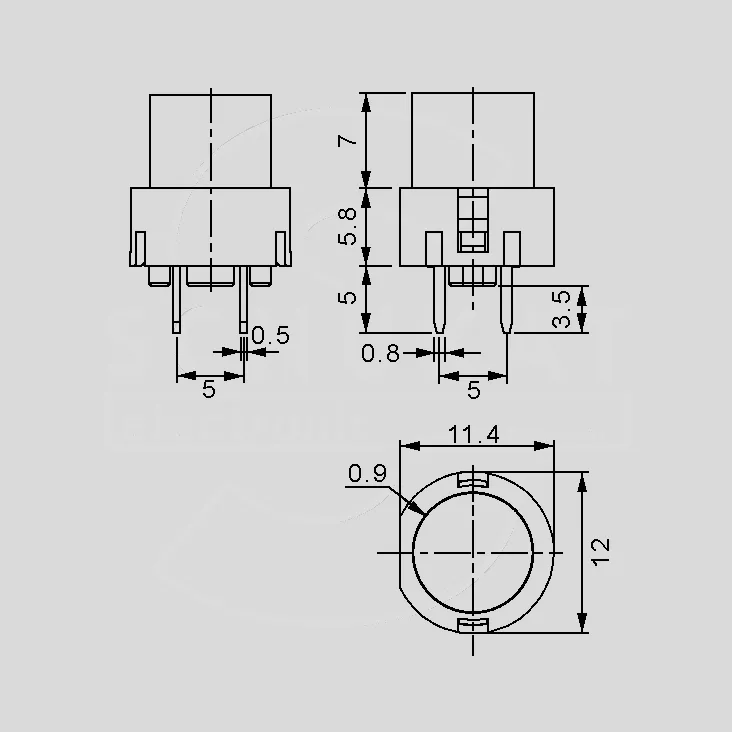

- External Diameter: 12mm
- External Length / Height: 14.5mm
- External Width: 11.4mm
- Insulation Resistance: 100000Mohm
- Lead Spacing: 5mm
- No. of Mechanical Operations: 250000
- Operating Temperature Max: 85°C
- Operating Temperature Min: -20°C
- Operating Time: 3ms
- Row Pitch: 5mm
- Series: D6
- Stroke Length Max: 0.8mm
- Switch Operation: Off-(On)
