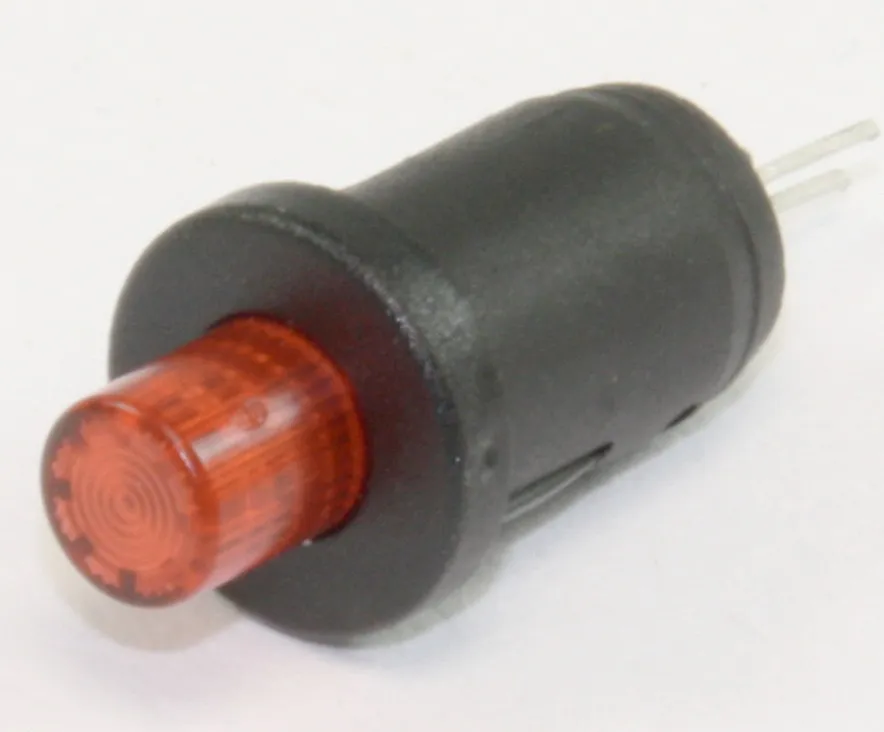

Trykafbryder 1-pol ON/OFF LED Red
Varenummer:
103-769
Varekode: LDS11RT
Vægt: 1 g
30 stk.
på lager
Gruppe:
E3159
SCHURTER Pushbutton Switches and Momentary Switches
Series: LDT, LDS
Contact: SPST-NO
SCHURTER Pushbutton Switches and Momentary Switches
Series: LDT, LDS
Contact: SPST-NO
| Features |
| Single pole input pushbutton switch or momentary switch with one SPST contact |
 |
| Selection Table |
| Part Nr. | Function | Pushbutton |
| LDT10RT | Momentary Switch | Unilluminated Red |
| LDS11RT | Switch | Illuminated Red |
| LDT11RT | Momentary Switch | Illuminated Red |
| LDT12GN | Momentary Switch | Illuminated Green |
| LDS12GN | Switch | Illuminated Green |
| LDT/LDS-9242 | Mounting Ring | - |
| ||
| Technical Specifications |
| |
| Material | |
| Socket: | Thermoplastic PES |
| Pushbutton: | Thermoplastic PC |
| Contacts: | CuZn 37/5µm Au |
| Switching Voltage, Max.: | 60V AC/50V DC |
| Switching Voltage, Min.: | 100mV AC/DC |
| Switching Current, Max.: | 0,2A |
| Switching Capacity, Max.: | 1,2W |
| Contact Resistance: | 20 mW |
| Bounce Time, Typ.: | 0,5ms |
| Operating Force LDT_: | 1,5N ±0,3N |
| Operating Path LDT_: | 1,35mm ±0,2mm |
| Final Operating Path LDT_: | 2,9mm ±0,1mm |
| Stop Strength: | >50N |
| Operating Life/Cycles: | 100.000 |
| Temperature Range | |
| Without LED: | -25...+85C |
| With LED: | -25...+60C |
| Solderability: | 235C/2s |
| Protection Class: | IP40 |
| |
| LED Data |
| LED | WL | VA | LI | @ IF | UF |
| [mm] | [] | [mcd] | [m10A] | [V] | |
| Red | 635 | 50 | 11,2...28 | 10 | 2,0 |
| Green | 565 | 50 | 18...45 | 10 | 2,0 |
| WL = Peak Emission Wavelength, VA = Viewing Angle, LI = Luminous Intensity, IF = Forward Current, UF = Forward Voltage | |||||
| |||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces Articles in bold print in stock, other articles of 100 pieces upwards available on request, delivery time approx. 5 weeks. |
|
| Manufacturer |
 |
| http://www.schurter.de |
|
