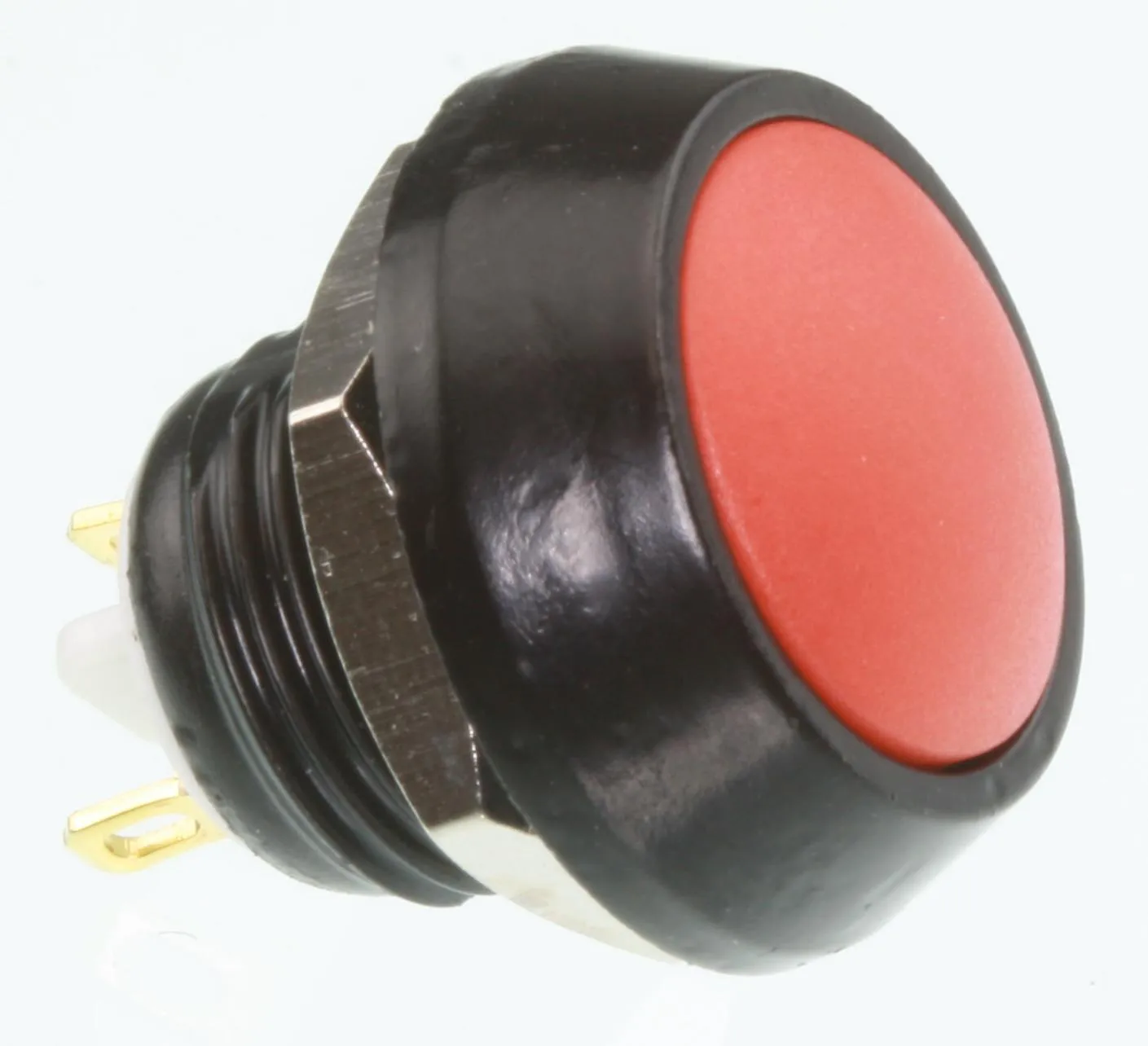

Miniature Momentary Switch2A IP65 Orange
Varenummer:
103-766
Varekode: GQ12IP65-OR
Vægt: 8 g
9 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 351 stk. kan skaffes onsdag d. 28/10
Vis lignende produkter i kategorien "IP65 (Støv og stænktæt) Ø12"
• Single pole input pushbutton momentary switch with SPST contact
• Solder terminals
• Domed profile
• IP65 rated
• Secure tactile input-feedback
• Stainless steel or Zn Al Alloy body with coloured PBT actuator in black, red, yellow, orange, green, blue or white
|
 |
|
|
|
Material Shell:
|
Zn Al
|
Shell GQ12IP65-B:
|
Stainless Steel
|
Material Actuator:
|
PBT
|
Actuator GQ12IP65-B:
|
Stainless Steel
|
Contacts:
|
CuZn 37/2,5μm Au
|
Terminals:
|
Screw Terminals
|

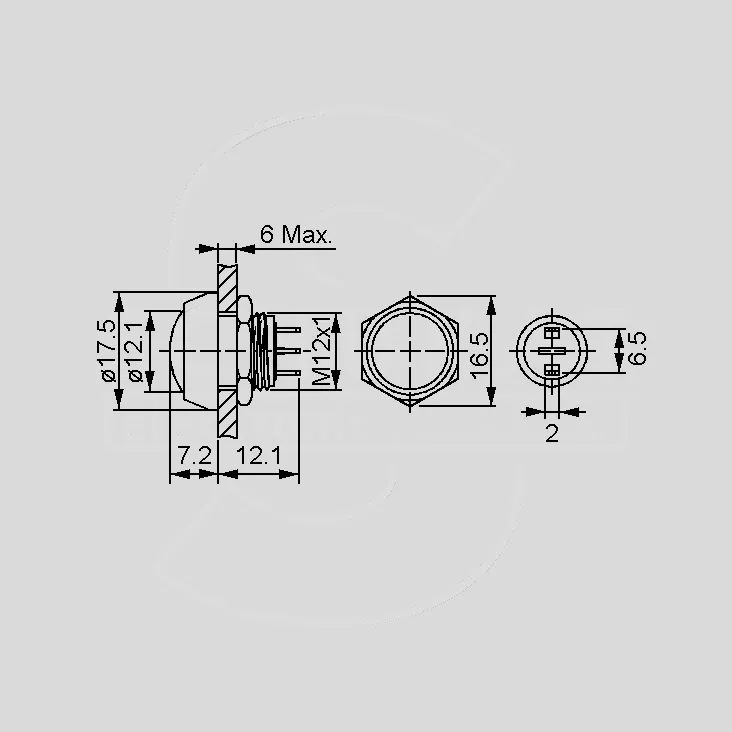

Housing Cut-out:
|
Ø12mm
|
Wall Strength:
|
1...6mm
|
Switching Voltage, Max.:
|
36V DC
|
Switching Current, Max.:
|
2A
|
Contact Resistance:
|
£50mW
|
Insulation Resistance:
|
³1000mW
|
Operating Force:
|
5,5N
|
Operating Life/Cycles, Mechanical:
|
105
|
Operating Life/Cycles, Electrical:
|
204
|
Temperature Range:
|
-20...+70°C
|
Type of Protection:
|
IP65
|
|
| Manufacturer |
Various
|
|
|
