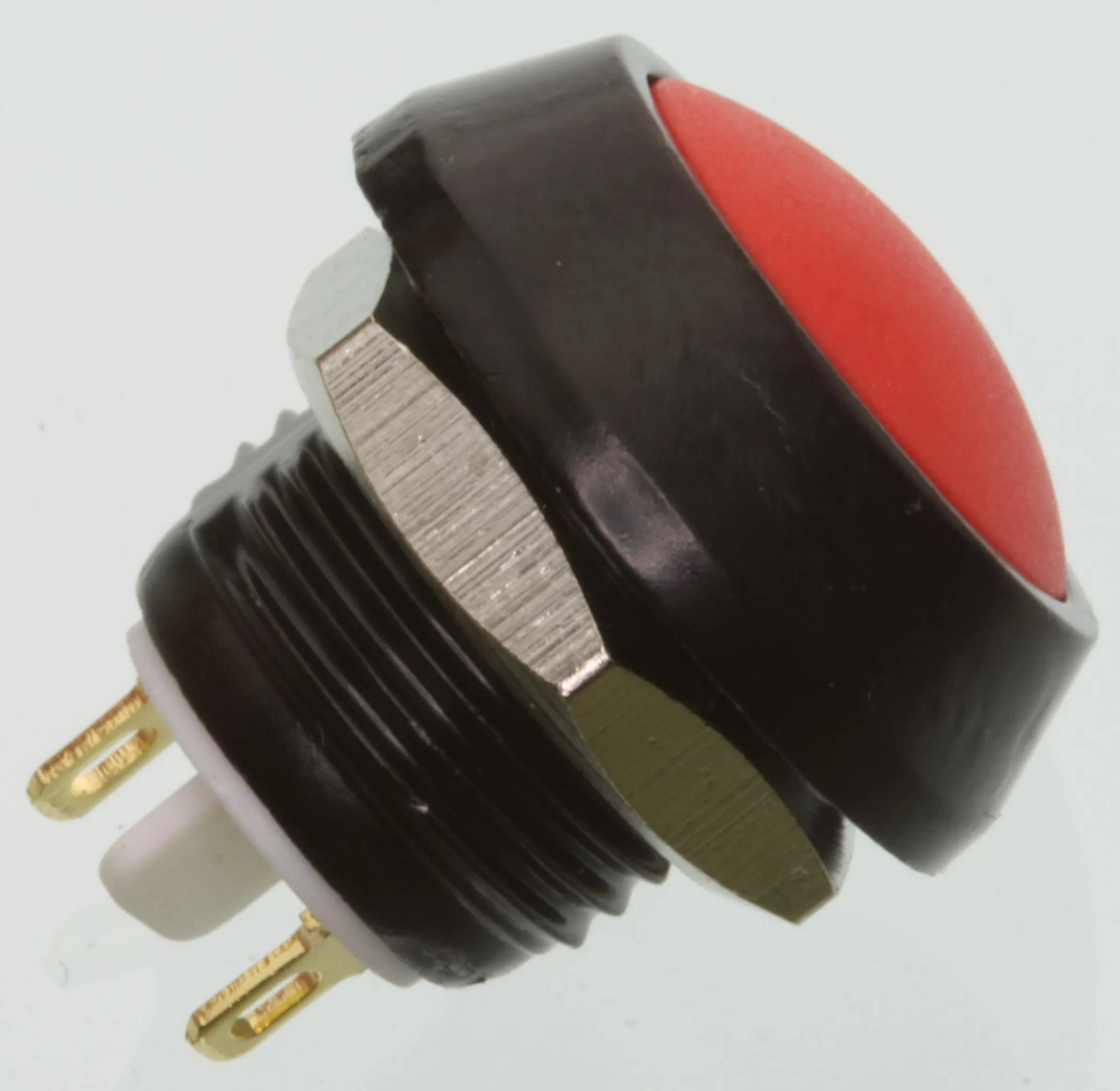

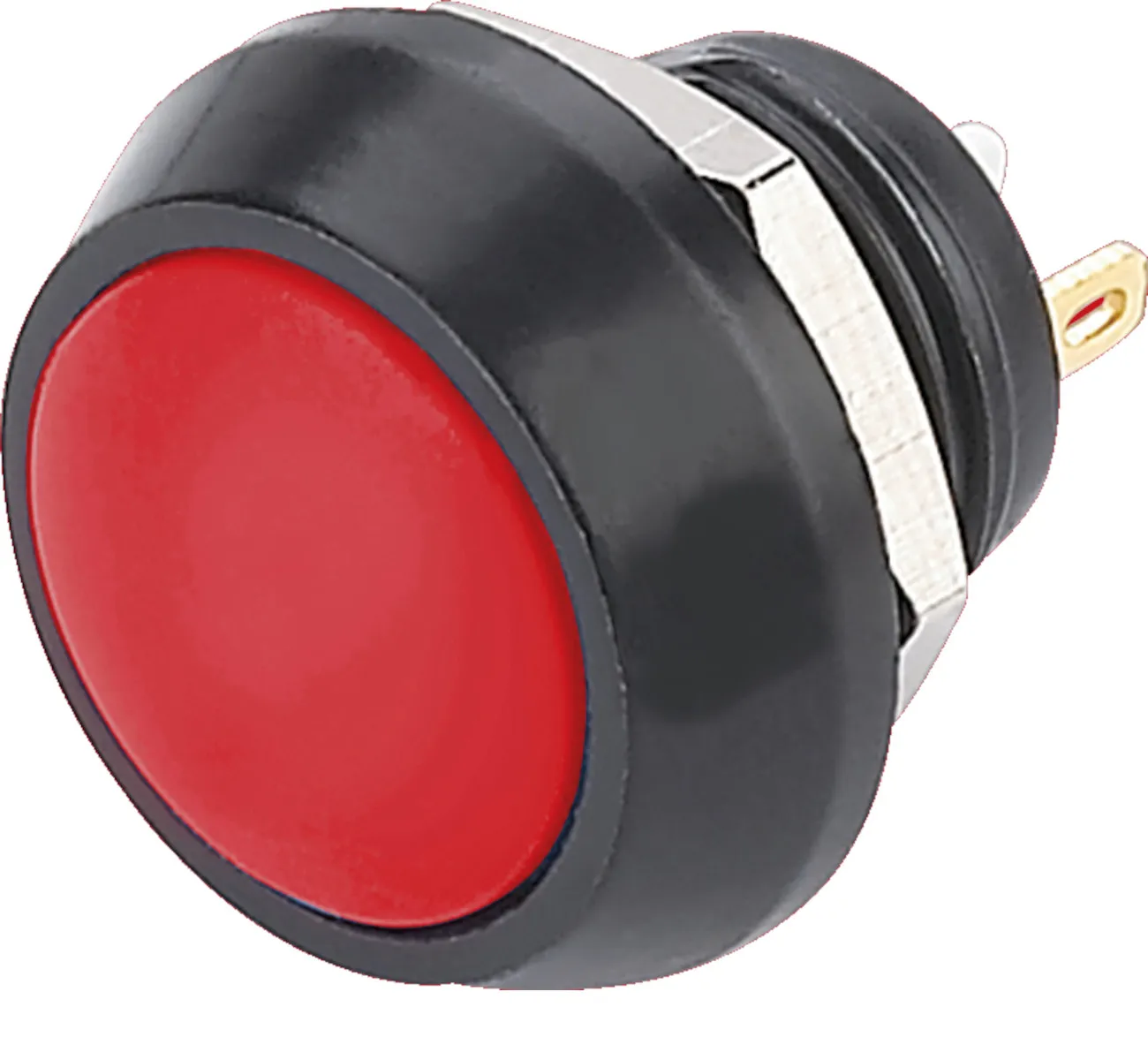

Miniature Momentary Switch 2A IP65 Red
Varenummer:
103-761
Varekode: GQ12IP65-RT
Vægt: 8 g
52 stk.
på lager
Gruppe:
E3137
Pushbutton Momentary Switches
Series: GQ12
Protection Class: IP65
Contact: SPST-NO
Panel Cut-out: 12mm
Pushbutton Momentary Switches
Series: GQ12
Protection Class: IP65
Contact: SPST-NO
Panel Cut-out: 12mm
| Features |
| Single pole input pushbutton momentary switch with SPST-NO contact Solder terminals Domed profile Protection class IP65 Secure tactile input-feedback Stainless steel or Zn Al Alloy body with coloured PBT actuator in black, red, yellow, orange, green, blue or white |
 |
| Technical Specifications |
| |
| Material | |
| Shell: | Zn Al |
| Shell GQ12IP65-B: | Stainless Steel |
| Actuator: | PBT |
| Actuator GQ12IP65-B: | Stainless Steel |
| Contacts: | CuZn 37/2,5µm Au |
| Panel Cut-out: | 12mm |
| Wall Strength: | 1...5mm |
| Switching Voltage, Max.: | 36V DC |
| Switching Current, Max.: | 2A |
| Contact Resistance: | £50mW |
| Insulation Resistance: | ³1000mW |
| Operating Force: | 5,5N |
| Operating Life/Cycles, Mechanical: | 105 |
| Operating Life/Cycles, Electrical: | 204 |
| Temperature Range: | -20...+70C |
| Protection Class: | IP65 |
| |
| Approvals |
  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
| Various |
|
Produktfiler
