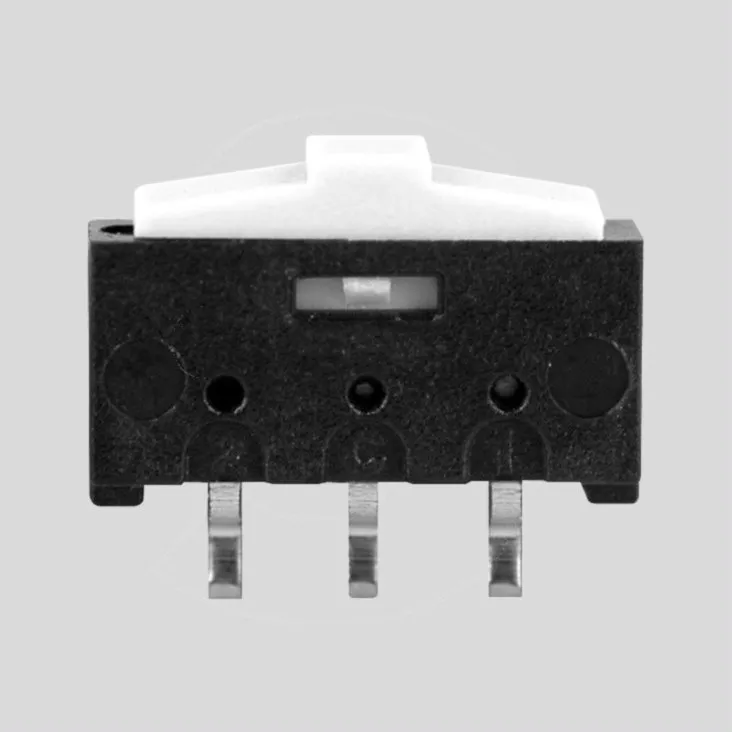

Skydeomskifter SMD Sub, SPDT Horizontal
Varenummer:
103-708
Varekode: ESP4020
Vægt: 0 g
0 stk.
på lager
Ved bestilling nu, får vi dem hjem torsdag d. 22/10
Skydeomskifter SMD Sub, SPDT Horizontal
Gruppe: E2812
ECE SMD Slide Switches
Series: ESP
Pitch: 2,54mm
| Features |
| • All plastic parts flame-resistant in accordance with UL94V-0 • Reflow soldering |
 |
| Electrical Specifications |
|
|||||||||||||
| Switching Capacity: | 0,5A, 12V DC/1mA, 10mV, Min. | Contact Resistance, Max.: | 30mW | Dielectric Strength: | 2mA, 500V DC/1min. | Capacitance, Max.: | 1,5pF | Insulation Resistance (500V DC): | 10000MW/1min. | Operations: | 10000 | ||
|
|||||||||||||
| Technical Specifications |
|
|||||||||||||
| Operating Temperature: | -25...+70°C | Soldering Temperature: | 240°C/20s | Soldering Temperature, Max.: | 260°C | Vibration Test: | Normal Operation 10...60Hz | 1,5mm Movement | Corrosion Test (Salt Solution): | 35°C, 5%/24h | |||
|
|||||||||||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
| ECE http://www.ece.com.tw |
|
