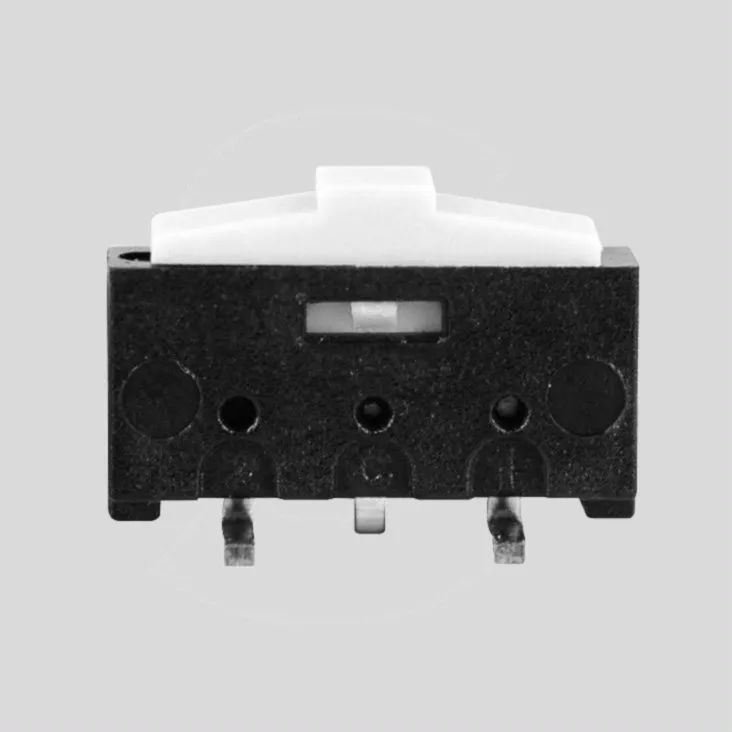

Skydeomskifter - SMD 1 pol - 2 stillinger
Varenummer:
103-707
Varekode: ESP3020
Vægt: 0 g
0 stk.
på lager
Ved bestilling nu, får vi dem hjem torsdag d. 22/10
| Features |
| • All plastic parts flame-resistant in accordance with UL94V-0 • Reflow soldering |
 |
| Electrical Specifications |
|
|
| Switching Capacity: | 0,5A, 12V DC/1mA, 10mV, Min. |
| Contact Resistance, Max.: | 50mOhm |
| Dielectric Strength: | 2mA, 500V DC/1min. |
| Capacitance, Max.: | 1,5pF |
| Insulation Resistance (500V DC): | 1000MOhm/1min. |
| Operations: | 5000 |
|
|
| Technical Specifications |
|
|
| Operating Temperature: | -25...+70°C |
| Soldering Temperature: | 230°C/3s |
| Soldering Temperature, Max.: | 260°C |
| Vibration Test: | Normal Operation 10...60Hz |
| 1,5mm Movement | |
| Corrosion Test (Salt Solution): | 35°C, 5%/24h |
|
|
