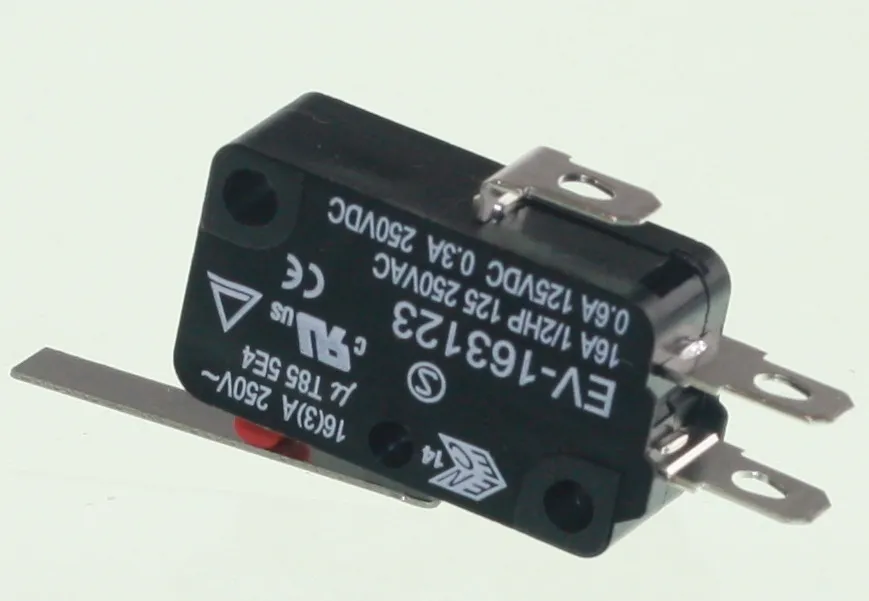

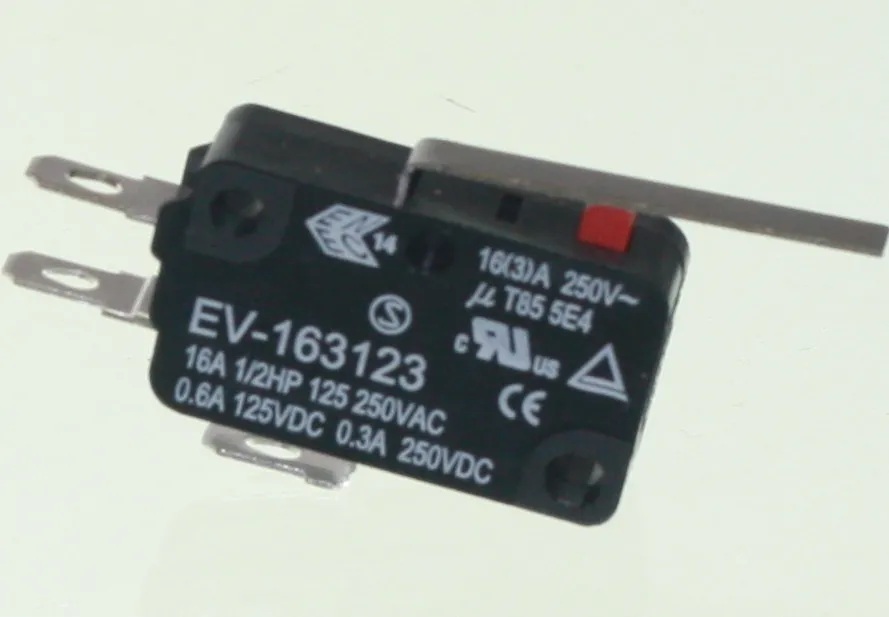

Microswitch Lever 250V 16A 400gf
Varenummer:
103-704
Varekode: EV163123
Vægt: 8 g
65 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 950 stk. kan skaffes søndag d. 1/11
|
Manufacturer
|
ECE | |
|
Type of switch
|
microswitch SNAP ACTION | |
|
AC contacts rating @R(at resistive load)
at resistive load
|
16A / 250V AC | |
|
DC contacts rating @R(at resistive load)
at resistive load
|
0.6A / 125V DC | |
|
Switches features
|
with lever | |
|
Contacts configuration
 |
SPDT | |
|
Max. contact resistance:
|
50mΩ | |
|
Switching method(the position in bracket indicates momentary position.)
The position in bracket indicates momentary position.
|
ON-(ON) | |
|
Number of positions
|
2 | |
|
Manufacturer series
|
EV | |
|
Leads
|
connectors 4,75x0,5mm | |
|

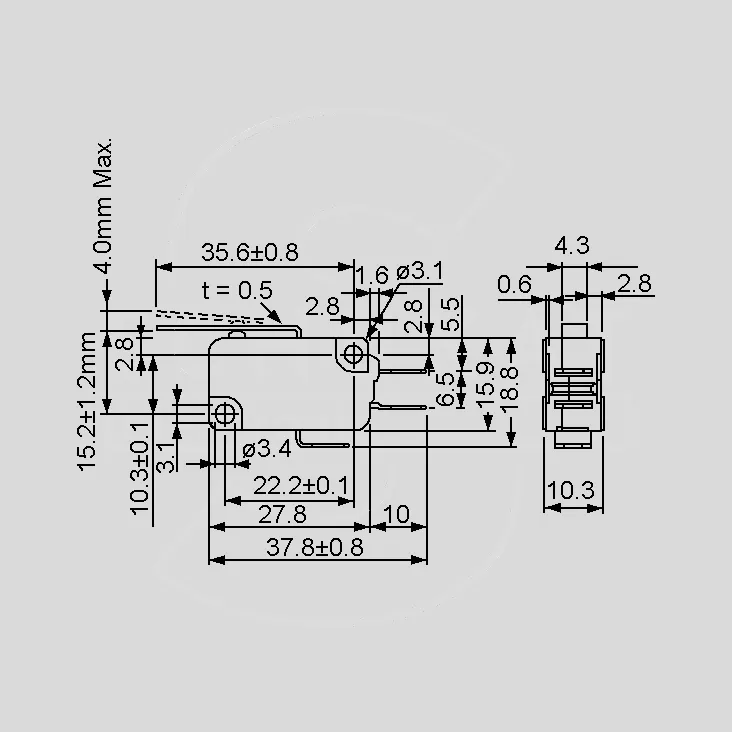

Body dimensions
|
37.8x10.3x15.9mm | |
|
Operating temperature
|
-25...85°C | |
|
Operating Force
|
3.92N | |
|
Min. insulation resistance
|
0.1GΩ | |
|
Stable positions number
|
1 |
EV-16 3123
Micro switch drives af et stempel, løftestang eller rulle
• lang levetid gennem præcise skift mekanisme
• Tilslutning via fladstik 4,8 mm
• høj nuværende kapacitet 16A
• Switching kapacitet: 16A, 250V AC / 0.6A, 125V DC
• Driftstemperatur: -25 ... + 80 ° C
• EV-16 3123: Lever
