Fuse 5x20 Medium Time-lag 0,125A

Varenummer: 103-537
Varekode: FSM00,125
Vægt: 0 g
43 stk. på lager
Bestil nu for afsendelse mandag d. 28/9
Yderligere kan skaffes søndag d. 4/10
Vis lignende produkter i kategorien "M = Middeltræg"

Gruppe: E1435
ESKA Fuse Links
Series: 521000
DIN41571-2
Characteristic: Medium Time-Lag
Rated Voltage: 250V
Housing: 5x20mm

Features
• 32mA up to 1,25A: glass tube, transparent
• 1,6A up to 16A: glass tube, with extinguishing agent
• Contact caps: brass, nickel plated
Technical Specifications

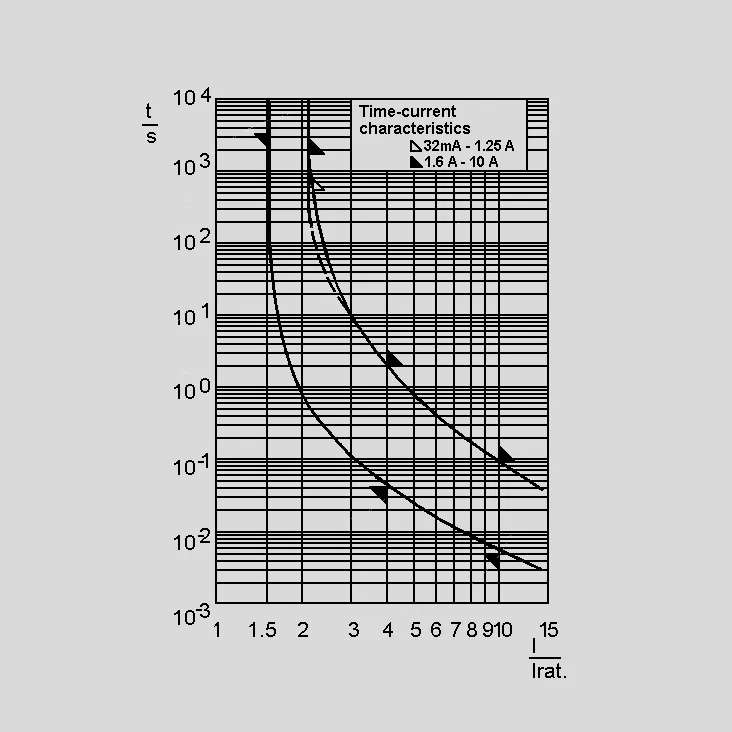

    Rated Voltage: 250V Pre-arcing time limits 32mA...1,25A 1,5xIN: 1h 2,1xIN: 10min. 4xIN: 40ms...2000ms 10xIN: 5ms...90ms Pre-arcing time limit 1,6A...10A 1,5xIN: 1h 2,1xIN: 30min. 4xIN: 40ms...2000ms 10xIN: 5ms...90ms
          Part Nr. Rated RBC Voltage Melting   Current   Drop Integral   [A] [A AC] [mV] [A2s] ESKA521006 0,08 80 520 0,0401 ESKA521009 0,16 80 370 0,0343 ESKA521010 0,2 80 320 0,0160 ESKA521011 0,25 80 280 0,0250 ESKA521012 0,315 80 250 0,0496 ESKA521014 0,5 80 210 0,17 ESKA521015 0,63 80 190 0,40 ESKA521016 0,8 80 170 0,84 ESKA521017 1,0 80 160 6,00 ESKA521018 1,25 80 160 2,50 ESKA521558 1,4   on Request   ESKA521019 1,6 1000 160 6,96 ESKA521020 2,0 1000 160 6,00 ESKA521021 2,5 1000 160 8,00 ESKA521022 3,15 1000 160 15,68 ESKA521023 4,0 1000 160 25,28 ESKA521024 5,0 1000 150 47,00 ESKA521025 6,3 1000 140 75,41 ESKA521026 8,0 300 140 152,32 ESKA521027 10,0 300 120 234,00 ESKA521030 16,0 300 120 706,56
RBC = Rated Breaking Capacity
Note
You will find suitable fuse holders starting at product group E1810.
Norms
DIN41571-2
Terms of Delivery
Minimum order quantity: 1 PKU = 10 pieces
Manufacturer
http://www.eska-fuses.de
Inkl. moms
Kr. 6,50
  • v/10 – Kr. 4,50
  • v/30 – Kr. 4,00
  • v/100 – Kr. 3,50
