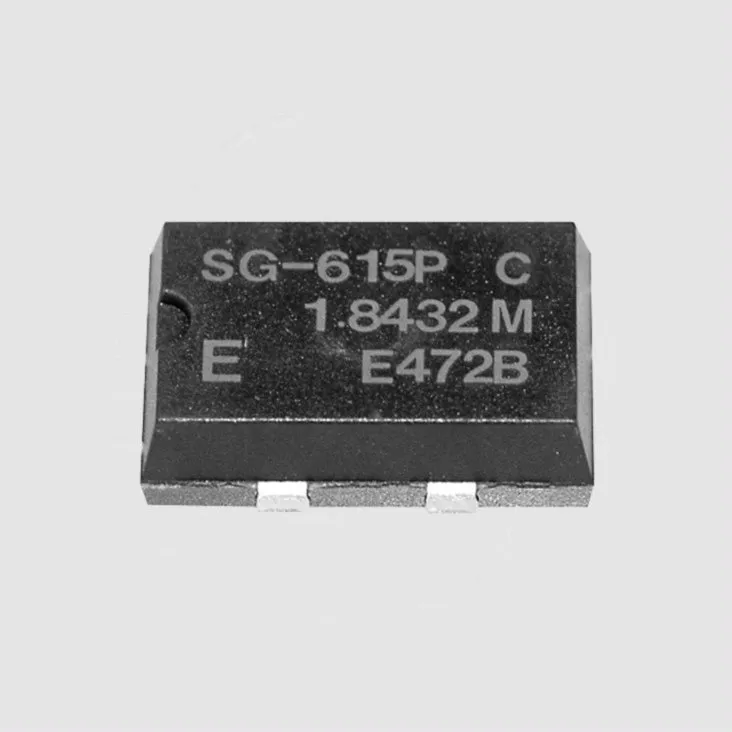

SMD Crystal Oscillator 50,000000 MHz
Varenummer:
103-340
Varekode: SG615PHC-50
0 stk.
på lager
| Features |
| • Suitable for CMOS and TTL • High reliability due to cylindrical AT crystal • Low power consumption |
 |
| Technical Specifications |
| |
| Frequency Range: | 1,8432...50MHz |
| Frequency Stability: | ±100ppm |
| Operating Voltage: | 5±0,5VDD |
| Maximum Voltage: | -0,3...+7VDD-GND |
| Output Voltage | |
| VOH1), Min.: | VDD- 0,4V |
| VOL2) , Max.: | 0,4V |
| Output Current | |
| IOH1): | -0,4mA |
| IOL2): | |
| SG-615P: | 16mA |
| SG-615PH: | 4mA |
| Operating Temperature: | -20...+70°C |
| Storage Temperature: | -55...+125°C |
| Aging, Max.: | 5ppm/Year |
| Solder Temperature, Max.: | £260°C/10s |
| Shock Resistance: | ±20ppm |
| Suitable for: | CMOS, TTL |
| 1) VOH, IOH = "1"-Level, 2) VOL, IOL = "0"-Level | |
| |
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.epson-electronics.de |
|
